Well Pod 3 (4-Pack)
Well Pod 3 (4-Pack)
Click to open expanded view

Well Pod 3 (4-Pack)

SKUWELLPOD3X4 UPC781462223885

Sale price
$5,093.50
Regular price
$5,744.50
You save
11%
Well Pod 3 (4-Pack)

Well Pod 3 (4-Pack)

$5,093.50
$5,744.50

At a Glance

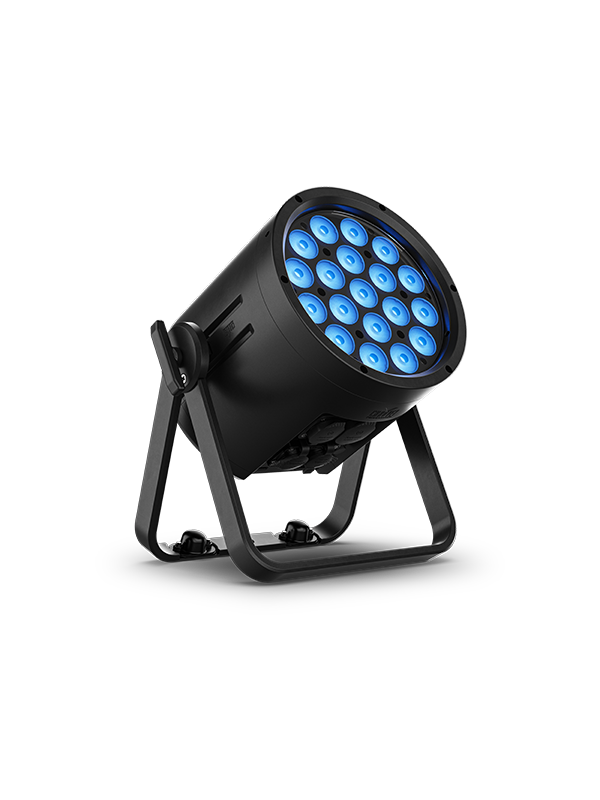

  • A fully realized kit of (4) Battery operated black IP65 rated par style fixture with (19) RGB Warm White LEDs and a beam angle of 12.7 degrees

  • Battery run time selections of 5, 8, 12, and 18 hours of operation at full output

  • Built in battery charger allows fixture to operate while charging

  • Built in IP65 5 pin DMX in/out allows for wired data

  • Built in Seetronic IP65 PowerKon input/output

  • Control over DMX, CRMX, RDM, or RF

  • Easy connection to WELL CONNECT box and CHAUVET CONNECT for app control

  • USB-C port for convenient software updates

  • Removable split yoke for both hanging and floor standing

  • Pressure equalizing M6 Gore valve

  • Built in safety cable attachment point

  • Easy to read OLED display

  • Built in theft alarm (audio and visual notification)

  • Built in PWM Adjustment

  • Included RF remote

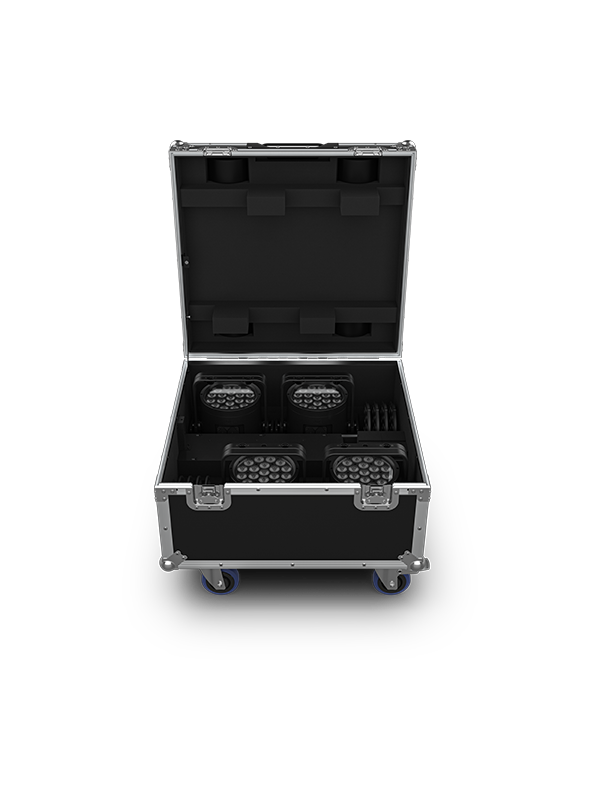

  • Included 4 pack charging case

Specifications

Optical

  • Light Source: 19 LEDs (RGBWW), 13.4W, (960mA) 50,000 hours life
  • Color Temperature (range): 2800 to 6500 K
  • Beam Angle: 12.7°
  • Field Angle: 25.4°
  • Cutoff Angle: 47.2°
  • Lumens: 3557 lm (AC power)
  • Illuminance: 1692 lux @ 5 m (AC power)
  • Lumens: 1994 lm (OFF battery setting)
  • Illuminance: 946 lux @ 5 m (OFF battery setting)
  • Lumens: 2177 lm (5-hour battery setting)
  • Illuminance: 1033 lux @ 5 m (5-hour battery setting)
  • Lumens: 1379 lm (8-hour battery setting)
  • Illuminance: 655 lux @ 5 m (8-hour battery setting)
  • Lumens: 845 lm (12-hour battery setting)
  • Illuminance: 398 lux @ 5 m (12-hour battery setting)
  • Lumens: 555 lm (18-hour battery setting)
  • Illuminance: 261 lux @ 5 m (18-hour battery setting)
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz


Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 1 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No


Construction / Physical

  • Dimensions: 9.76 x 7 x 10.86 in (248 x 178 x 276 mm)
  • Dimensions (w/o bracket): 9.76 x 7 x 7 in (248 x 178 x 178 mm)
  • Dimensions case: 27 x 25.6 x 15 in (685 x 650 x 380 mm)
  • Weight: 11.2 lbs (5.1 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast


Connections

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input (fixture and charging case): Seetronic Powerkon IP65
  • Power Output(fixture and charging case): Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB-C


Control

  • Control Protocol: RDM, CRMX, NFC, RF
  • DMX Channels: 4, 8, or 13
  • Modes/Personalities: 3 personalities (4Ch, 8Ch, 13Ch)
  • Wireless WDMX “G” Compatibility: G4S
  • Wireless Lumen Radio Compatibility: CRMX


Electrical

  • Single Unit
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 16 units @ 120 V; 27 units @ 208 V; 30 units @ 230 V;
  • Power and Current: 79 W, 0.74 A @ 120 V, 60 Hz
  • Power and Current: 56 W, 0.43 A @ 208 V, 60 Hz
  • Power and Current: 56 W, 0.39 A @ 230 V, 50 Hz
  • 4 Pack Case
  • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;
  • Power and Current: 306 W, 4.11 A @ 120 V, 60 Hz
  • Power and Current: 306 W, 2.37 A @ 208 V, 60 Hz
  • Power and Current: 305 W, 2.2 A @ 230 V, 50 Hz
  • 4 Pack case fuse: T5A, 250V


Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 2.53 hours
  • Battery Life: 3hr, 5hr, 8hr, 12hr
  • Battery Power: 25.9V, 6.6 Ah


Certifications / Qualifications

  • CE, UKCA, FCC, ROHS
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)


What's Included

  • (4) WELL POD 3
  • (1) Charging case
  • (4) Omega brackets
  • (4) Detachable split yokes
  • (1) RF controller
  • (1) Quick Reference Guide
