The Light Source
TC Clamp, White
TC Clamp, White
SKU:TCW
Regular price
$48.91 USD
Regular price
Sale price
$48.91 USD
Unit price
per
Couldn't load pickup availability

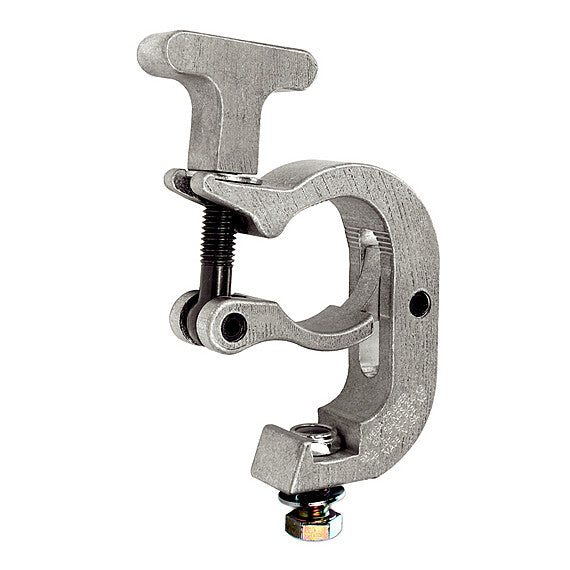

The TC Clamp will fasten from 2" OD to 1.5" OD tube. The TC Clamp has a 2-1/2" T-handle so no tools are required to fasten to the pipe. 1.25" x 1/2"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load. Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick. Safe Vertical Working Load 450 Pounds, (200 KG). Weight is 1.22 pounds (.55 KG)
- Minimum Size
- 1.5" OD tube, 1.25" pipe, 1.66" OD pipe
- Maximum Size
- 2" OD truss tube,1.5" pipe, 1.90" OD
- Working Load Limit
- 450 Pounds
- Hardware
- 1.25" x 1/2" - 13 TPI Grade 8 fastener with Nylock nut. 1" Belleville spring washer.
- Dimensions
- 4 5/8" tall x 4" wide x 1 3/16" thick
- Weight
- 1.25 lbs.
- Case Quantities
- 24
