Strike V
Click to open expanded view

Strike V

SKUSTRIKEV UPC781462229856

Sale price
$3,520
Regular price
$3,971
You save
11%
Strike V

Strike V

$3,520
$3,971

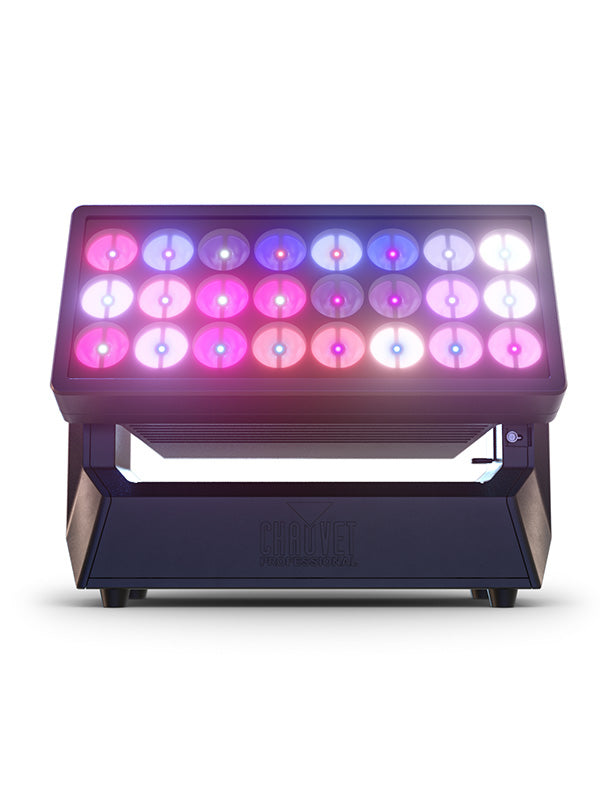

Our newest STRIKE design introduces dynamic dual-layer pixel effects with a punchy flair that brings totally new and unique looks to our tour-proven STRIKE family of IP65-rated strobes and blinders. STRIKE V features dual LED diodes, under a variable electronic frost plate that can change beam angles instantly at the press of a button, and together offer fresh new multicolor creative possibilities. Advanced eye-candy effects, vibrant color washes, and stunning strobe capabilities from a motorized 180° tilting strobe/wash hybrid designed for powerful performance in the most demanding applications and conditions.

Specifications

Optical

  • Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy
  • Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy
  • Beam Angle (Combine): 9.9°
  • Beam Angle (Dot): 105.7°
  • Beam Angle (Cell): 9.9°
  • Beam Angle (w/E-Frost Combine): 50.3°
  • Beam Angle (w/E-Frost Dot): 103.1°
  • Beam Angle (w/E-Frost Cell): 46.8°
  • Field Angle (Combine): 17.6°
  • Field Angle (Top Plate): 153.1°
  • Field Angle (Cell): 17.5°
  • Field Angle (w/E-Frost Combine): 125°
  • Field Angle (w/E-Frost Dot): 155.6°
  • Field Angle (w/E-Frost Cell): 117.2°
  • Lumens (Combine): 19,589
  • Lumens (Dot): 1,912
  • Lumens (Cell): 17,127
  • Lumens (w/E-Frost Combine): 13,406
  • Lumens (w/E-Frost Dot): 1,633
  • Lumens (w/E-Frost Cell): 15,769
  • Illuminance (Combine): 16,779 lux @ 5 m
  • Illuminance (Dot): 29 lux @ 5 m
  • Illuminance (Cell): 16,789 lux @ 5 m
  • Illuminance (w/E-Frost Combine): 539 lux @ 5 m
  • Illuminance (w/E-Frost Dot): 26 lux @ 5 m
  • Illuminance (w/E-Frost Cell): 536 lux @ 5 m
  • Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz


Dynamic Effects

  • Tilt: 180°
  • Tilt Ranges: 0° to 180°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes


Construction / Physical

  • Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
  • Weight: 36 lb (16.3 kg)
  • Exterior Color: Black
  • Housing Material: AZ91D Magnesium diecast


Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)


Control

  • Control Protocol: Art-Net, DMX, RDM, sACN
  • DMX, ArtNet, and sACN Channels single mode 29,222,314
  • DMX, ArtNet, and sACN Channels Dual mode Movement: 30
  • DMX, ArtNet, and sACN Channels Dual Mode Pixels: 144,192,240,288
  • ArtNet and sACN Channels Multi-Layer Control Movement: 30
  • ArtNet and sACN Channels Multi-Layer Control Dot Pixels: 72,96,120,144
  • ArtNet and sACN Channels Multi-Layer Control Cell Pixels: 72,96,120,144


Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 747 W, 7.54 A @ 100 V, 60 Hz
  • Power and Current: 747 W, 6.20 A @ 120 V, 60
  • Power and Current: 719 W, 3.63 A @ 208 V, 60 Hz
  • Power and Current: 717 W, 3.28 A @ 230 V, 50 Hz
  • Power and Current: 717 W, 3.17 A @ 240 V, 50 Hz


Battery

  • Battery type: Lithium Ion
  • Rechargeable: Yes


Certifications / Qualifications

  • CE, MET, ROHS, FCC
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)Gear Shop
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)


What's Included

  • STRIKE V
  • Seetronic Powerkon IP65 power cord
  • Omega bracket
  • Stealth filterchauv
