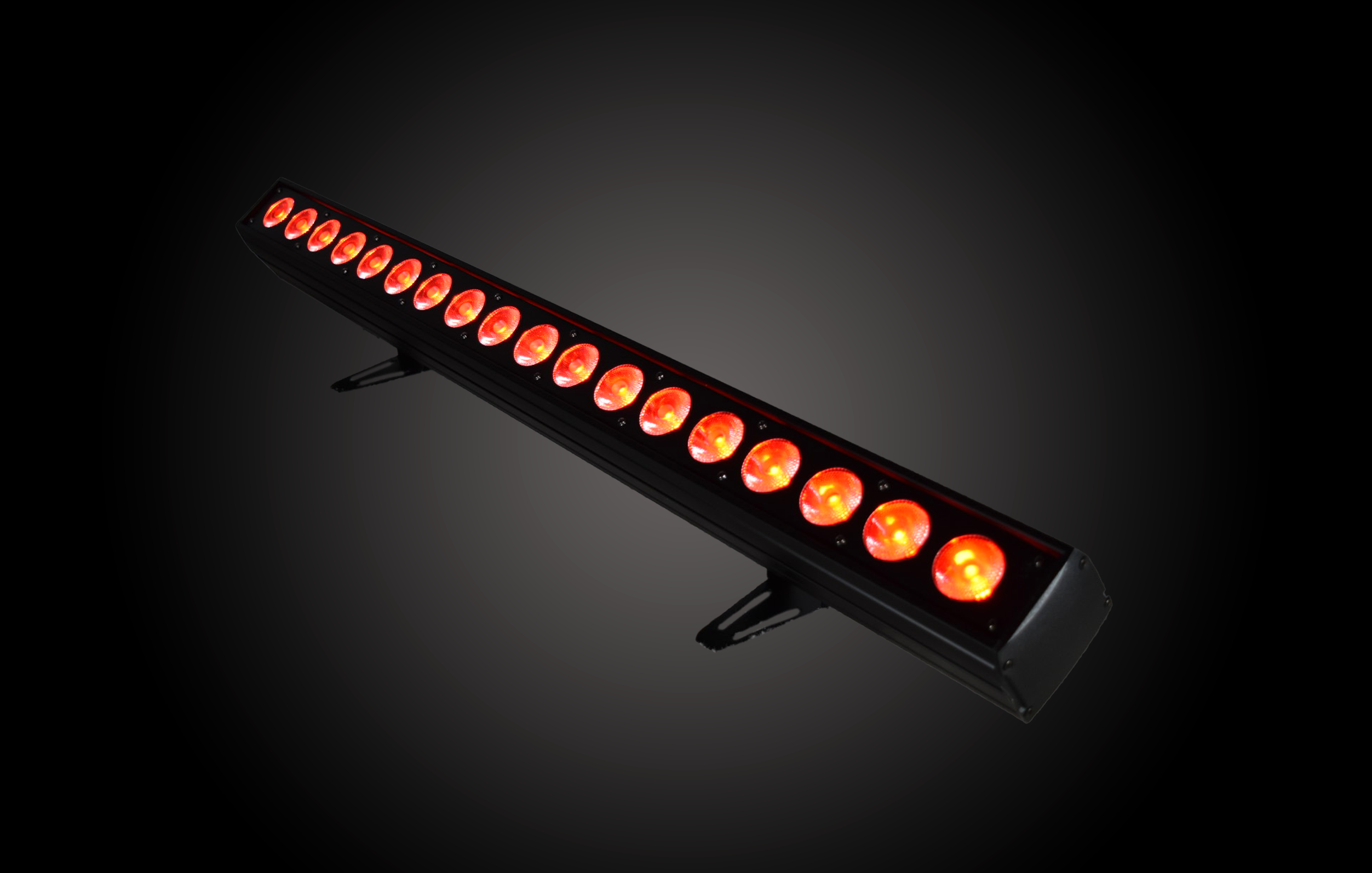

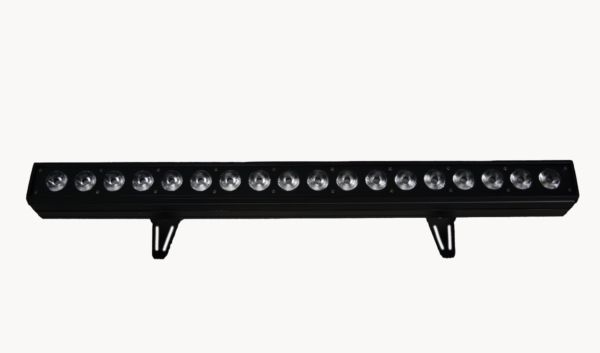

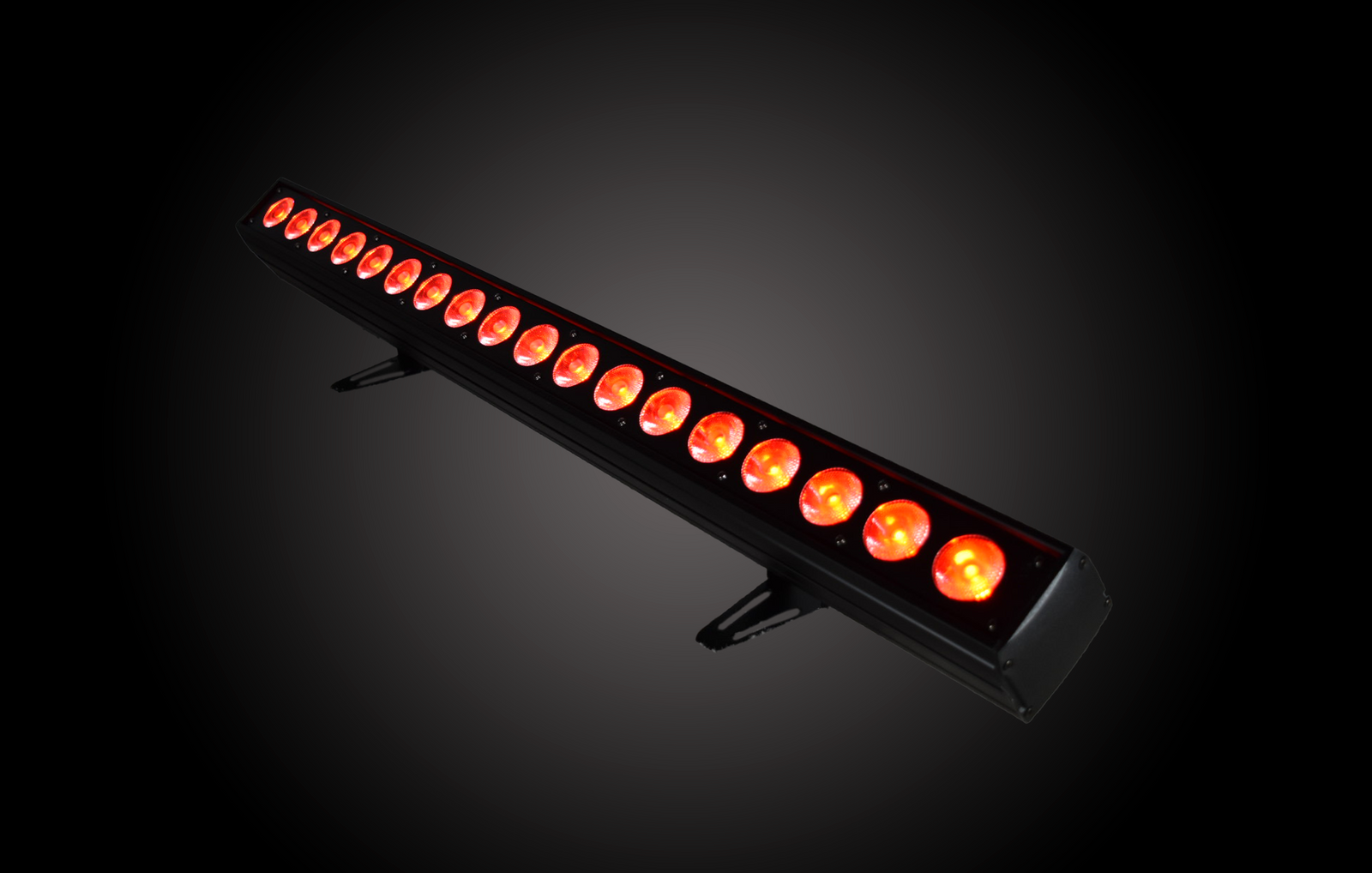

Starburst Pixbar Bar Light Fixture RGBW

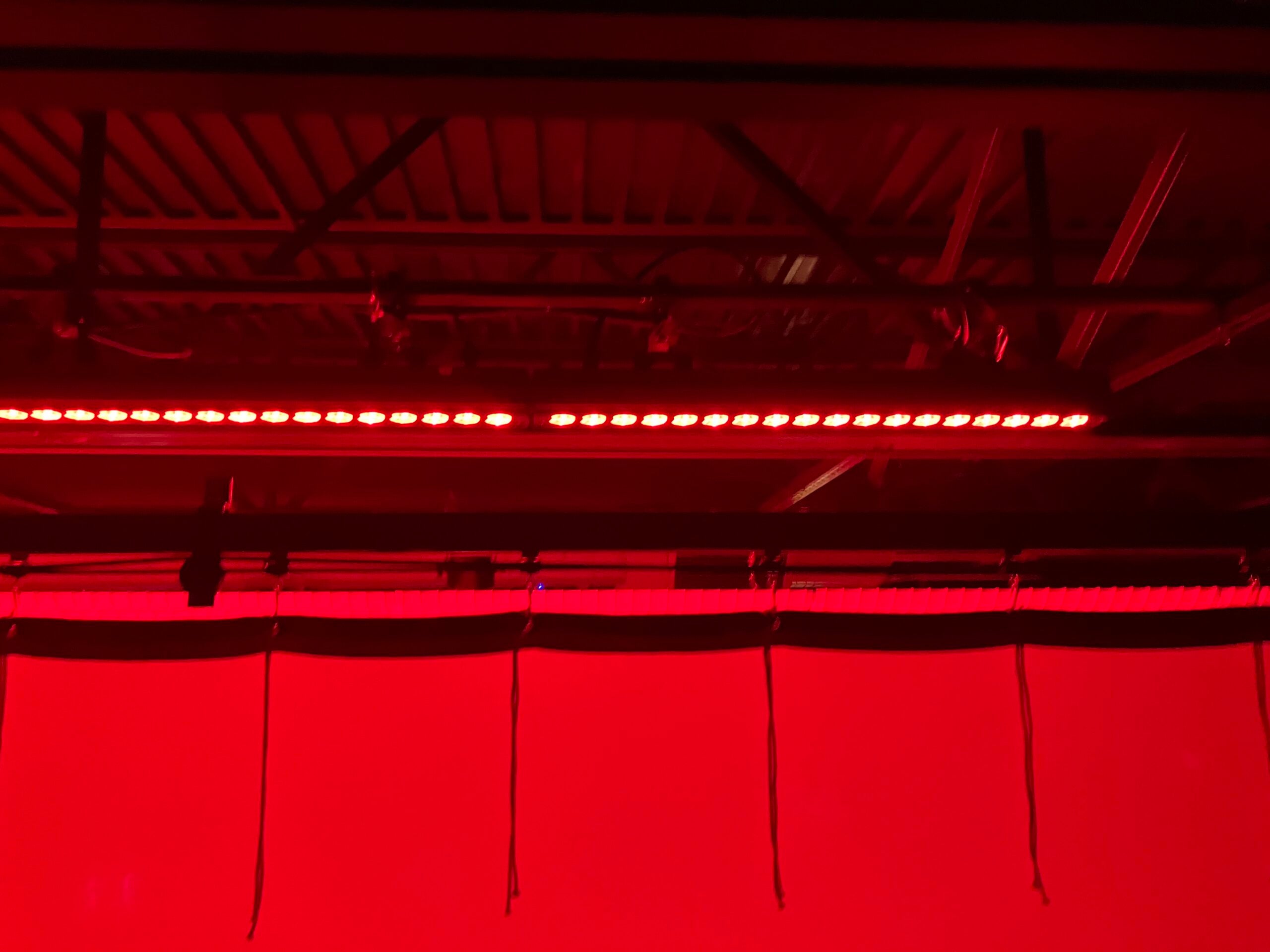

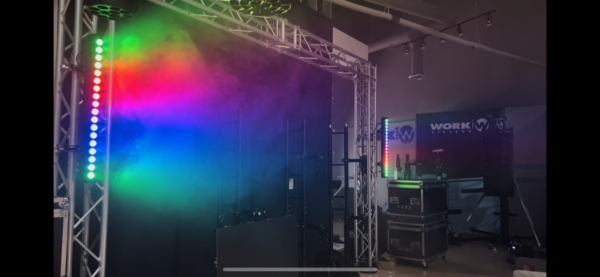

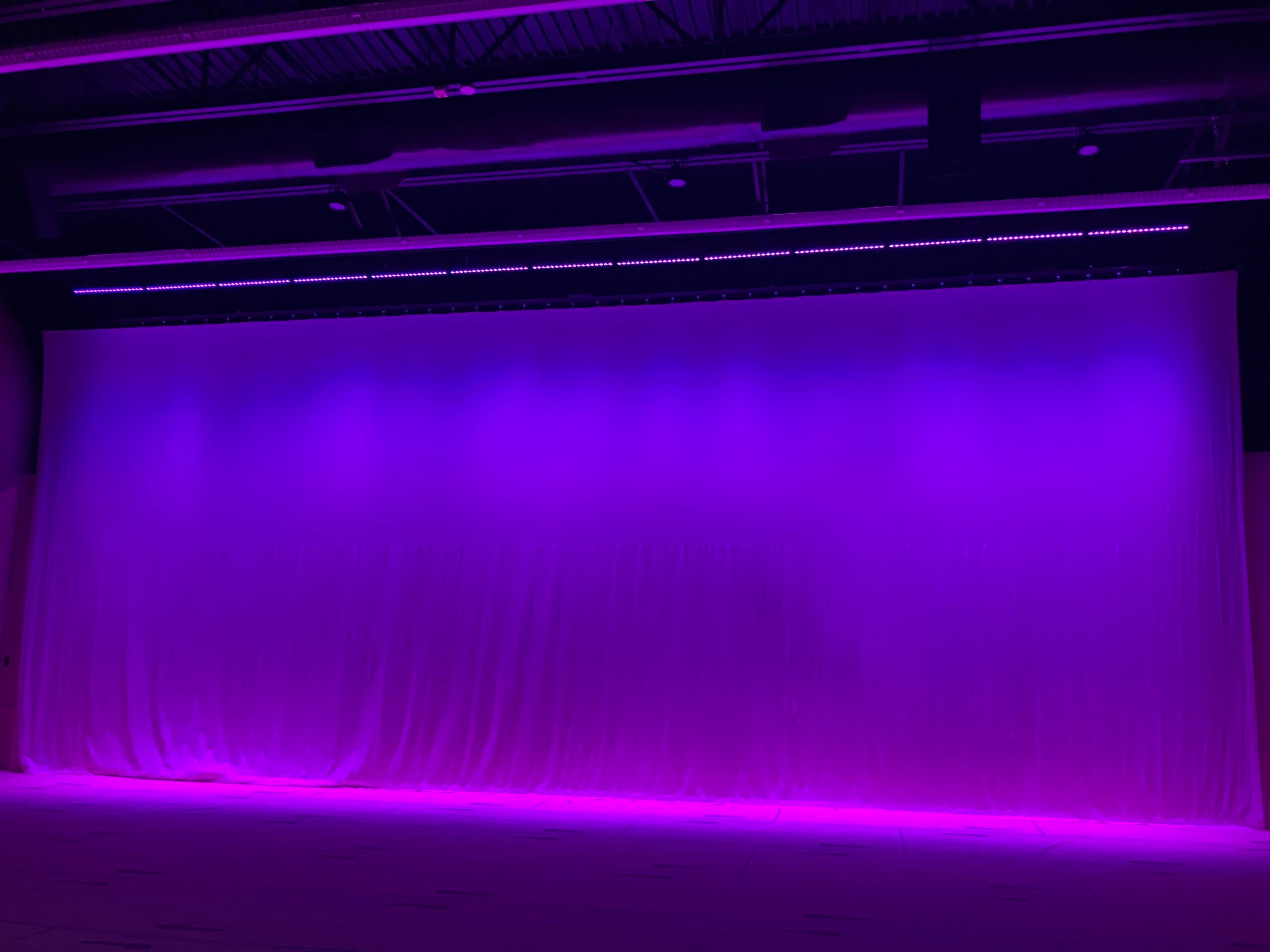

The Starburst Pixbar is a LED bar with RGBW color mixing capabilities. Equipped with (18) 10 watt LED’s and a 25º beam angle/ 54º field angle it is a punchy fixture that is excellent for uplighting a stage or canvas background. Also capable of full pixel mapping effects to further implement into your lighting programming.

Light Source:

• LED Power: (18) 10w LED’s
• LED Color: 4in1 (RGBW)
• Flicker Free Technology: No flickering during filming or video
• 100,000 hours LED lifetime
• Pixel Mapping

Power supply:

• Voltage: AC100-240V
• Max Power: 172w
•  Power con in/out

Optics:

• Beam Angle: 25º
• Dimming: 0-100%
• Pixel Mapping
• Strobe: 1-20 times/sec

Features:

• Housing: Die-casting Aluminum
• Color Output: Linear Color System
• Display: LCD with touch screen
• DMX in & out: 3-Pin DMX input & output

Control:

• Control Protocol: DMX 512/ RDM
• Control System: DMX, Auto run, Master/Slave, and Sound
• DMX Channels: 4CH, 8CH, 26CH, 72CH

Working Environment:

• IP Grade: IP-44

Dimensions:

• Net Weight: 9 lbs / 4 kgs
• Dimensions: 38.5 x 5.5 x 3.5″ in
