Rosco OPTI-SCULPT 40°/60° Reversible Filter Sheets

Rosco OPTI-SCULPT lenses provide precise angular beam control – enabling lighting professionals to accurately and affordably control the shape of their light. Rosco’s unique, proprietary process offers increased brightness with engineered light distribution that has been laboratory tested for accuracy and repeatability.

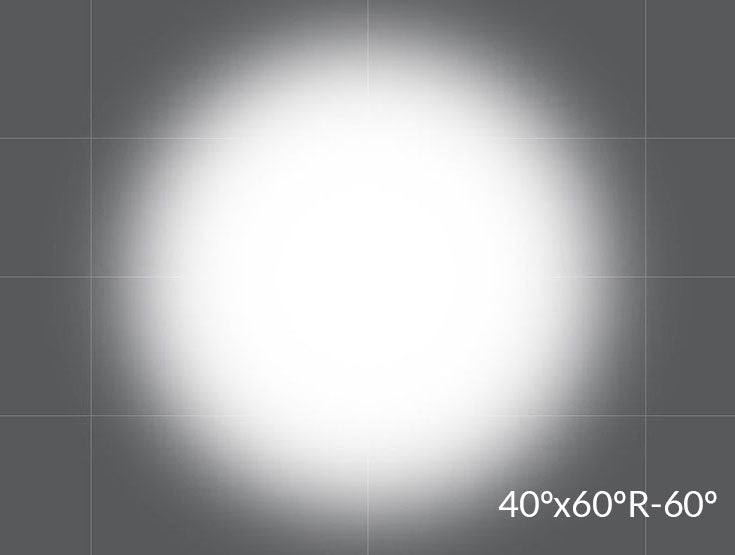

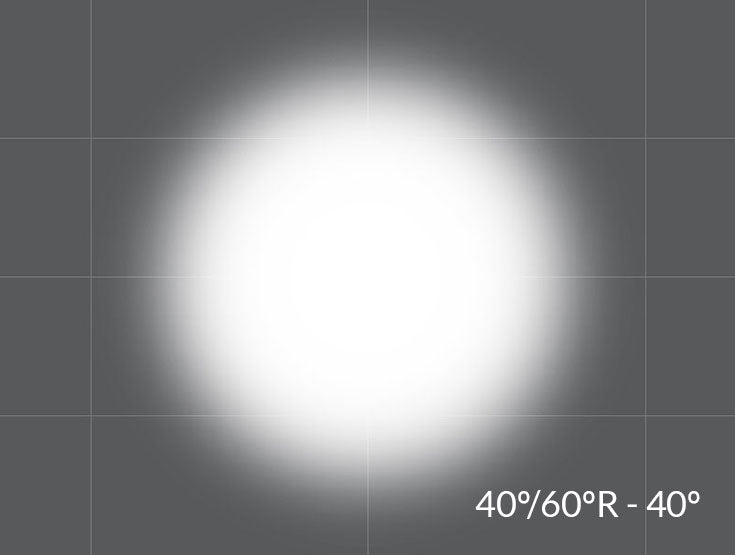

The Rosco OPTI-SCULPT 40°/60° is an asymmetrical OPTI-SCULPT lens. Each OPTI-SCULPT lens is manufactured using flame-retardant, 10 mil thick, semi-rigid polycarbonate that can be cut to any size and shape to fit any light fixture.

KEY FEATURES
• Engineered and laboratory tested for accurate and repeatable beam shaping
• High transmission
• Manufactured using heat-resistant, flame-retardant polycarbonate
• Designed for LED fixtures, but also suitable for use on conventional fixtures
• Durable – The lens’ performance is not adversely affected by dust, fingerprints or by marking the back of the lens

SPECIFICATIONS
Thickness: 10 mil (254µ)
Substrate: Clear polycarbonate
Contains flame retardant additive
Available Sizes:

• 24” x 20” sheet – seamless
• 24” x 40” sheet – seamless

• 7.5" x 7.5" available in 5 piece kits
• 7.5" x 7.5" as part of an 11 piece kit

Thermal Performance: -40° F – +320° F (-40° C – +160° C)
Transmission: >85%
Flame Retardant Rating: M1, B1, C1, BS3944 PART 1 1992, NFPA 701

INSTALLATION

Each OPTI-SCULPT lens has a textured side and a smooth side. In order to achieve the lens’ stated beam shape, position the OPTI-SCULPT filter with the smooth side towards the lamp. In order to create an accurate experience with OPTI-SCULPT, we recommend testing it with a small fixture like a pin spot or a small Fresnel fixture. The use of lasers and mobile phone LED lights may provide different, misleading results. Please note the OPTI-SCULPT effect, per each design, is subjective to the light fixture in use.
