Rosco Image Spot Lens Optics

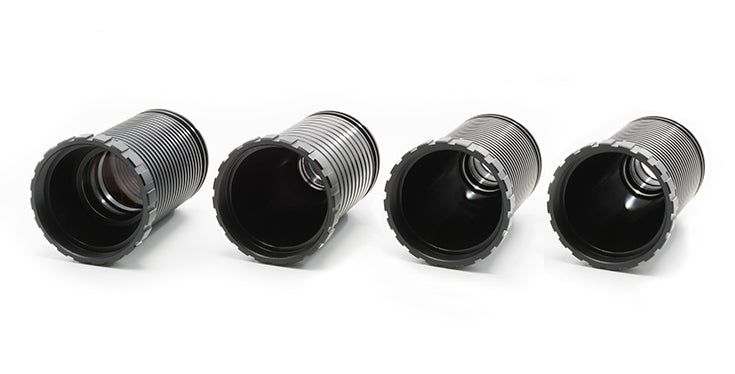

The different Image Spot Lens Optics provide a range of long to short projection capabilities with varying image diameters.

Each Image Spot Lens Optic is designed to receive the optional Image Spot Lens Cover that prohibits water & debris from entering the front of the optic.

The Very Narrow - 10° Lens enables the longest projection capability.
Image Diameter = 3.8’ (2m) @ 20’ (6m) distance.

The Narrow - 19° Lens enables long projection capability with broader image.
Image Diameter = 6.6’ (2m) @ 20’ (6m) distance.

The Medium - 25° Lens supports mid-range projections.
Image Diameter = 7.9’ (2.4m) @ 20’ (6m) distance.

The Wide - 30° Lens produces the widest beam spread, making it the best for short throws.
Image Diameter = 8.2’ (2.5m) @ 20’ (6m) distance.
