Mega-Truss Pick, Install 12", Mill

Mega-Truss Pick 12 inch for Threaded Rod Installations, Silver

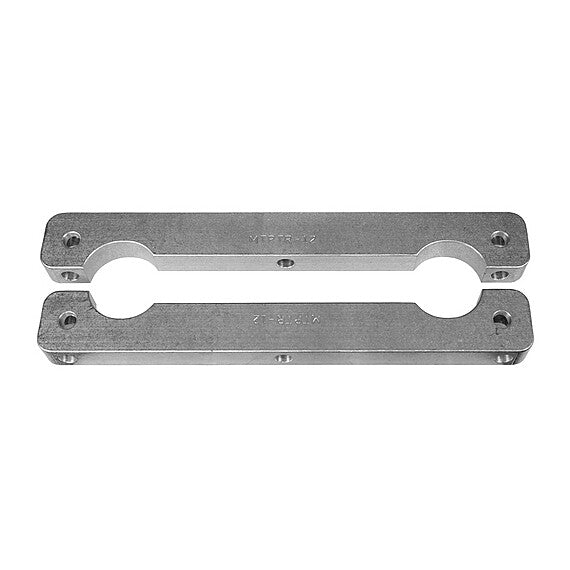

Two 1" x 2" x 15" 6061T-6 aluminum bars CNC machined with pockets to support one piece of 12" truss. The Mega-Truss Pick will suspend up to one ton of truss load when the Mega-Truss Pick is suspended by two customer supplied 1/2" threaded rods, or two 1/2" forged steel shoulder eyebolts fastened through the outside support holes. All of the holes are through holes without threading. Secure the threaded rod with a nut and washers above and use a nyloc nuts with a USS washer below the truss pick.

Working Load Limit

2000 lbs with two outside 1/2" threaded rods

Dimensions

1" x 2" x 21" (18 inch)1" x 2" x 15" (12 inch)

Weight

12" - 5 lbs. 18" - 7 lbs.

Case Quantities

each pair
