Mega-Truss Pick, 12" Truss, 1-Ton, Mill
Mega-Truss Pick, 12" Truss, 1-Ton, Mill
SKU:MTP 12.00
Regular price
$218.79 USD
Regular price
Sale price
$218.79 USD
Unit price
per
Couldn't load pickup availability
12" Mega Truss Pick, 1 Ton, Silver

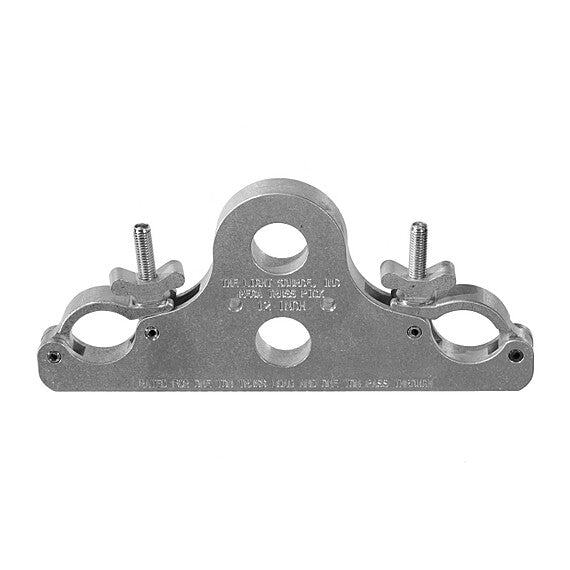

The Mega-Truss Pick is CNC machined from solid 1" x 6" 6061 T-6 aluminum billet. Two pockets cut into the Mega-Truss Pick have coupler style aluminum pivoting links, half inch swivel bolts, and our solid wing nuts to completely wrap around the truss tube to secure it.
The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook. It will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss. Fits 5/8" Shackle and larger.
Please note that these do not fit Global Truss. See Global Truss Picks for correct part number to order.
- Working Load Limit
- 1 ton truss / 2 ton total
- Hardware
- 1/2"-13 steel swivel eyebolts with solid aluminum wing nuts.
- Dimensions
- 1" Thick x 6" Tall x 13-3/8" Long (1.5" Diameter Rigging Holes for Single Hole Truss Pick; .781 Diameter Rigging Holes for Multi-Hole Truss Pick)
- Weight
- 4.15 lbs. (Multi-Hole - 4.28 lbs.)
- Case Quantities
- Each
