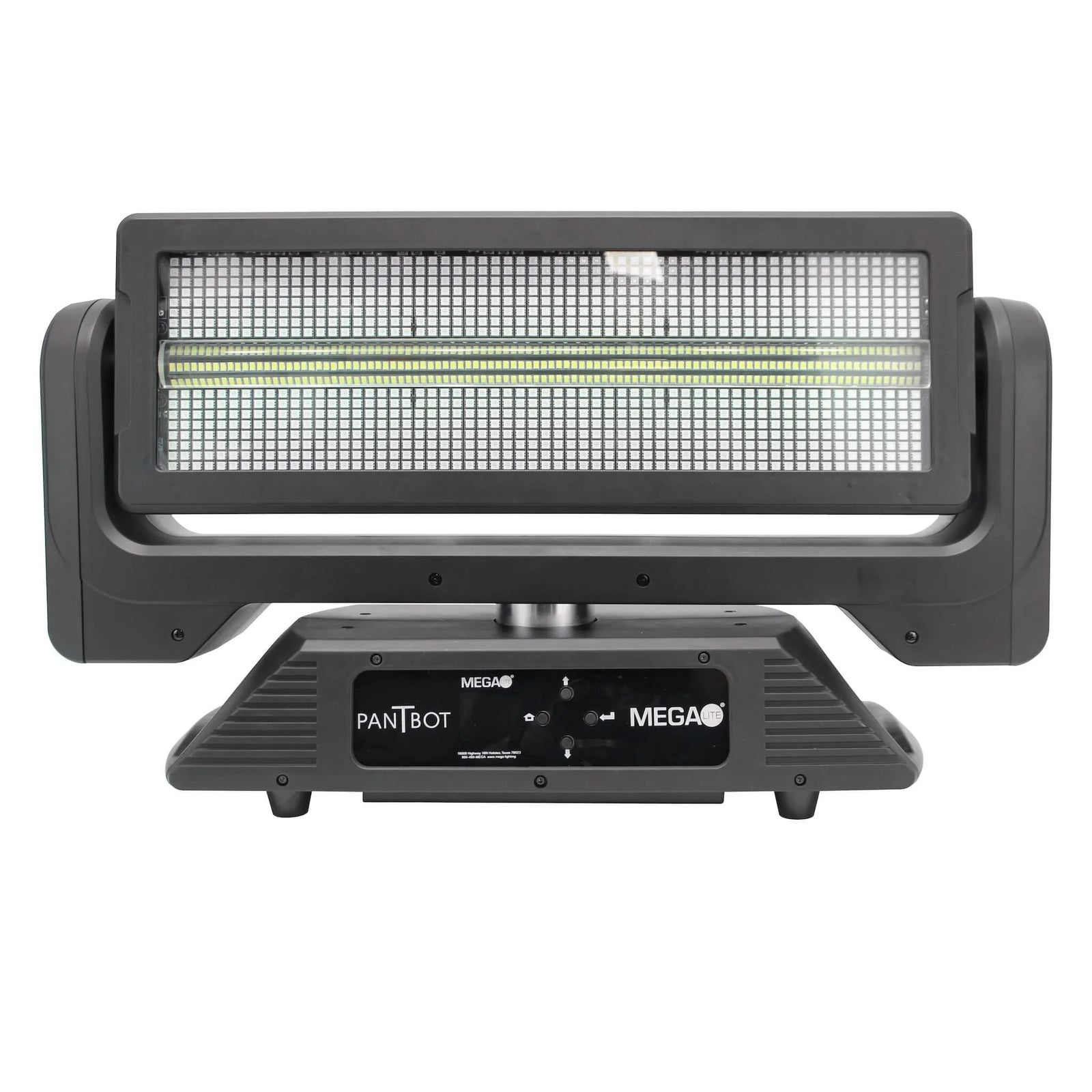

MEGA Lite Pan T Bot LED

The MEGA Lite Pan T Bot is a versatile LED fixture with robust features that enable it to be used as a blinder, strobe, pixel effect, and wash.

This unit has 960 0.5W RGB LEDs and 300 white 1W LEDs. The vibrant, red green and blue LEDs offer 80 segments on control that further enhance the user's creativity when programming. The blinding white LEDs can be used as a strobe or divided into ten segments using pre-programmed macros. Both sections can be independently controlled or combined, allowing users to program a variety of eye-catching, radiant looks.

The RGB LEDs are pixel-mappable into 80 pixels in extended mode and offer the user ultimate flexibility in mapping the stage.

With it's 270° 16 bit tilt and 540° 16 bit pan, the Pan T Bot lives up to it's name. These unique movements of both pan and tilt enhance the effects of the unit, creating a multidimensional appearance that will intrigue you.

SOURCE:
• LED TYPE: 960 RGB 0.5W | 300 WHITE 1W (6670K)
OPTICAL SYSTEM
• LENS ANGLE: 89° RGB EMITTERS | 40° WHITE EMITTERS
EFFECTS:
• FUNCTIONS: BLINDER, STROBE & WASH
• RGB PIXEL CONTROL: 80 RGB PIXEL CONTROL
• WHITE PIXEL CONTROL: 10 WHITE PIXEL CONTROL
• MACROS: SHUTTER, SPEED, COLOR & WHITE
CONTROL & PROGRAMMING:
• DISPLAY: DIGITAL DISPLAY
• PROTOCOL: DMX 512
• RDM: YES
• DMX CHANNELS: 2 MODES OF OPERATION
• OPERATING MODE: STAND ALONE 255 STEP DIMMER SETTING VIA DISPLAY AUTO PREPROGRAM VIA DISPLAY
MOVEMENT:
• PAN: 540º 8/16 BIT
• TILT: 270º 8/16 BIT
THERMAL & RATINGS:
• MAX AMBIENT TEMP: 40ºC (104ºF)
• MAX SURFACE TEMP: 60ºC (140ºF)
ELECTRICAL & CONNECTIONS:
• POWER CONNECTION: PANEL MOUNTED POWER CONN (TYPE) POWER IN/OUT CONNECTION:
• DMX CONNECTORS: PANEL MOUNTED 3 AND 5-PIN XLR CONNECTORS IN/OUT:
• ARTNET CONNECTIONS: PANEL MOUNTED RJ45 IN AND OUT
• POWER INPUT: UNIVERSAL 100V-240V 50/60HZ
• POWER CONSUMPTION: WATTS: 590W | AMPS: 5.04A @ 110V
RIGGING:
• INSTALLATION SYSTEM: 2 QUICK CONNECT CLAMP MOUNTS
ODERING INFO: PART NUMBER:
• PAN T BOT 1187
INCLUDED ITEMS:
• POWER CABLE
