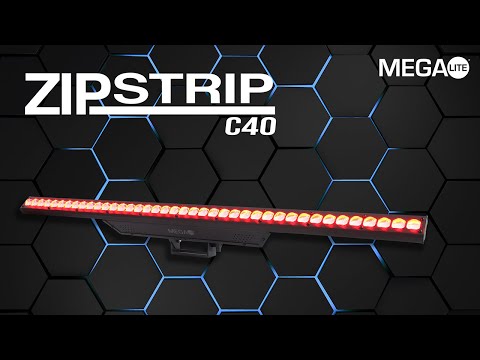

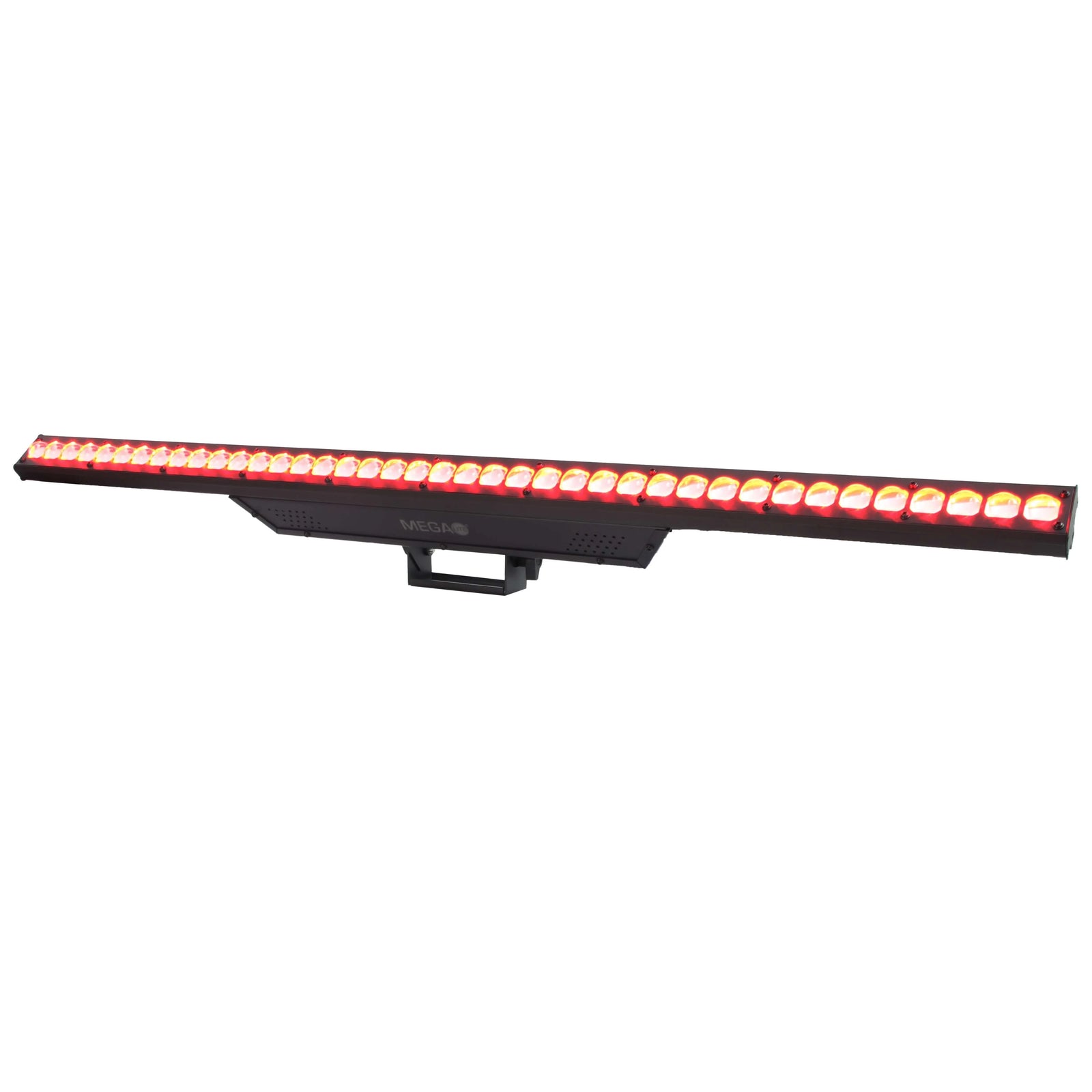

MEGA Lite ZIP Strip C40

The ZIP Strip C40, with its 40 pixels of Red, Green, and Blue narrow beam LEDs, is a powerful tool that allows you to create multicolor light curtain effects. Whether you want to add some atmosphere to a venue, dress the stage in vibrant color beams, or enhance a dancefloor with engaging colors, the ZIP Strip C40 is the perfect choice. This slim fixture is designed to enhance your production without exceeding your budget. It is lightweight, compact, and easy to mount with its compact three-hole yoke. Despite having no moving parts, it can create the illusion of high-speed movement by chasing colors in various combinations and speeds. With four control profiles, you can use a simple DMX controller or the most advanced RGB pixel matrix systems to take complete control of your pixels.

Mechanical Specifications
Housing: Sheet Metal
Power Connection: Seetronics SAC3MPX Input (Nema 5-15 to
SAC3FX-67 cable included)
Signal Connection: 5 Pin XLR In and Out
Lens Angle: 5°
Segments: 40 Pixels
Fastening System: Mounting Yoke

Electrical Specifications:
Light Source: 40 X 3W RGB LEDs
Color Temperature: N/A
CRI (Warm White): N/A
Lumen Output: N/A
Power Supply: Electronic 100-240V AC 50/60
Power Consumption: 65 Watts | .84 Amps @110V

Control System:
Control Protocols: DMX 512
Channel Modes: 4 Modes of operation
Mode 1: 3 Channel mode
Mode 2: 9 Channel mode
Mode 3: 120 Channel mode
Mode 4: 129 Channel mode
Display: LED

Size and Weight:
Fixture Size: 39.37” X 2” X 6”
Fixture Weight: 6lb
Packaged Size: 40.5” X 4.9” X 5.7”
Packaged Weight: 6.5lb

Included Items:
ZIP Strip C40 4057
Seetronics SAC3MPX Input
(Nema 5-15to SAC3FX-67 cable included)
