MEGA Lite Viceroy

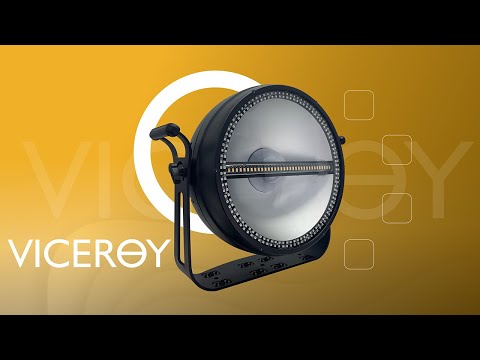

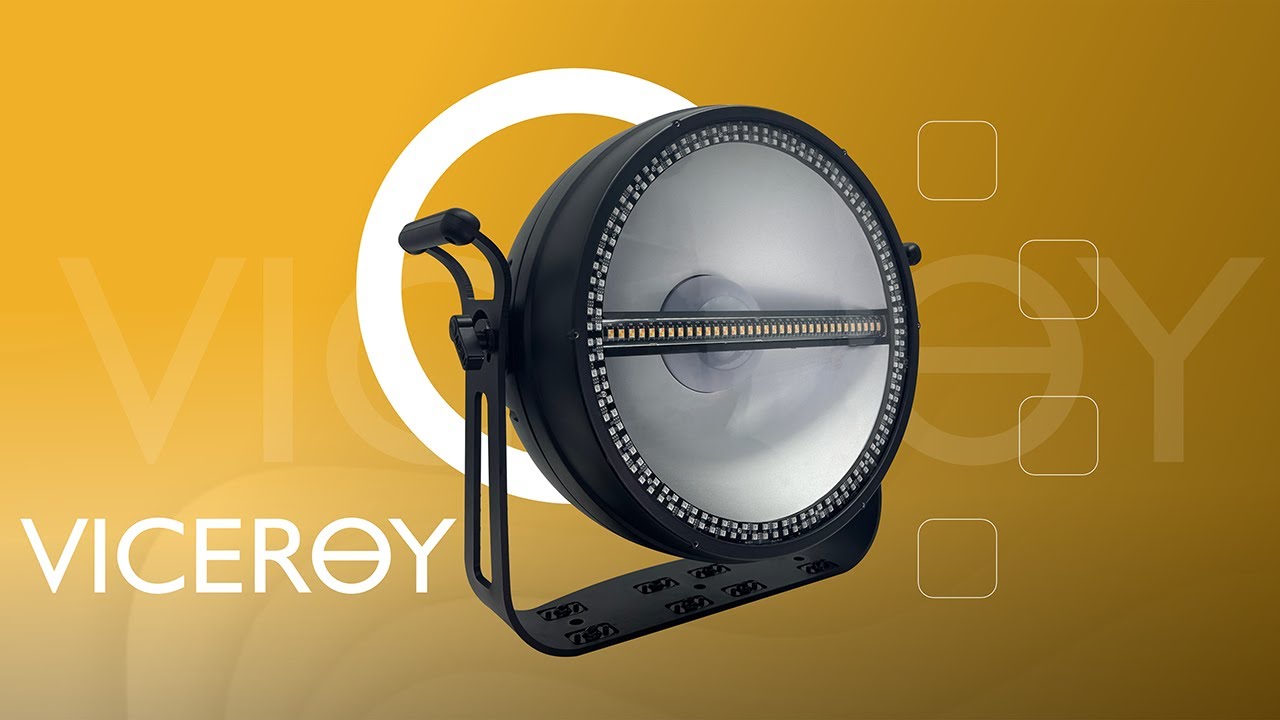

The Viceroy is a unique lighting fixture that combines three lighting principles into one unit. It features a large reflector that creates a scoop effect, powered by a 400W LED engine with red, green, blue, amber and lime colors (RGBAL). This setup produces a vast, soft-edged pool of light, ideal for general illumination and color blending.

Surrounding the scoop are eight segments containing 256 0.5W red, green, and blue LEDs. These segments can be controlled individually as pixels or through macros to create stunning circular color effects. Additionally, the fixture includes a five-segment center strobe bar equipped with high-power amber and cool white LEDs, adding dynamic bursts of energy to any installation or production. The Viceroy is housed in an IP65-rated enclosure, providing protection from inclement weather, making it suitable for both indoor and outdoor use. You can customize the unit with various grills and filter covers that soften the ring and strobe effects, or choose to frost the entire unit using its four-hole front-mounted screen system. Make the Viceroy a key part of your stage setup.

Mechanical Specifications:
IP Rating: IP65
Housing: Die-Cast Aluminum
Power Connection: Input: Seetronics SAC3MPX-67
Output: Seetronics SAC3FPX-67-01
Cable Input: Nema 5-15 to SAC3FX-67
(cable included)
Signal Connection: Input: Seetronics J5F2C-W-B-67 5-pin XLR
Output: Seetronics K5F2C-W-B-67 5-pin XLR
Fastening System: Mounting yoke with available quick-release
clamp accessory
LED Angle: Center: 55° / Bar: 60°

Electrical Specifications:
Light Source: Center: 1 X 400W Red, Green Blue, Amber, Lime
Ring: 256 X 0.5W Red, Green, Blue (8 segments)
Bar: 35 X 20W Amber, Cool White (5 Segments)
Color Temperature: 7105 K (all emitters)
CRI: 77 (all emitters full)
92 (configured)
Lumen Output: 13458 Lm
Power Supply: Electronic 100-240V AC 50/60
Power Consumption: 449 Watts 3.69 Amps @ 120V
Power Link: 3 Units @ 120V

Control System:
Control Protocols: DMX 512, RDM
RDM: Fixture Label, DMX Start Channel Address,
Channel Mode Set, Temperature Sensor,
Keep DMX Data, Scan Rate, Dimmer Curve,
White Balance RGBW, Fan Speed
Channel Modes: 4 Modes of operation
Mode 1: 5 Channel mode
Mode 2: 20 Channel mode
Mode 3: 39 Channel mode
Mode 4: 54 Channel mode

Size and Weight:
Fixture Size: 21.6" x 19" x 10.6"
(54.86 cm x 48.26 cm x 26.92 cm)
Fixture Weight: 42.1lbs (19.09 kg)
Packaged Size: 25.75” X 22.5” X 14.5”
(65.40 cm x 57.15 cm x 36.83 cm)
Packaged Weight: 53 lbs (24.04 kg)

Included Items:
Viceroy
Power Cable
Manual

Accessories:
Ring and Center Bar Diffusion 4155-ACC-H
Full Diffusion 4155-ACC-DIF
Hexagon Metal Grill 4155-ACC-HEX
Quick Release Clamp 4155-HOU-QUI
4 Unit Case CAS-4155-4-B
