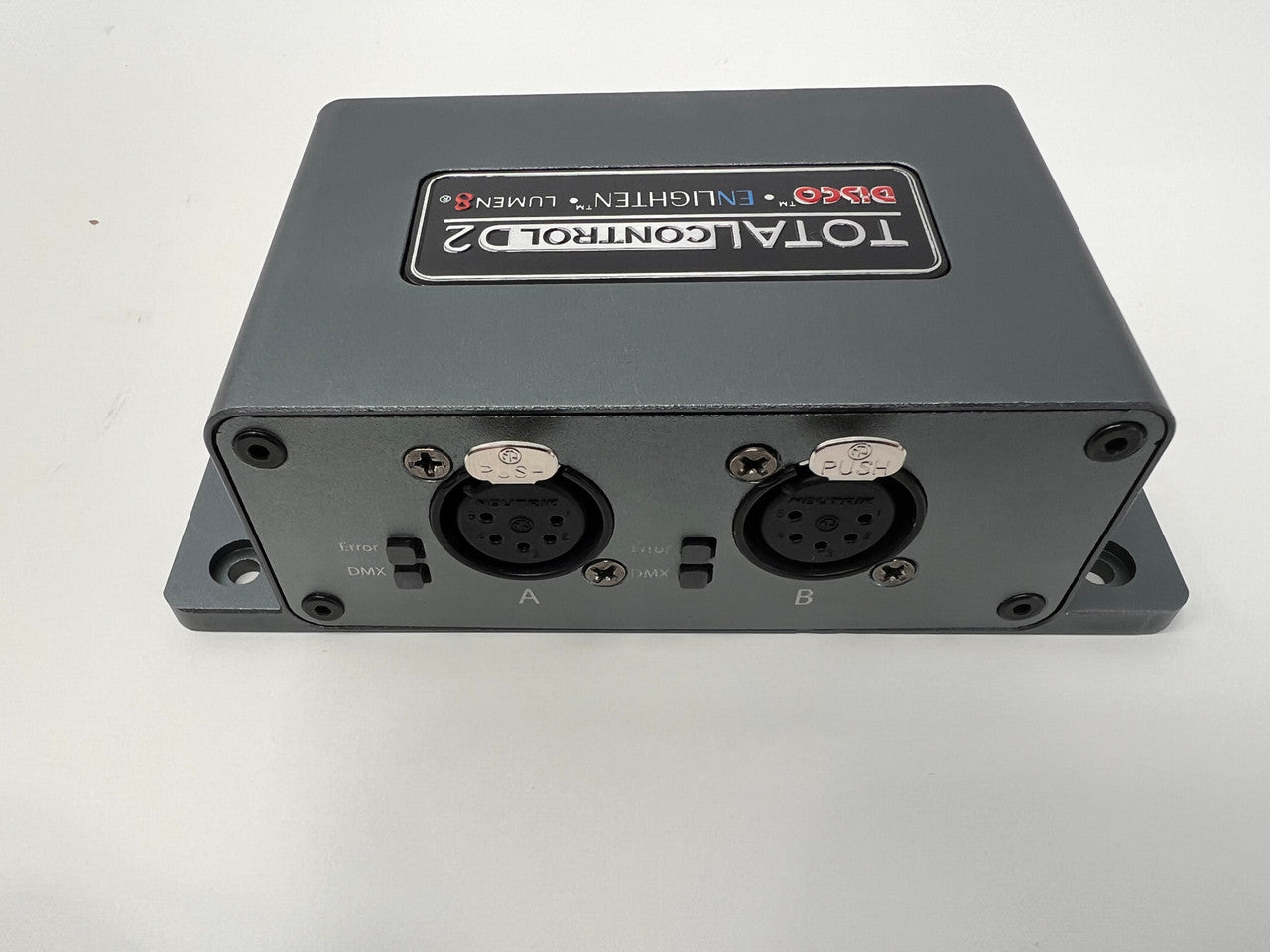

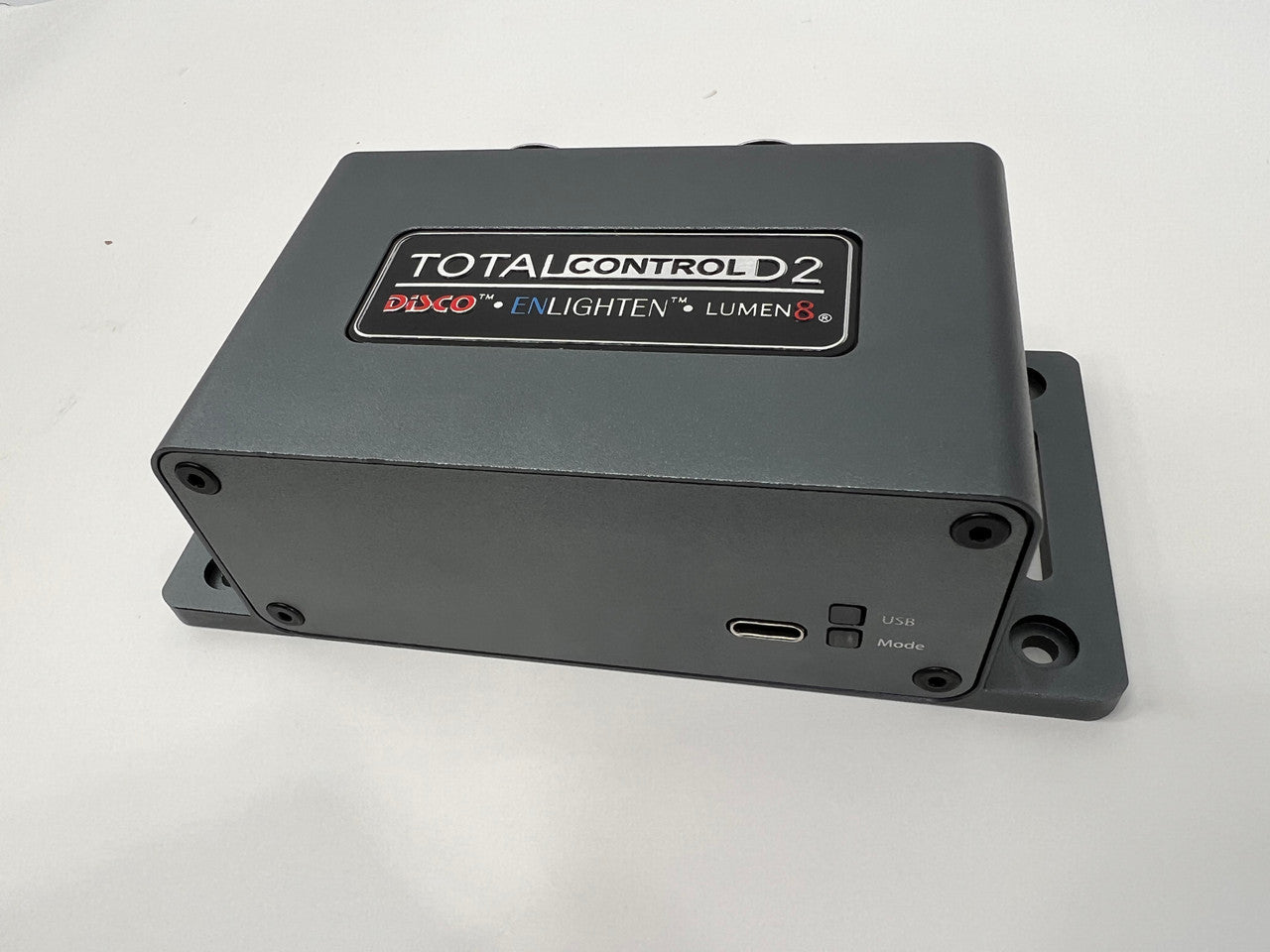

MEGA Lite Total Control D2 USB-C to DMX Interface

A rugged, next-generation USB-to-DMX interface engineered for modern lighting professionals who demand flexibility, intelligence, and reliability. With two assignable DMX universes and dual 5-pin outputs, each port can independently output any universe or act as a splitter for Universe 1. Built-in RDM support lets you set fixture addresses and modes remotely through the DMX line-saving time, reducing walkarounds, and minimizing setup errors. Housed in sleek anodized aluminum, the D2 features improved DMX surge protection, USB-C connectivity, and DMX error detection.

At startup, onboard LED diagnostics help identify cable faults, fixture misbehavior, or external interference-giving you confidence before showtime. Made in the USA with imported components, this is a control solution built for today's high demand environments. Total Control D2 doesn't just connect, it transforms your workflow. Unlock 28 universes in Disco, Enlighten, and Lumen8. Tap into Cuebot Virtual Lighting Operator, included in both Disco and Enlighten, which syncs cue changes to music energy for breathtaking automated shows.

Pair it with the built-in AI Programmer Assistant to instantly generate professional looks based on your presets. Whether you're in a touring rig, permanent installation, venue, church, or production company, Total Control D2 delivers the advanced control, show-ready features, and future-forward design that today's lighting ecosystems require.

Mechanical Specifications:
Rating: IP22
Housing: Extruded aluminum
Power Connection: USB-C
Signal Connection: USB-C
Fastening System: 4 hole points/Din rail adapter

Electrical Specifications:
Power Consumption: -1Amp
LED Indicators: 6

Protocol:
Output: USITT DMX 512
Remote Device Management: Yes
Minimum PC requirements: Operating System: Windows 10 or 11 (64-bit
recommended)
Processor: Intel Celeron or equivalent, 2.0
GHz or faster
RAM: 4 GB minimum
Storage: 500 MB free disk space
Display Resolution: 1920 x 1080 minimum
USB Port: 1 available USB port
Graphics: DirectX 11 and
OpenGL-compatible graphics card
Touchscreen Support (Optional): 19" or
larger recommended
Made in the USA with imported components

Size and Weight:
Fixture Size: 5.60" X 1.625" X 2.5"
(14.22cm X 4.12cm X 6.35cm)
Fixture Weight: 9 oz. (0.25 kg)
Packaged Size: 11.25” X 9.25” X 5.25”
(28.57cm X 23.49cm X 13.33cm)
Packaged Weight: 4.5 lbs (2.04 kg)

Included Items:
USB-c Cable
USB-A Adapter
Travel Case
USB Drive (Contains user manuals and operational platforms)
Nylon Bag
Plastic Traveling Case
