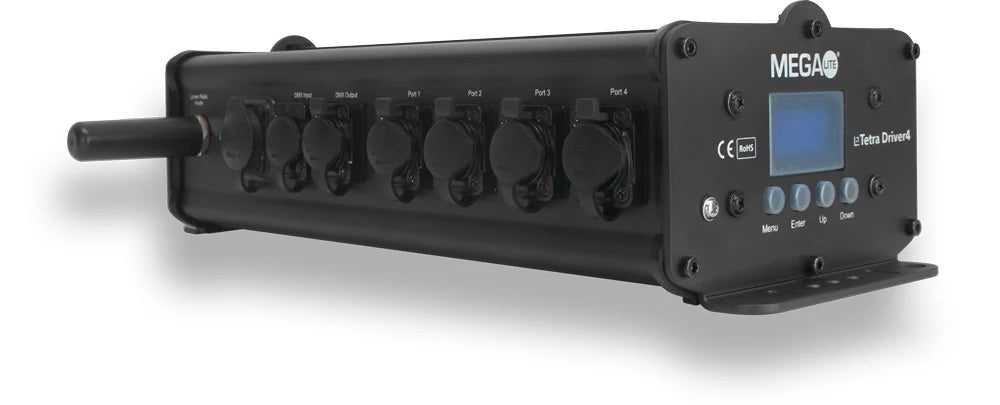

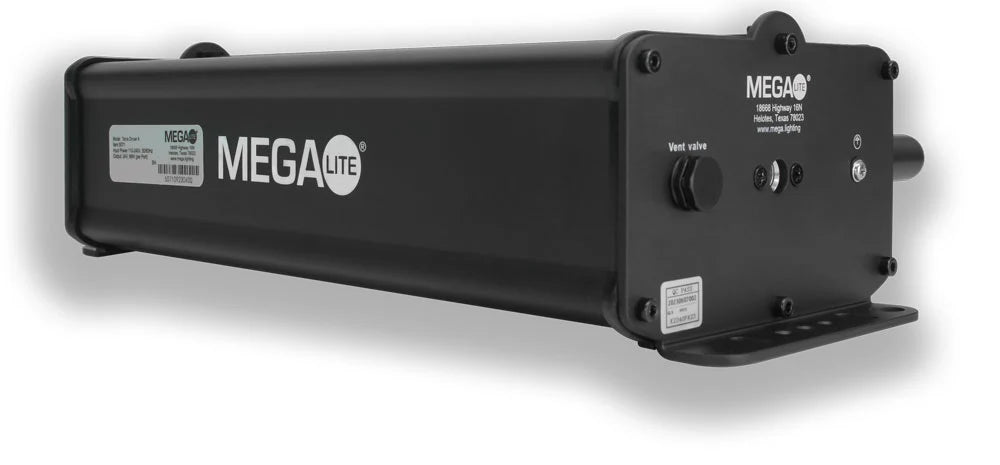

MEGA Lite Tetra Driver 4

Designed to seamlessly control the Light Pipe and Tetra Series units, this all-in-one solution has 4 96W outputs that can be individually addressed within your preferred channel mode.

To further enhance versatility, this powerful driver features multiple mounting points, allowing for easy wall mounting and clamp mounting. The unit supports wireless DMX, creating flexibility and ease of use. The IP65 rating makes this unit perfect for outdoor venues.

Mechanical Specifications:
IP Rating: 65
Housing: Aluminum Extrusion
Fastening System: M10 Clamp Mount Thread,
Mounting Holes, Accessory DIN Rail Mounts
Power Connection: Seetronics SAC3FX IP-Rated
Connection (Nema 5-15 Cable Included)
DMX Connection: 5-Pin XLR In and Out
Wireless DMX Connection: Lumen Radio Wireless DMX Connection Receiver
Output Connection: Four (4) 5-Pin XLR Outputs

Electrical Specifications:
Output Ports: Four (4)
Power Per Port: 96W
Drive Method: Constant Voltage
Power Consumption: 3.18 Amps
376 Watts
Power Supply: Electronic: Mean Well UHP-500-24
Output: 24V DC
Working Ambient Temp: 24 °F - 148 °F
Cooling: Internal Fan
Refresh: 4,000Hz
Power Input: 90-264V AC 50/60Hz

Control & Programming:
Control Protocols: DMX 512
Operating Mode: 17 Pre-Programs Manual Settings Via Display
DMX 5 Modes: 1 Channel Mode Dimmer
2 Channel Mode Warm White, Cool White
3 Channel Mode R,G,B
4 Channel Mode R, G, B, W
7 Channel Mode Dimmer, R, G, B, W, Strobe, Macro

Size and Weight:
Fixture Size: 13.25” X 9.5” X 4.12”
Fixture Weight: 8.8 lbs
Packaged Size: 14.75” x 12” x 6.75”
Packaged Weight: 9.8 lbs

Included Items:
Tetra Driver 4 5071
SEETRONICS SAC3FX IP CON-SEE-SAC3FX
CONNECTION TO NEMA 5-15
CONNECTION CABLE
