MEGA Lite Tetra Driver 16

Designed to seamlessly control the Light Pipe and Tetra Series, this all-in-one solution has 16 outputs that can be individually addressed within your preferred channel mode.

To further enhance versatility, this powerful driver features removable rack ears, allowing for easy wall mounting, rack mounting or rear rack mounting, accommodating various setup requirements.

Mechanical Specifications:
IP Rating: 20
Installation System: Rack Mountable & Removable
Clamp & Wall Mount
Power Connection: Power Con Type Cable Mounted to
NEMA 5-15
DMX Connection: RJ45 Input and Output & 5-Pin XLR
Connector

Electrical Specifications:
Power Supply: Two (2) Electronic Mean Well
UHP580
Power Input: 90-264V AC 50/60Hz
Power Consumption: Pertinent to Fixture
Voltage: Constant Voltage
Output Voltage: 16 Outputs, 24V each
Output Wattage: 60W Each

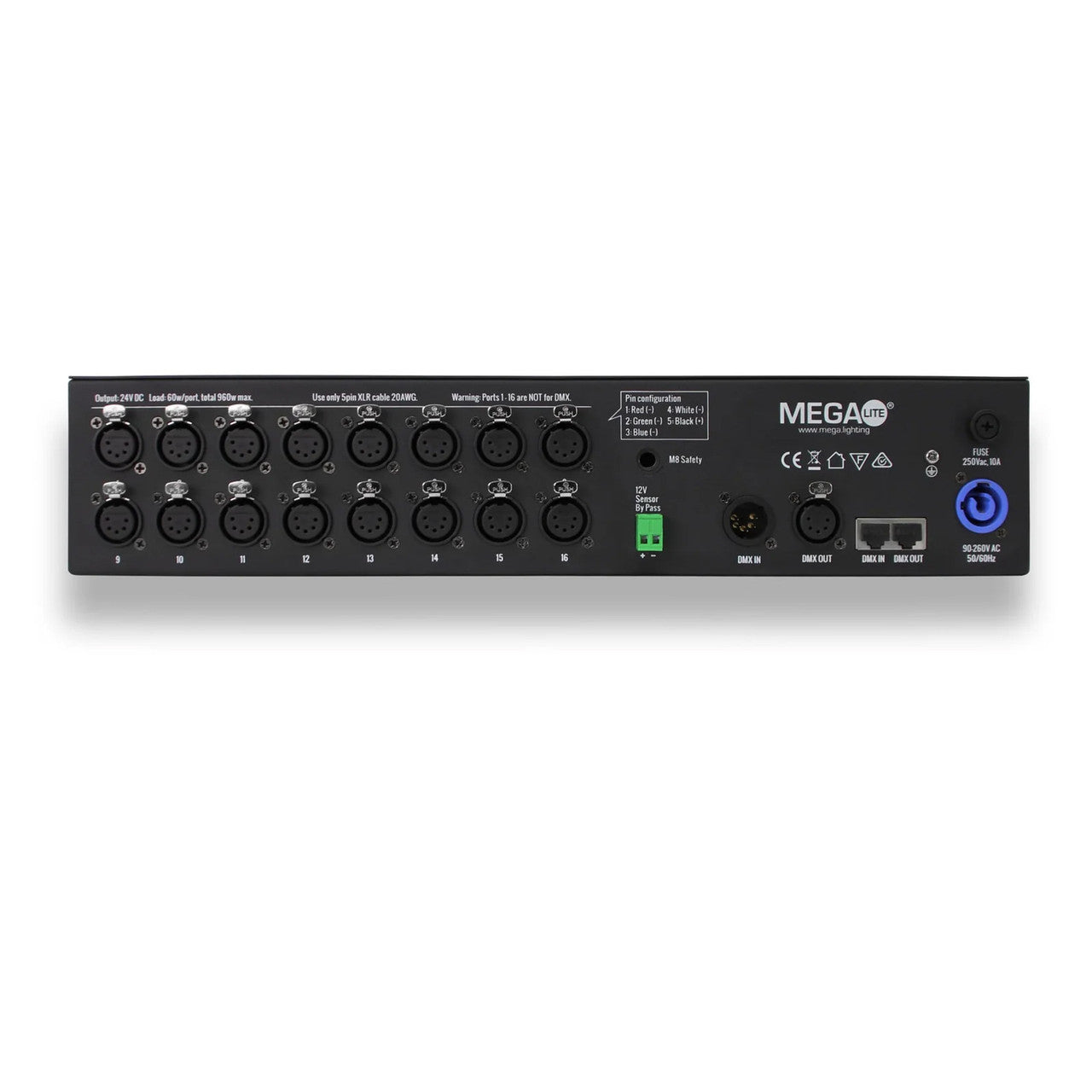

Output Connections: Sixteen (16) 5-Pin Seetronics XLR
Connector
Drive Type: Constant Voltage
Working Ambient Temperature: 24°F - 148°F
Cooling: Fan Cooling

Control System & Programming:
Protocol: DMX 512
Channel Modes: 1CH Dimmer (All Four Outputs)
2CH Cool White, Warm White
3CH Red, Green, Blue
4CH Red, Green, Blue, White
5CH R,G,B,W, Strobe, Macro
64CH 16 x Red, Green, Blue, White
112CH 16 x R,G,B,W, Strobe, Macro
12V Bypass: Will engage ALL ‘Dimmer’ channels
to Full upon receiving a 12V signal
RDM: Yes, Addressing, Channel Mode
Control
Output Configurations: Outputs can be individually assigned
On Board Control: Manual Control 0-255 (only RGBW)

Size and Weight:
Fixture Size & Weight: 19” x 10.5” x 3.5” & 12lbs
Packaged Size & Weight: 21.3” x 13” x 5.5” & 16.5lbs

Included Items:
Tetra Driver 16: 5072
Seetronics SAC3FCA Connection: CON-SEE-SAC3FCA
