MEGA Lite TecLight BVW150

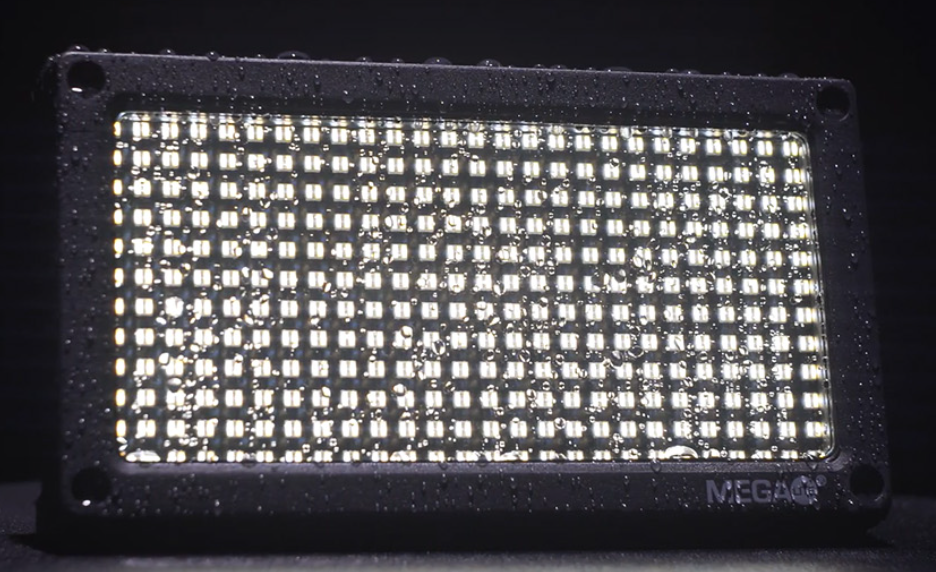

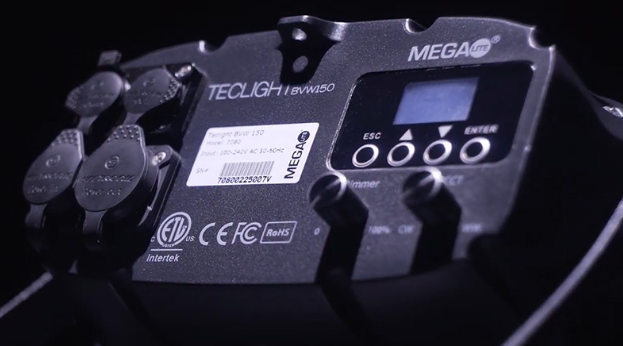

The TecLight BVW150 is a multipurpose LED fixture equipped with a unique tunable LED light source that allows you manually control the color temperature from 2700k to 7200k and its intensity directly form the back of the fixture. This makes it ideal for applications where a quick adjustment of color temperature is needed. It has a CRI of 95 in warm and cool white combined. Use case examples include live broadcasting, photography, product inspection, theatrical work areas, makeup, and wherever variable color temperature is required.

We have also packed and added blue LED, making this unit ideal as a Blues or Running light offstage. It can be coupled via a proprietary system to increase coverage and output, and its IP65 rating makes it ideal for outdoor and indoor applications.

Mechanical Specifications:
IP Rating: IP65
Housing: Die-Cast Aluminum
Power Connection: Input: Seetronics SAC3PX-67
Output: Seetronics SAC3FX-67 plug to
Nema 5/15
Signal Connection: 5 Pin XLR In and Out
Fastening System: Mounting yoke with quick-release clamp
Fan: 4 fan speeds and silent mode

Electrical Specifications:
Light Source: 312 X B, VW 0.5W LEDs
Color Temperature: Blue = 448nm
Warm White = CCT 2762K
Cool White = CCT 7211K
Warm and Cool White = CCT 4274K
CRI (Warm & Cool White combined): 95
Lumen Output: 9232 Lm - 13004 Lm
Power Supply: Electronic 100-240V AC 50/60
Power Consumption: 155 Watts 1.3 Amps @120V
Display: LCD

Control System:
Control Protocols: DMX512, RDM, Knob control(Dimmer/CCT),
Channel Modes: 3 Modes of operation
Mode 1: 3 Channel mode
Mode 2: 4 Channel mode
Mode 3: 5 Channel mode
Display: Manual

Size and Weight:
Fixture Size: 10.75” X 5.39” X 6”
(27.30 cm x 13.69 cm x 15.24 cm)
Fixture Weight: 8.3 lbs (3.76 kg)
Packaged Size: 13.75” X 12.5” X 8”
(34.92 x 31.75 x 20.32 cm)
Packaged Weight: 10 lbs (4.53 kg)

Included Items:
TecLight BVW150 Fixture 7080
Power Cable
Quick Release Clamp Mount
