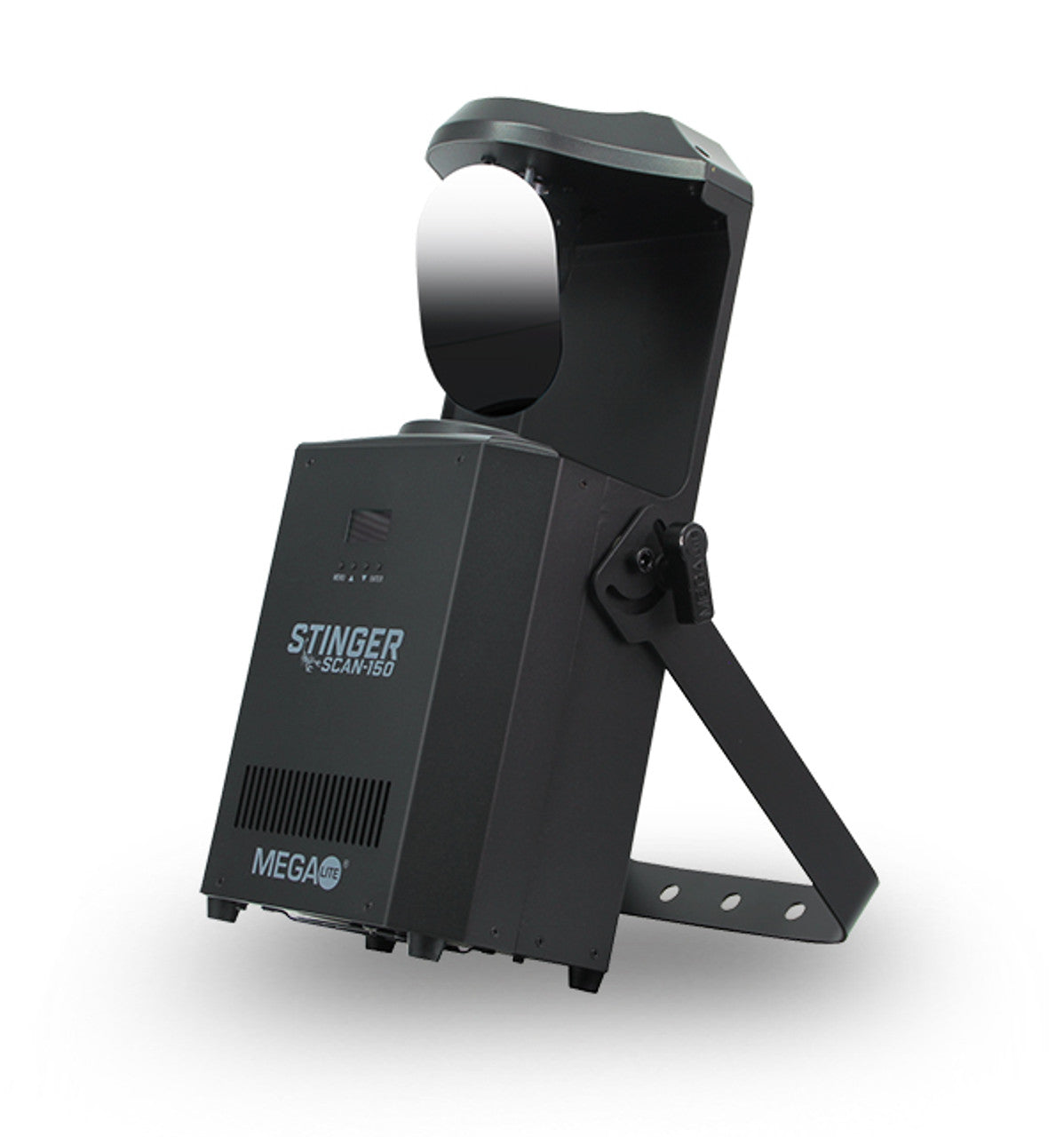

MEGA Lite Sinter Scan-150, 150W LED

MEGA Lite has revamped the infamous scanner by creating the Stinger Scan-150, which uses an LED light source. Designed to be more efficient and deliver a high output, this fixture features a 150W single-color LED.

It is packed with the effects you need: eight colors+ open, seven removeable bidirectional and indexing rotation gobos, a 4-facet rotatable indexing prism, mechanical focus, 180° pan, and 140° tilt. This fixture can deliver sharp mid-air beams with high-speed movement and yet be an efficient scanner with great slow movements.

When placed against a wall or on the floor, the scanning power fits into areas where other moving head fixtures don't make sense. The fast mirror pace is ideally suited for high-energy music and high-impact lighting, adding excitement to any event.

SOURCE:
• LED TYPE: 150W SINGLE COLOR
OPTICAL SYSTEM:
• LENS ANGLE: 15º
• FOCUS: MECHANICAL FOCUS
EFFECTS:
• COLORS: 8 COLORS + OPEN
• ROTATING GOBOS: 7 REMOVABLE, BI-DIRECTIONAL, INDEXING
• PRISM: 4-FACET, ROTATABLE, INDEXING
MOVEMENT:
• PAN: 180º
• TILT: 40º
CONTROL & PROGRAMMING:
• RDM: YES
• DISPLAY: DIGITAL
• PROTOCOL: DMX 512
• DMX CHANNELS: 2 MODES OF OPERATION
THERMAL & RATINGS:
• MAX AMBIENT TEMP: 40º F (104º C)
• MAX SURFACE TEMP: 140º F (60º C)
• MAX OPERATING TEMP: 130º F (54º C)
• COOLING: FAN COOLING
ELECTRICAL & CONNECTIONS:
• POWER CONNECTIONS: PANEL MOUNTED POWER CON (TYPE) IN & OUT
• DMX CONNECTORS: PANEL MOUNTED 5PIN XLR CONNECTOR IN & OUT (3 PIN OPTIONAL)
• POWER SUPPLY: ELECTRONIC AUTO SWITCHING 100V-240V 50/60HZ
• POWER CONSUMPTION: WATTS: 272W | AMPS: 2.3A
• FUSE: F5A 250V
RIGGING:
• INSTALLATION SYSTEM: MOUNTING YOKE
ODERING INFO: PART NUMBER:
• STINGER SCAN-150 1205
INCLUDED ITEMS:
• POWER CON (TYPE) TO NEMA 5-15 CABLE
• POWER CABLE
• SAFETY EYEBOLT
