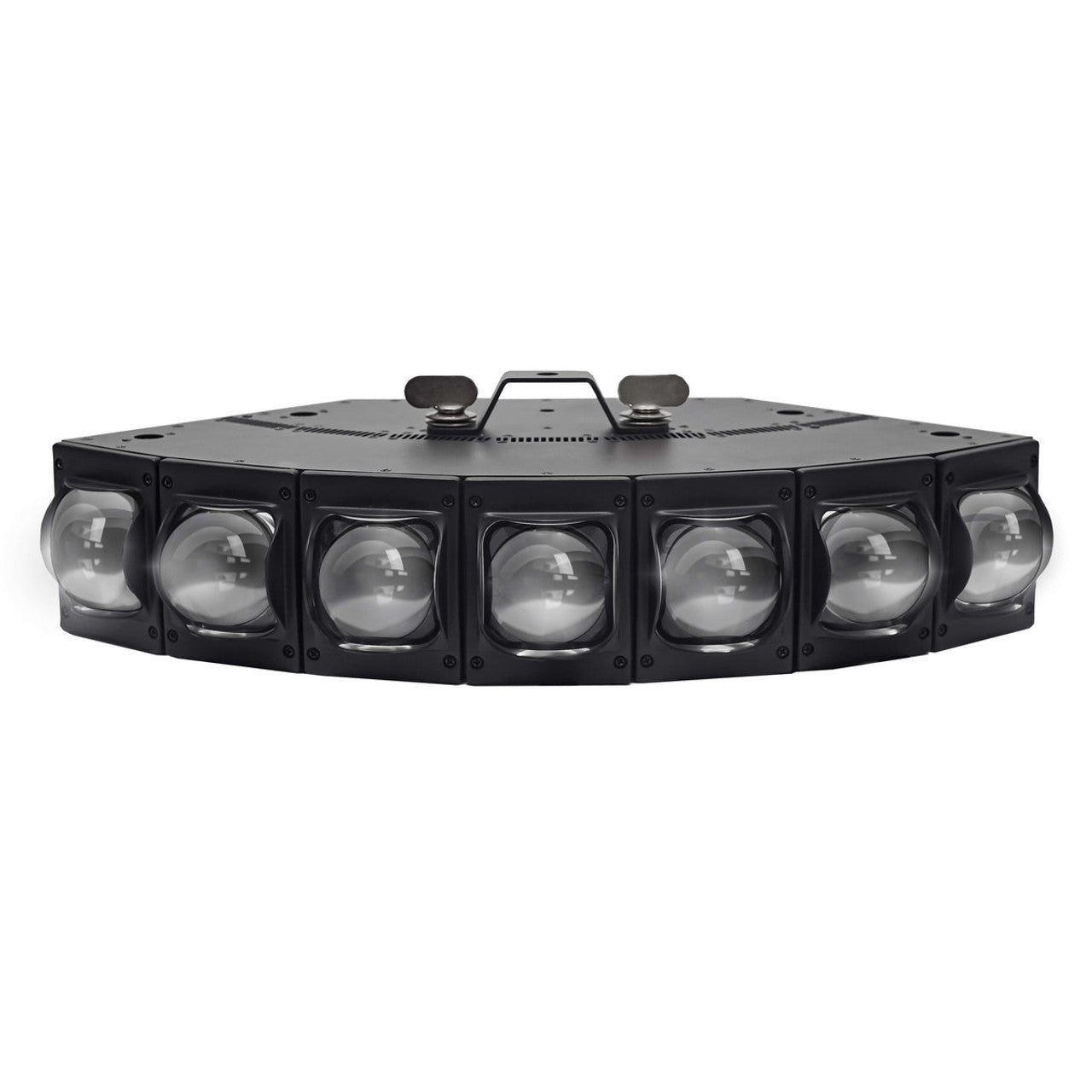

MEGA Lite PieLite Multibeam

The PieLite Multibeam is a versatile lighting fixture featuring 7 x 60W RGB + Cool White LED 4.5° pixel beams with individual control. It offers a rich color spectrum, clear white, along with several mounting positions (horizontal, vertical, and diagonal) that allow for creative designs. The modular grouping options (2,3, or 4 units) allow for creative setups such as circles, semicircles, or standalone arrangements, making it ideal for corners or tight spaces. The PieLite Multibeam's powerful, controllable beams can be used in various settings, enhancing any space with stunning visual effects.

Mechanical Specifications:
Housing: Metal
Power Connection: Seetronics SAC3MPX Input & SACFPX
output (Nema 5-15 to SAC3FX-67
cable included)
Signal Connection: 3 and 5 Pin XLR In and Out
LED Angle: 4.5°
Segments: 7 segments
Fastening System: Quick Release Clamp Mounts, Multiple
Fixture Quick Release Joining Mounts

Electrical Specifications:
Light Source: 7 X 60W RGBW
Color Temperature: 7227K (white Emitter Only)
CRI (Warm White): 73
Lumen Output: 792
Power Supply: Electronic 90-264V AC 50/60
Power Consumption: 537 Watts / 4.69 Amps @110V

Control System:
Control Protocols: DMX 512, RDM
RDM: Fixture Label
DMX Start Channel Address
Channel Mode Set
Channel Modes: 4 Modes of Operation
Mode 1: 4 Channel mode
Mode 2: 10 Channel mode
Mode 3: 28 Channel mode
Mode 4: 38 Channel mode
Display: LCD

Size and Weight:
Fixture Size: 21” X 11.33” X 5.25”
(53.34 cm x 28.77 cm x 13.335 cm)
Fixture Weight: 15 lb 14oz (6.8 kg)
Packaged Size: 25” X 13.75” X 8”
(63.5 cm x 34.92 cm x 20.32 cm)
Packaged Weight: 18lb (8.16kg)

Included Items:
Pielite fixture 4150
Quick release clamp mount 4150-HOU-QUI-2
Quick release joining mount 4150-HOU-QUI-4
User manual
Power cable
