MEGA Lite Outshine Pixel Strip Q360

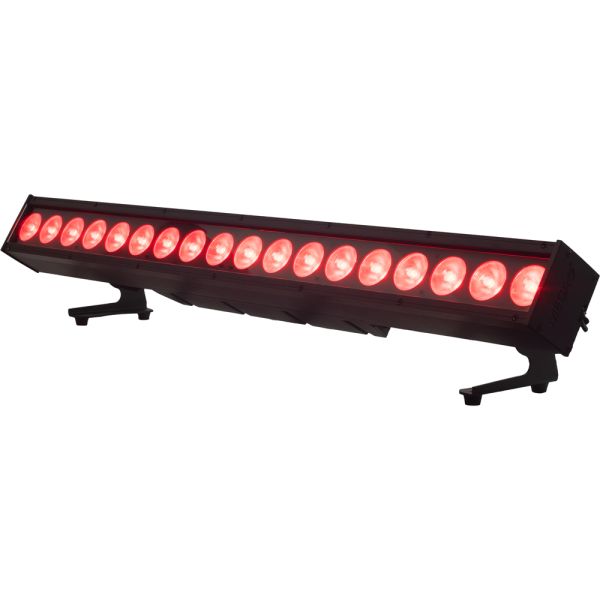

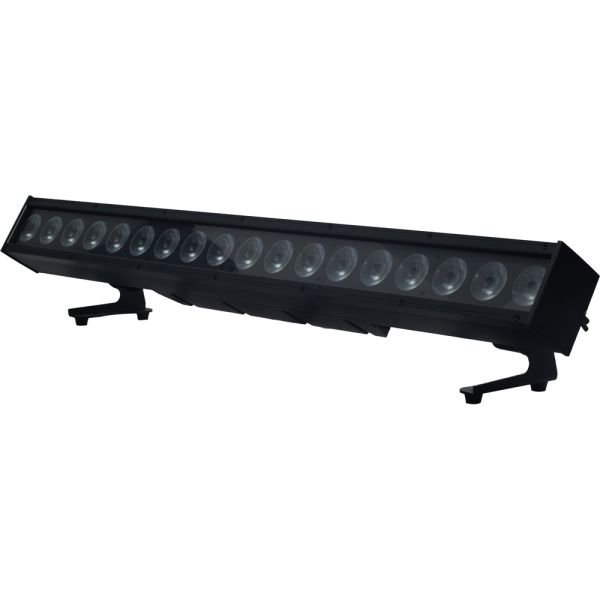

The Outshine Pixel Strip Q360 has 18 pixels, each powered by a tetra-colored LED that uses Red, Green, Blue, and Warm White emitters in each pixel, covering 17° beam angle and 29° field angle per pixel. Create great beam coverage when uplighting walls, or pixel mapping your set. Add the included diffuser and get a 109° beam angle and a 157° field angle, great for washing catwalks. Or use your diffusers to get the perfect spread. It includes a fixture-to-fixture proprietary alignment system that gives you a continuous pixel look without losing any spacing between pixels. As an IP65 unit, it is protected against inclement weather, making it ideal for temporary outdoor applications. its adjustable mounting base makes it perfect when mounting between truss crossbeams, taking into account features requested by our industry friends.

Mechanical Specifications:
IP Rating: IP65
Housing: Extruded and cast aluminum
Power Connection: Seetronics SAC3MPX Input (Nema 5-15 to
SAC3FX-65 cable included)
Signal Connection: 5 Pin XLR In and Out
Lens Angle: Nominal Beam Angle 17°
Nominal Field Angle 29°
Diffusion Angle: Nominal Beam Angle 109°
Nominal Field Angle 157°

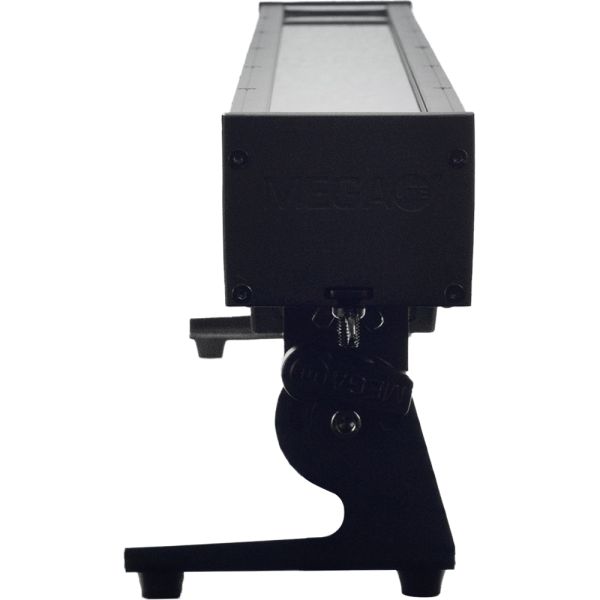

Fastening System: Slide adjusting mounting stands and clamp
mounts

Electrical Specifications:
Light Source: 18 X 20W RGBWW LEDs
Color Temperature (Warm White): 3029K
CRI (Warm White): 80
Lumen Output (Single LED): Standard 346 Lm
With Diffuser 200 Lm
Power Supply: Electronic 90-264V AC 50/60
Power Consumption: 293 Watts 2.51 Amps @110V
Power Link: 6 Units max @110V 15 Amp circuit

Control System:
Control Protocols: DMX 512
RDM: DMX Address, Channel Mode, Temperature
Sensor, Device Hours
Channel Modes: 5 Modes of Operation
Mode 1: 4 Channel mode
Mode 2: 10 Channel mode
Mode 3: 24 Channel mode
Mode 4: 72 Channel mode
Mode 5: 82 Channel mode
Display: LCD

Size and Weight:
Fixture Size: 39.37” X 5.19” X 7.87” (1m x 13.18cm
x 19.98cm)
Fixture Weight: 19lb 12oz
Packaged Size: 41.5” X 6.75” X 8.5”
Packaged Weight: 20lbs
Color Rendering

Included Items:
Power Cable
Diffusion Filter
Manual
