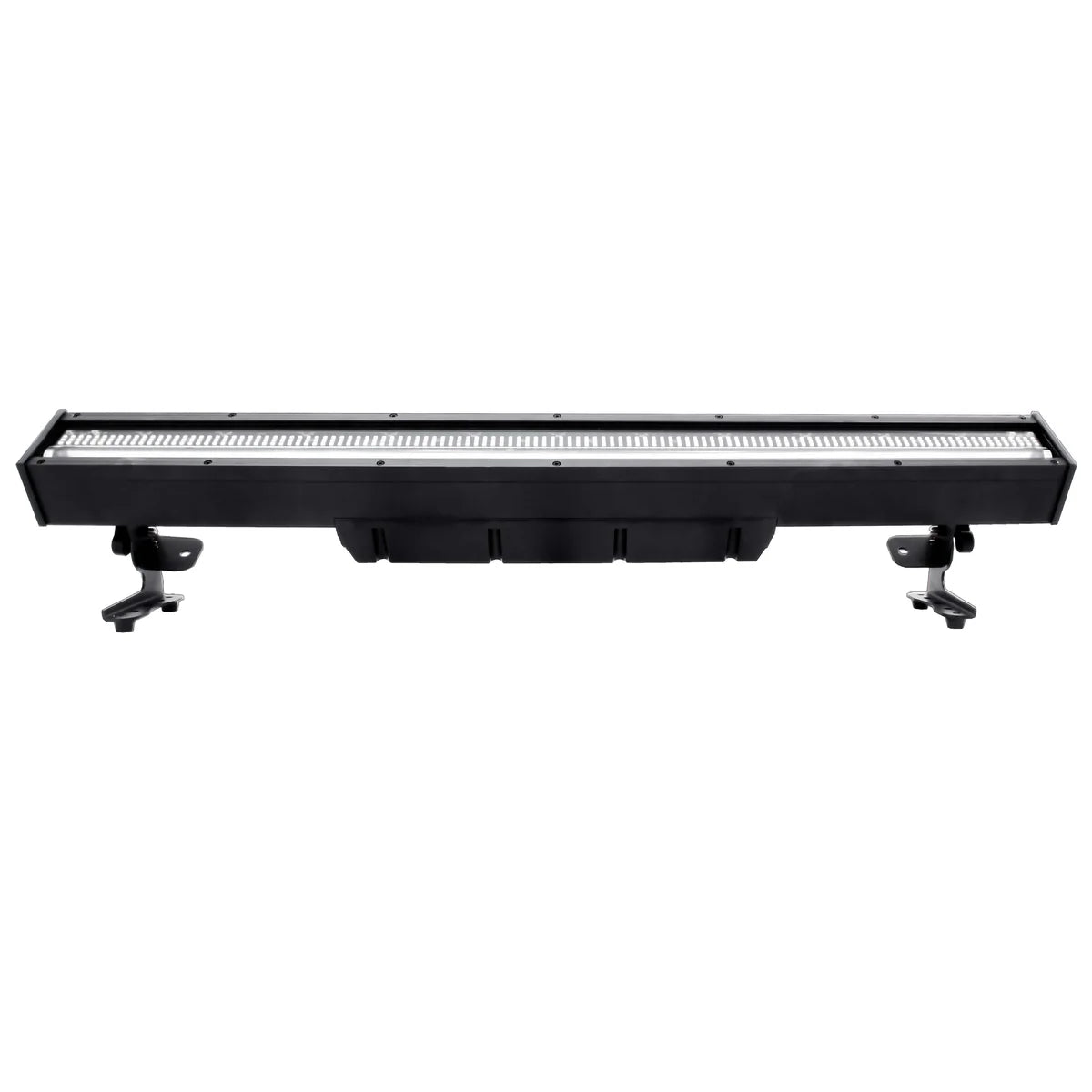

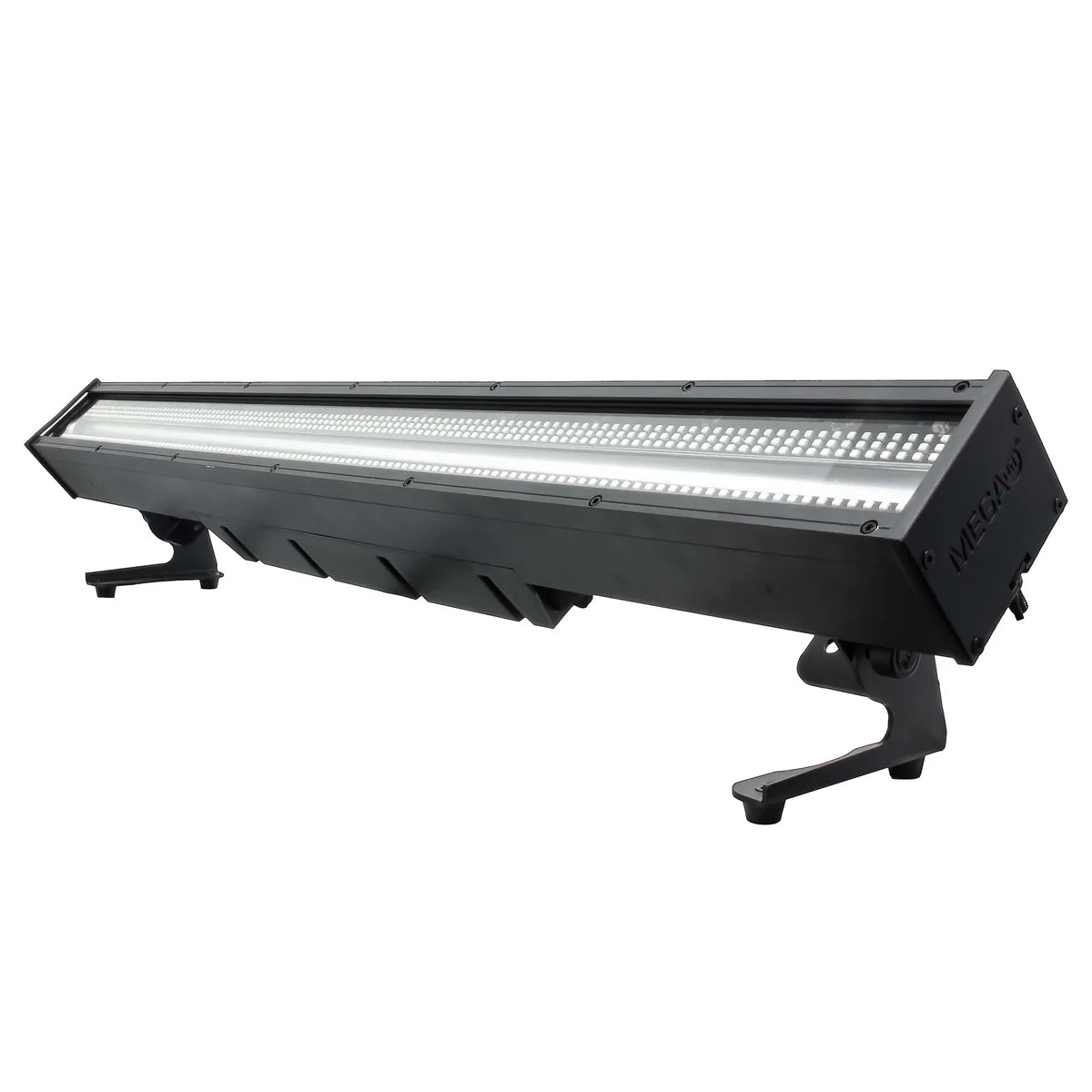

MEGA Lite Outshine Flash Strip TW

The Outshine Flash Strip TW is a unique fixture that combines white and amber LEDS, 4W each, with a total of 240 LEDs as its main element. It is divided into twelve pixels, which can create a burst of light or be pixel-controlled to create a running strobe or flash effect. The unique amber strobe provides a blinder effect with a soft, elegant, warm feel. This primary element is sandwiched between two rows of red, green and blue LEDS with 24 pixels. Each LED is .5W with a total of 720 LEDs.

The included diffuser provides an easy-to-attain soft look to the fixture, making it a light source with a graphical look when needed. As an IP65 unit, it is protected against inclement weather, making it ideal for temporary outdoor applications. Its adjustable mounting base makes it perfect when mounting between truss and crossbeams, taking into account features requested by our industry friends.

Mechanical Specifications:
IP Rating: IP65
Housing: Die-Cast Aluminum
Power Connection: Seetronics SAC3MPX Input (Nema 5-15 to
SAC3Fx-67 cable included)
Signal Connection: 5 Pin XLR In and Out
Fastening System: Adjustable Mounting Yoke

Electrical Specifications:
Light Source: 240 WA 4W LEDs
720 RGB .5W LEDs
Power Supply: Electronic 90-264V AC 50/60
Power Consumption: 627 Watts
5.33 Amps @110V

Control System:
Control Protocols: DMX 512
RDM: DMX Address, Channel Mode, Temperature
Sensor, Device Hours
Channel Modes: 4 Modes of Operation
Mode 1: 5 Channel mode
Mode 2: 14 Channel mode
Mode 3: 96 Channel mode
Mode 4: 110 Channel mode
Display: LCD

Size and Weight:
Fixture Size: 39.37” X 5.25” X 8”
(1m x 13.33cm x 20.32cm)
Fixture Weight: 19.5 lb (8.84kg)
Packaged Size: 41.25” X 6.75” X 8.5”
(104.7cm x 17.14cm x 21.59cm)
Packaged Weight: 21.5 lb
(9.75kg)

Included Items:
Power Cable
Diffusion Filter
Manual
