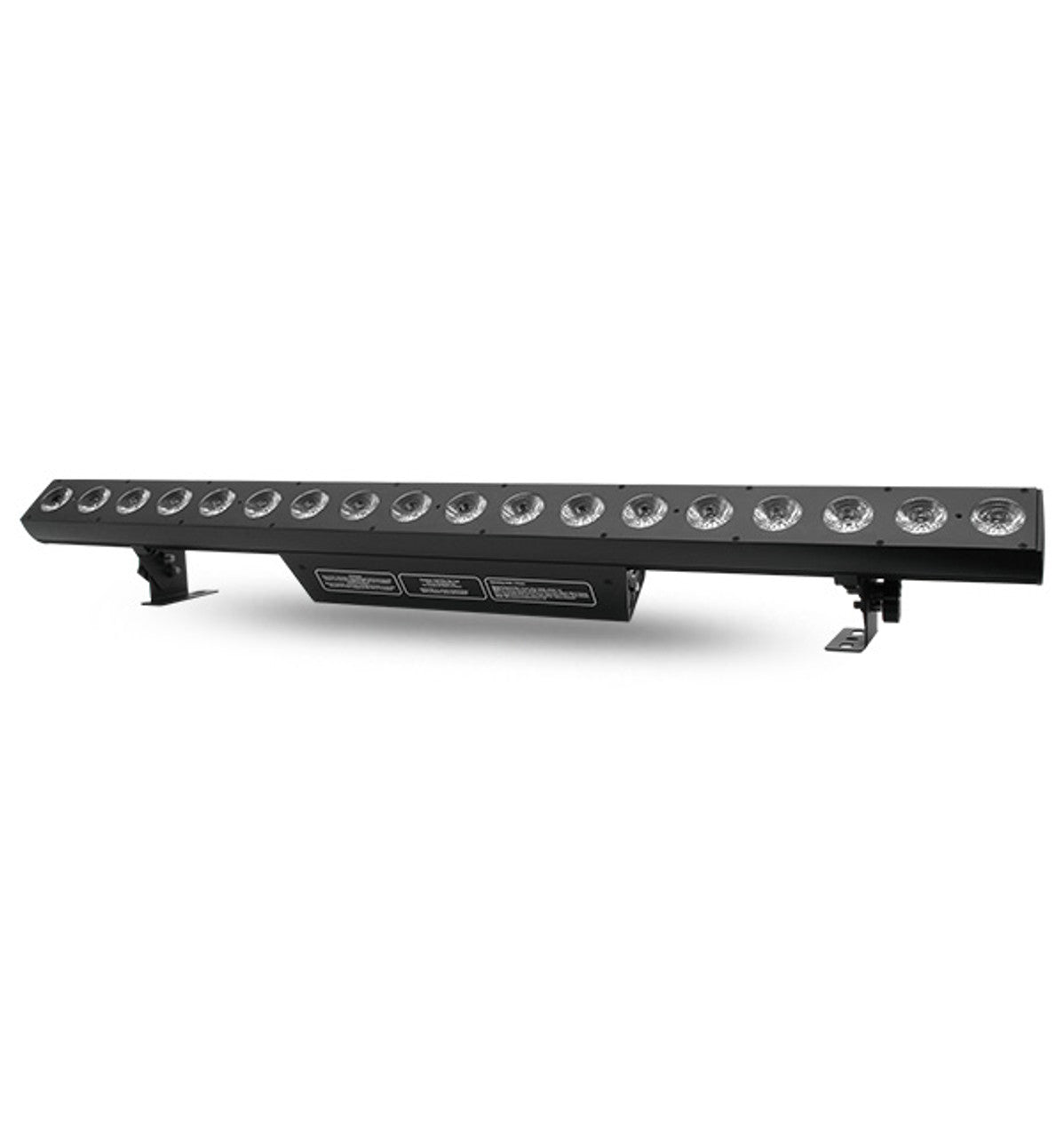

MEGA Lite N-E Pixstrip H216

The N-E Pixstrip H216 features 18 x 12W RGBWAUV LEDs. Each LED offers individual pixel control of the Red, Green, Blue, White, Amber, and UV colors (depending on console compatibilities). The unit features pre-programmed macros with variable speeds and chase effects that can be individually controlled for ease of use. The native 27° angle provides 5490lm, and the included diffuser softens the output and increases the angle to 105°, providing 1908lm. This unit is great for wall washing in permanent application, similar to an affordable CYC. It can also be used as a floor light to light up the performers.

This unit is a convection-cooled strip ideal for locations requiring silent operation.

With its sleek, modern design, multiple fixtures can be grouped to create and eye-catching matrix. The adjustable sliding and center back mounts make the unit practical and simplify the ability to create elaborate setups.

SOURCE:
• LED TYPE: 12W LEDS

OPTICAL SYSTEM:
• LED QUANTITY: 18
• LED ANGLE: 27º
• DIFFUSION ANGLE: 105°

EFFECTS:
• LED COLOR: RED, GREEN, BLUE, WHITE, AMBER & UV
• PIXEL PROTOCOL: 18 PIXEL CONTROL
CONTROL & PROGRAMMING
• DISPLAY: LED
• PROTOCOL: DMX 512
• DMX CHANNELS: 3 MODES OF OPERATION
• ON BOARD FEATURES: PRE-PROGRAMMED MACROS & CHASE EFFECTS

THERMAL & RATINGS:
• MAX AMBIENT TEMP: 40ºC (104ºF)
• MAX SURFACE TEMP: 60ºC (140ºF)
• MAX OPERATING TEMP: 54ºC (130ºF)

ELECTRICAL & CONNECTIONS:
• POWER CONNECTION: PANEL MOUNTED SEETRONIC TYPE POWER IN/OUT CONNECTION
• DMX CONNECTORS: PANEL MOUNTED 3 & 5 PIN XLR CONNECTIONS IN/OUT
• POWER INPUT: UNIVERSAL 90-264V 50/60 HZ
• POWER CONSUMPTION: 126 WATTS | 1.5 AMPS @ 110V

RIGGING:
• INSTALLATION SYSTEM: DUAL SLIDING CLAMP MOUNTS

ORDERING INFO: PART NUMBER:
• N-E PIXSTRIP H216 4055

ACCESSORIES:
• 4 UNIT ROAD CASE CAS-4055-4

INCLUDED ITEMS:
• DIFFUSION LENS 4055-DIF
• POWER CABLE 4055-POW

DIMENSIONS:
• FIXTURE SIZE: 39.76” X 3.94” X 5.28”
• FIXTURE WEIGHT: 10 Ib (4.5 kg)
• PACKAGED SIZE: 41” X 5.5” X 7”
• PACKAGED WEIGHT: 11.5 Ib (5.2 kg)
