MGL-MC1071
MGL-MC1071

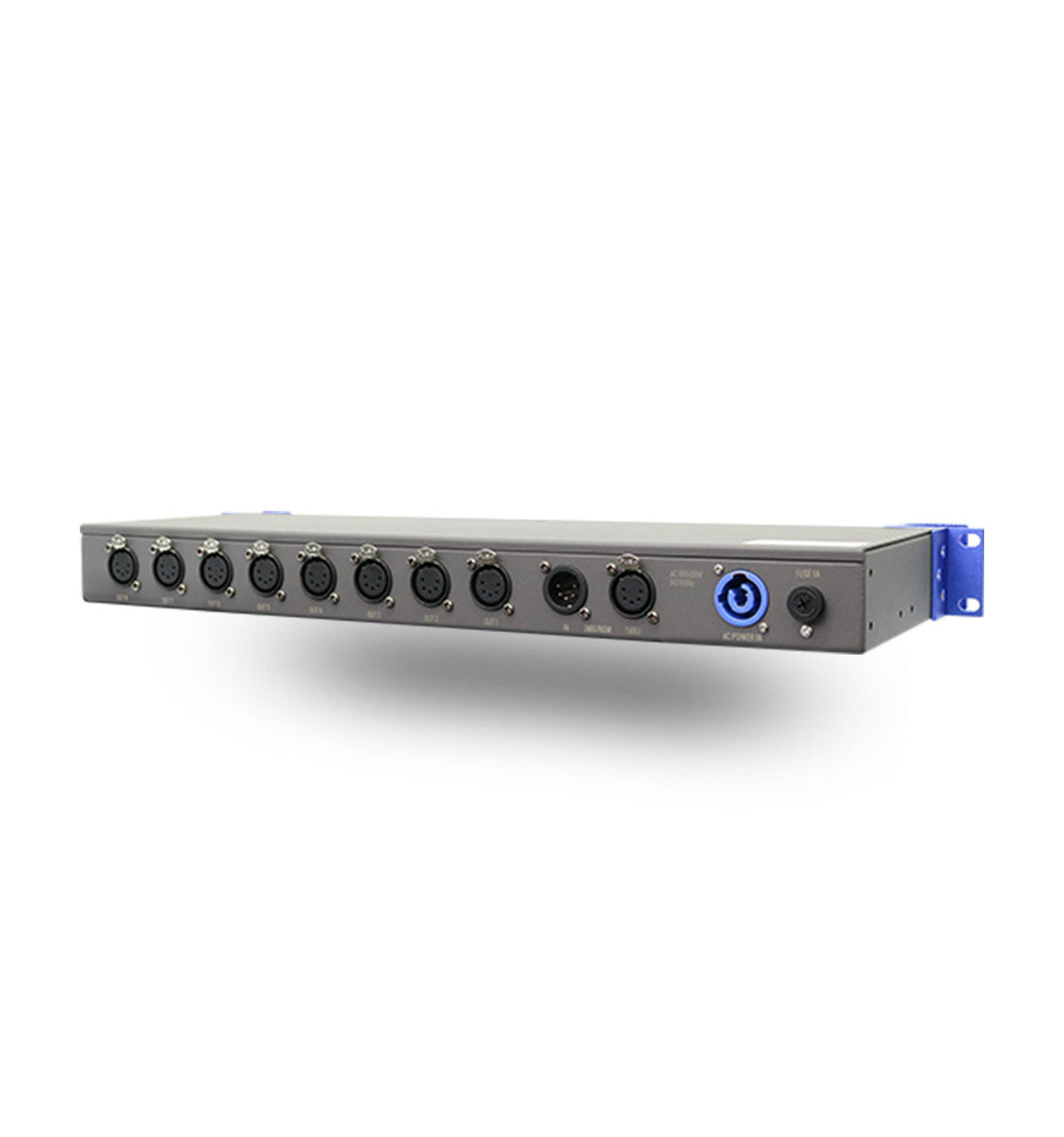

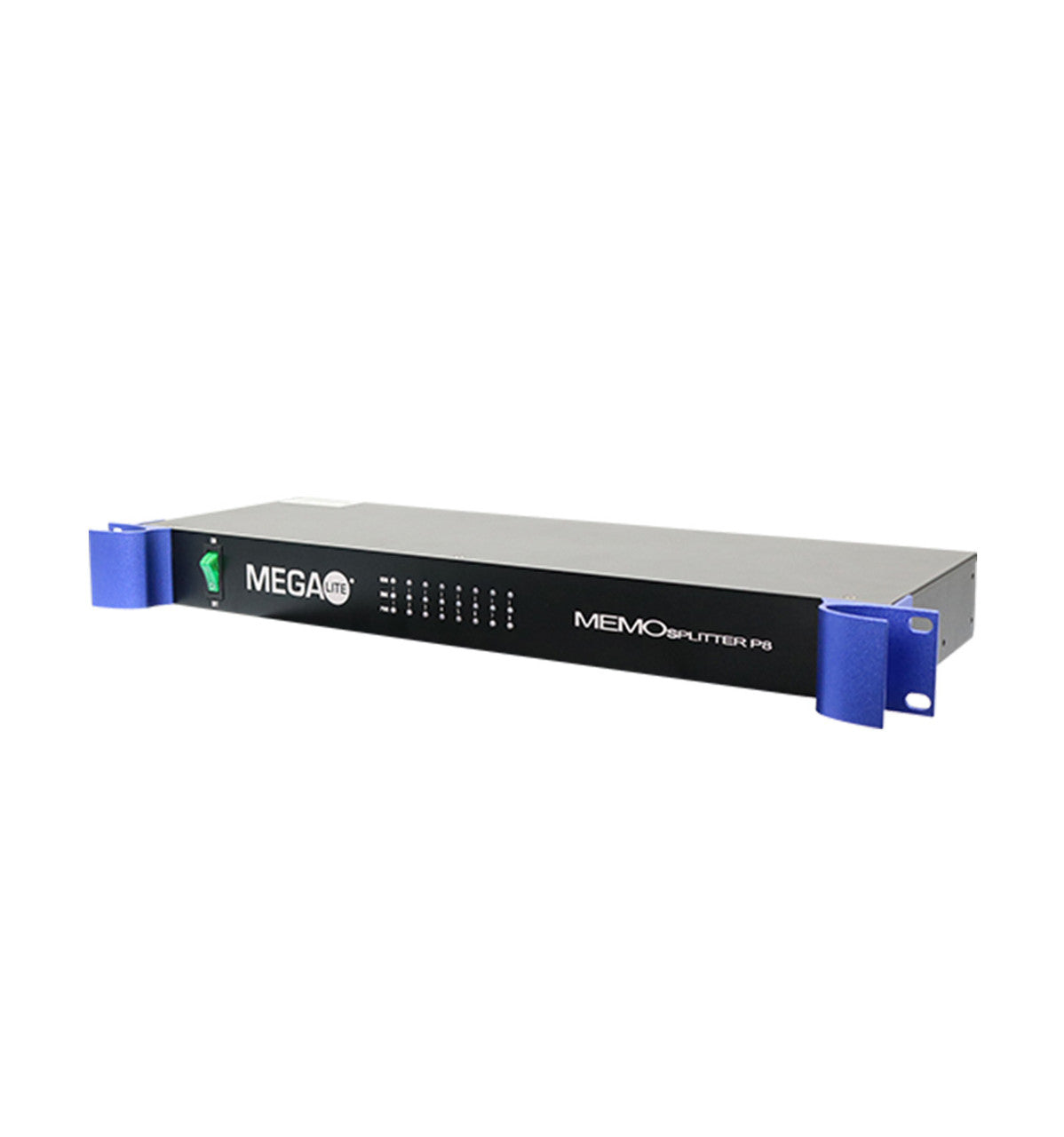

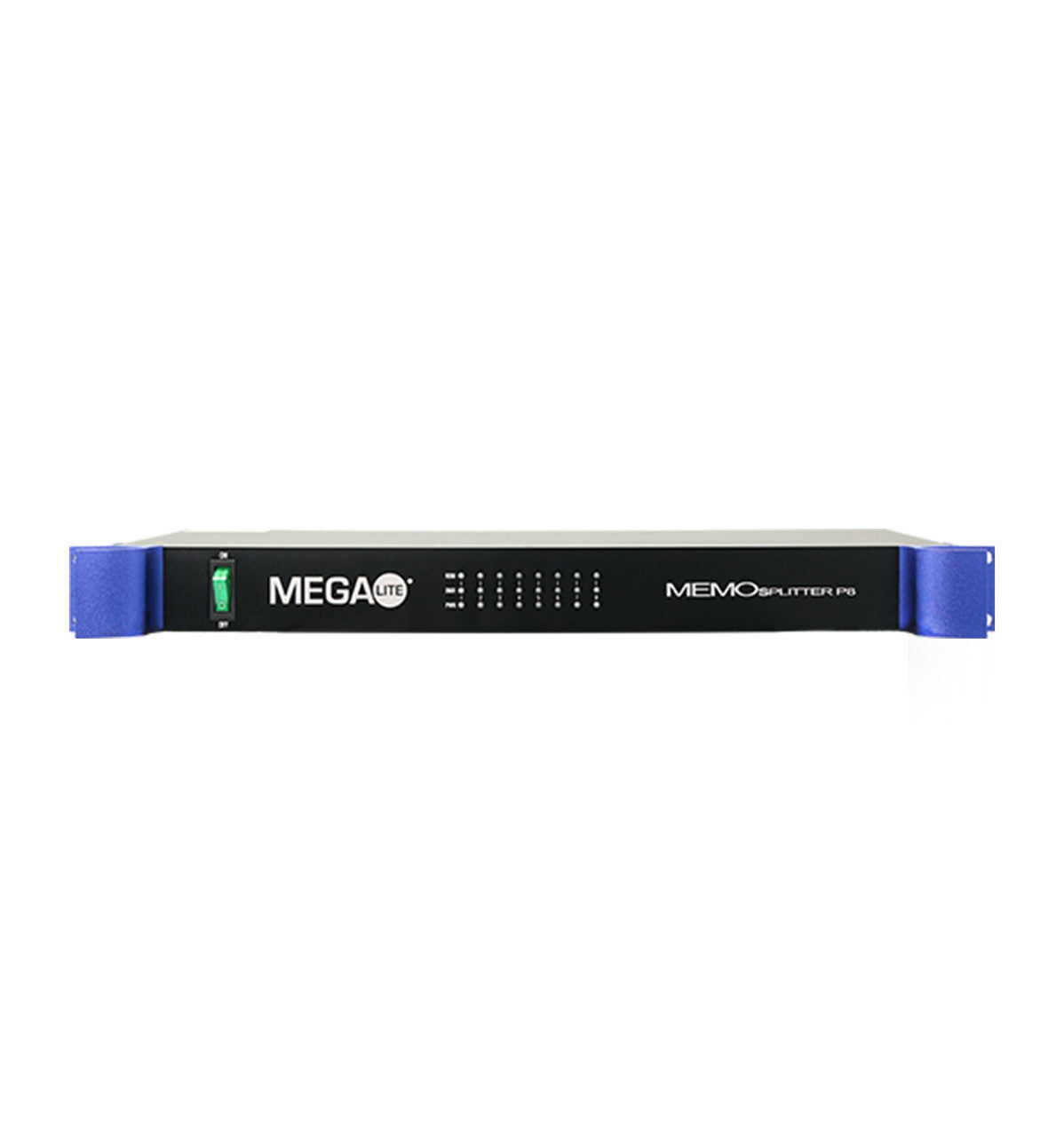

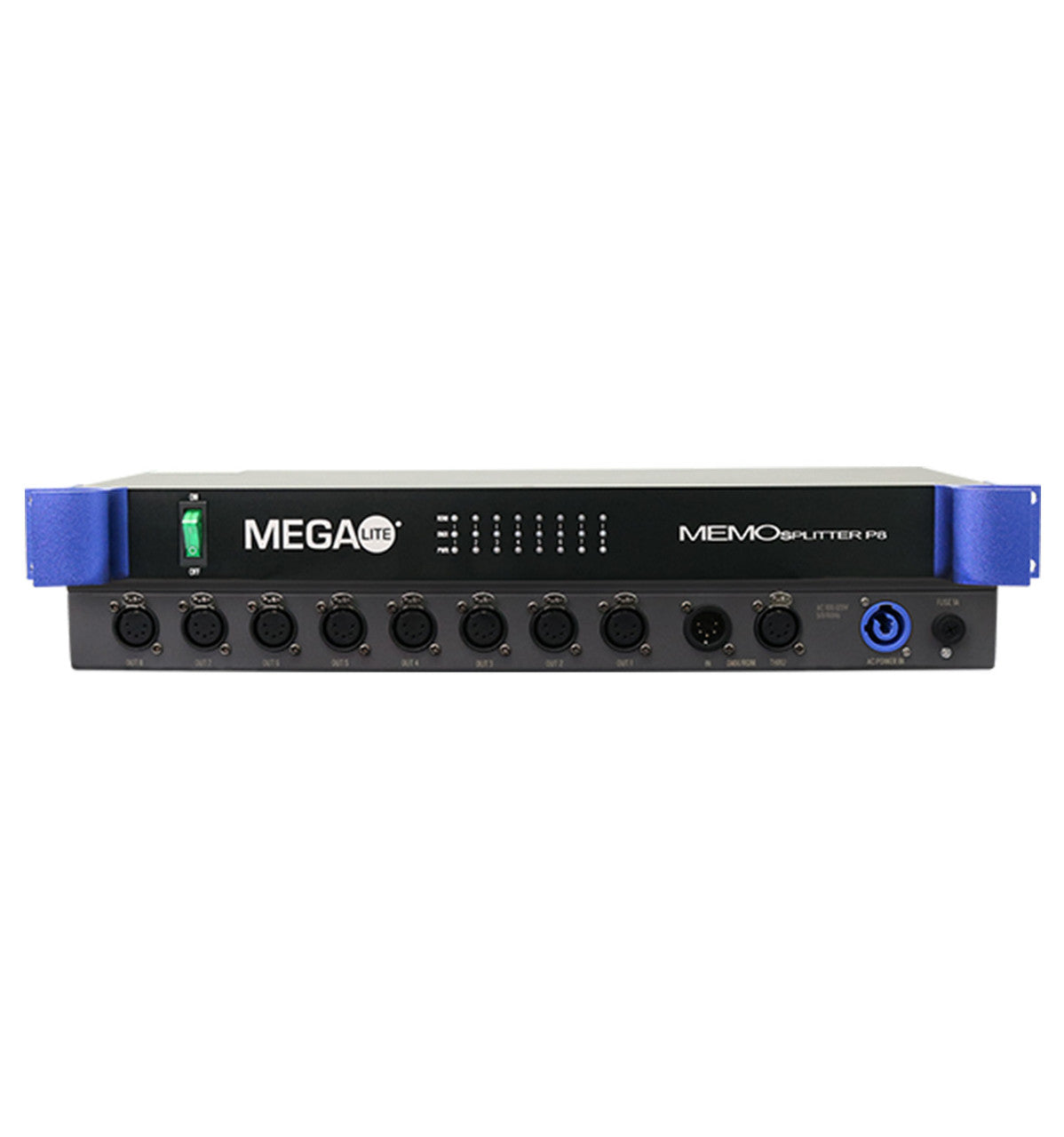

The Memo Splitter P8 is designed for production applications and is the ultimate DMX signal amplifier and distributor, while also supporting bidirectional RDM signal. This powerful device empowers lighting professionals to split a single universe signal into eight separate outputs while boosting its signal strength, ensuring communication between controllers and DMX lighting fixtures.
Perfect for stage production applications and more, the Memo Splitter P8 gives you the capability to achieve intricate lighting arrangements with ease. Improve signal integrity, and take full advantage of RDM features for greater control over your lighting fixtures. Upgrade your lighting setups today and experience unparalleled control with the Memo Splitter P8.
| SPECIFICATIONS | MC1071 |
|---|---|
| FASTENING SYSTEM | 1U RACK MOUNTABLE FRONT OR BACK & WALL MOUNTABLE |
| INPUT DMX CONNECTIONS | REAR 5 PIN XLR CONNECTORS IN AND OUT |
| POWER CONNECTION | POWERCON TYPE (POWERCON TO NEMA 5-15 CABLE INCLUDED) |
| OUTPUT DMX CONNECTORS | 8 OUTPUTS 5 PIN XLR CONNECTORS |
| OUTPUTS | EIGHT (8) |
| OUTPUT ISOLATION | OPTO ISOLATED (EACH) |
| RDM SIGNAL | BOOST, REPEAT CLEANS AND REGENERATES RDM SIGNAL |
| SIGNAL LINES | PREVENTS REFLECTION |
| SIGNAL INDICATORS | POWER, DMX, RDM |
| COMPLIANT | RDM E 1.20 |
| POWER INPUT | 90-120-AC 60Hz |
| RDM | YES |
| DMX-512 | YES |
| UNIVERSES | ONE (1) |
| FIXTURE SIZE & WEIGHT | 19" X 7.25" X 1.75" & 6 LBS |
| PACKAGED SIZE & WEIGHT | 21.6" X 9.5" X 3" & 7 LBS |
