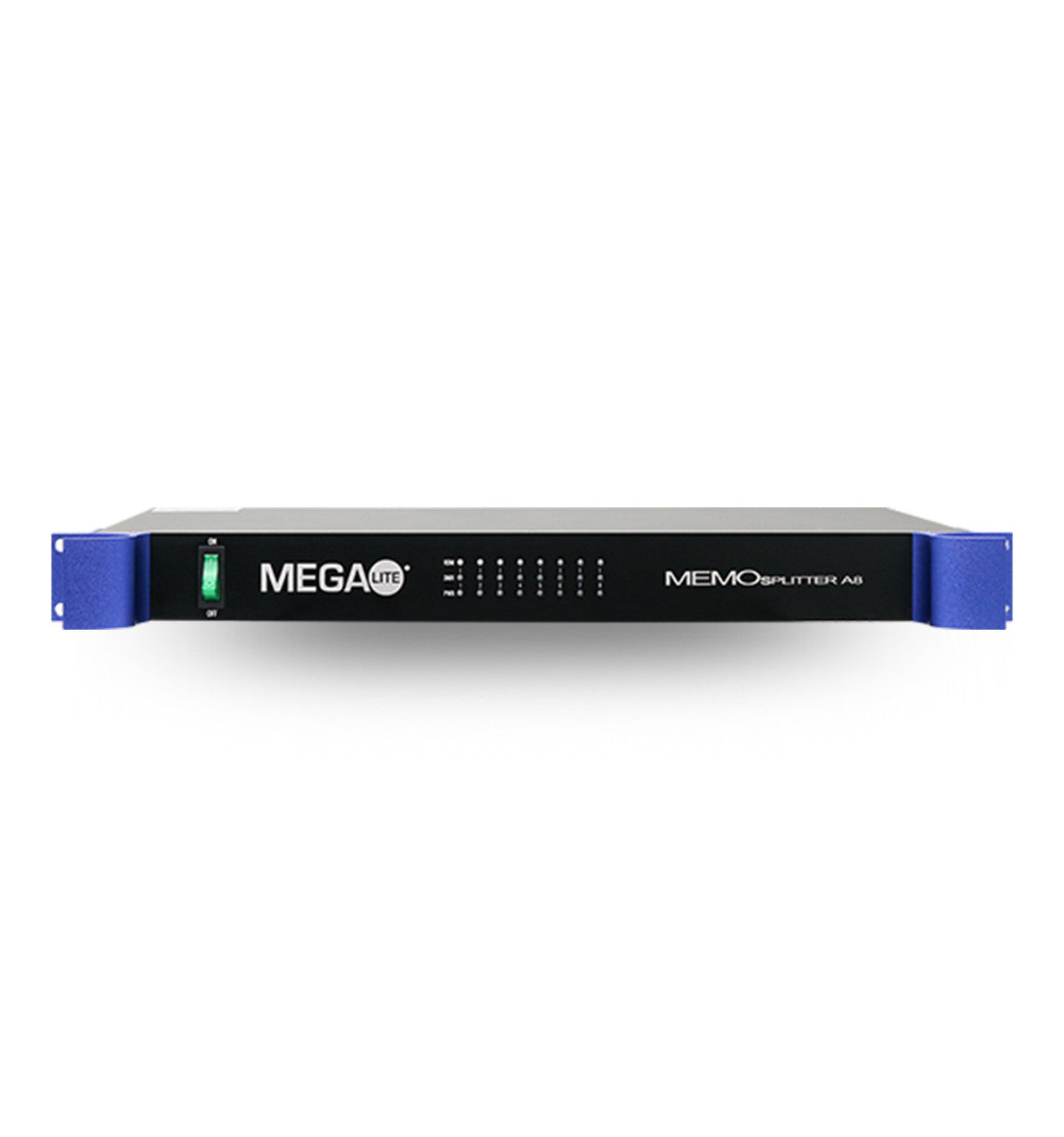

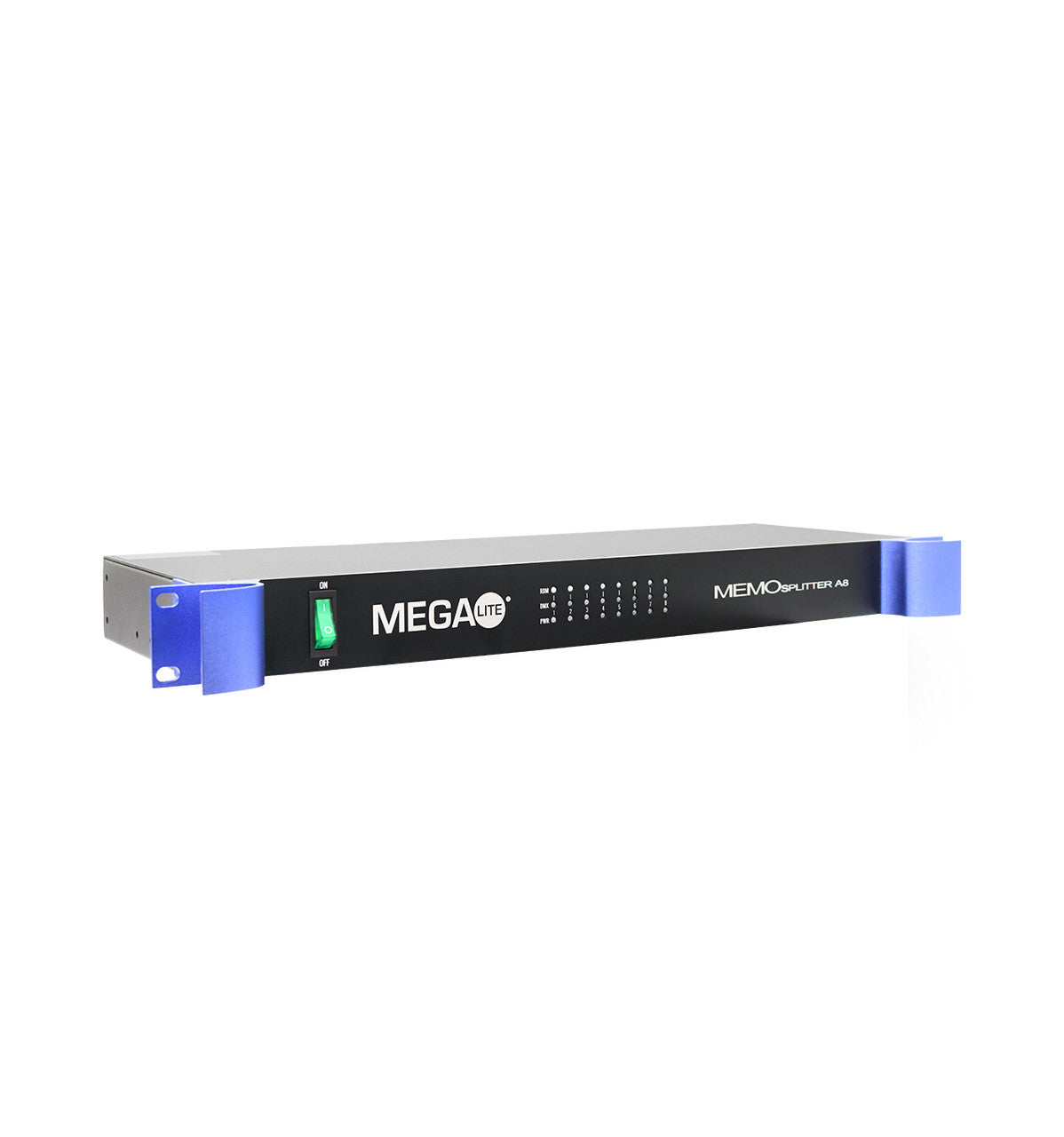

MEGA Lite Memo Splitter A8

The Memo Splitter A8 is designed for architectural installation applications and is the ultimate DMX signal amplifier, distributor, and supports bidirectional RDM signal. This powerful device empowers lighting professionals to split a single universe signal into eight separate outputs while boosting its signal strength, ensuring communication between controllers and DMX lighting fixtures.

Ideal for live events, concerts, architectural lighting, and more, the Memo Splitter A8 empowers you to achieve complex lighting arrangements with ease. Improve signal integrity and take full advantage of RDM features for greater control over your lighting fixtures. Upgrade your lighting setups today and experience unparalleled precision and reliability like never before.

Mechanical Specifications:

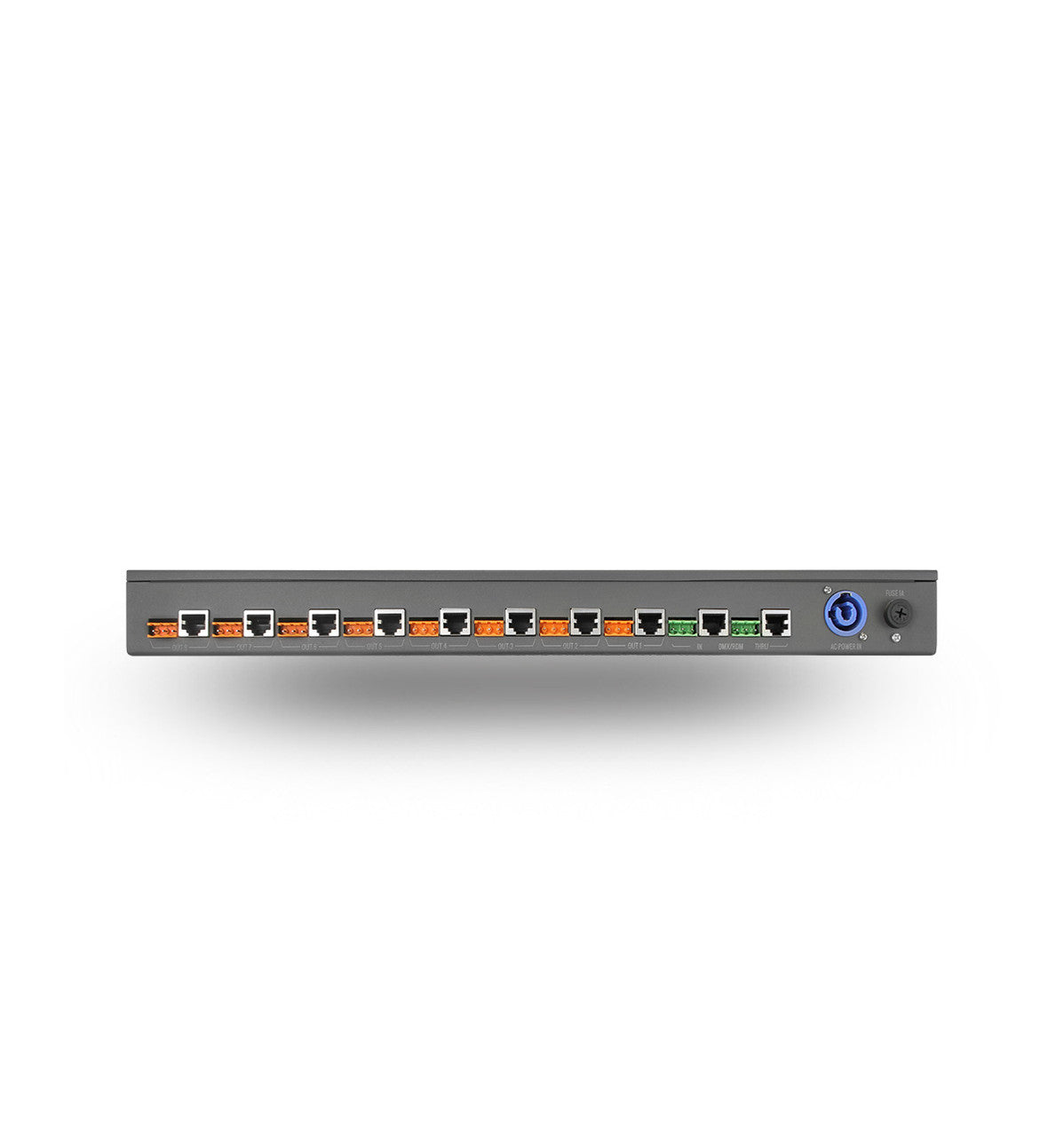

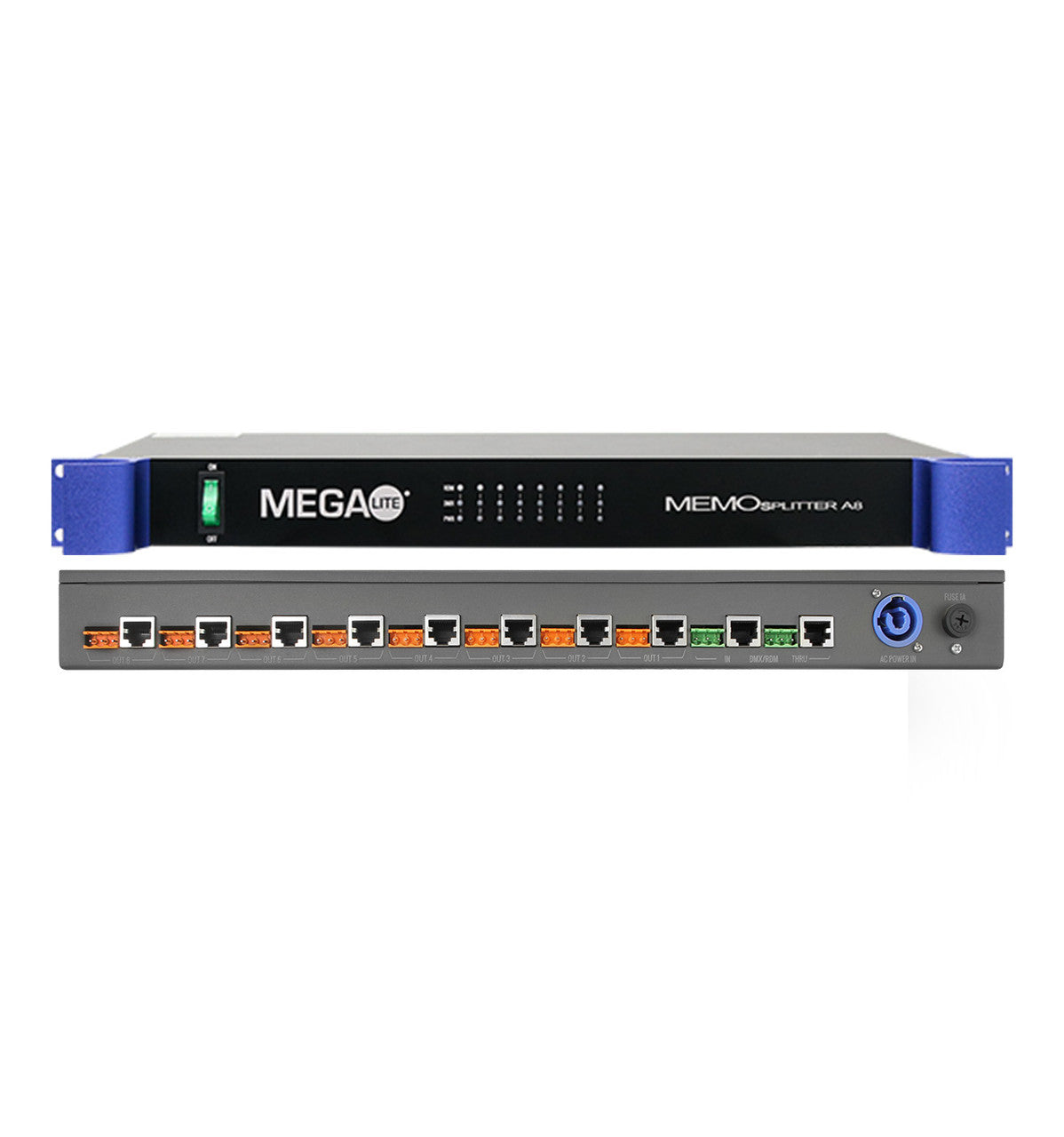

Input DMX Connections: In and Thru RJ45 & In and Thru 3 Port Screw Terminal
Output DMX Connectors: 8 Output RJ45 & 8 Output 3 Pin Screw Terminal (Can Only Use One Type At A Time)
Power Connection: PowerCon Type (PowerCon to Nema 5-15 Cable Included)
Fastening System: 1U Rack Mountable Front or Back & Wall Mountable (Hardware Included)

Electrical Specifications:
Outputs: Eight (8)
Input Isolation: Yes
RDM Signal: Boost, Repeat Cleans and Regenerates RDM Signal
Signal Lines: Prevents Reflection
Display: LED Signal Indicators
Compliant: RDM E 1.20
Power Consumption: .6 Amps @ 110V AC 60Hz
Power Input: 90-120-AC 60Hz

Control System:
RDM: Yes
DMX-512: Yes
Universes: Single Universe

Size and Weight:
Fixture Size: 19” x 7.25” x 1.75”
Fixture Weight: 6 lbs
Packaged Size: 21.6” x 9.5” x 3”
Packaged Weight: 7 lbs

Included Items:
Part Number: MEMO Splitter A8 MC1070
Part Number: Input Green Screw Terminals
(3 Position) #MC1070-CON-GRE
Part Number: Output Orange Screw Terminals
(3 Position) #MC1070-CON-ORA
Part Number: Removable Rear Ears & Wall Mount
Hardware #MC1060-HAR-RAC
