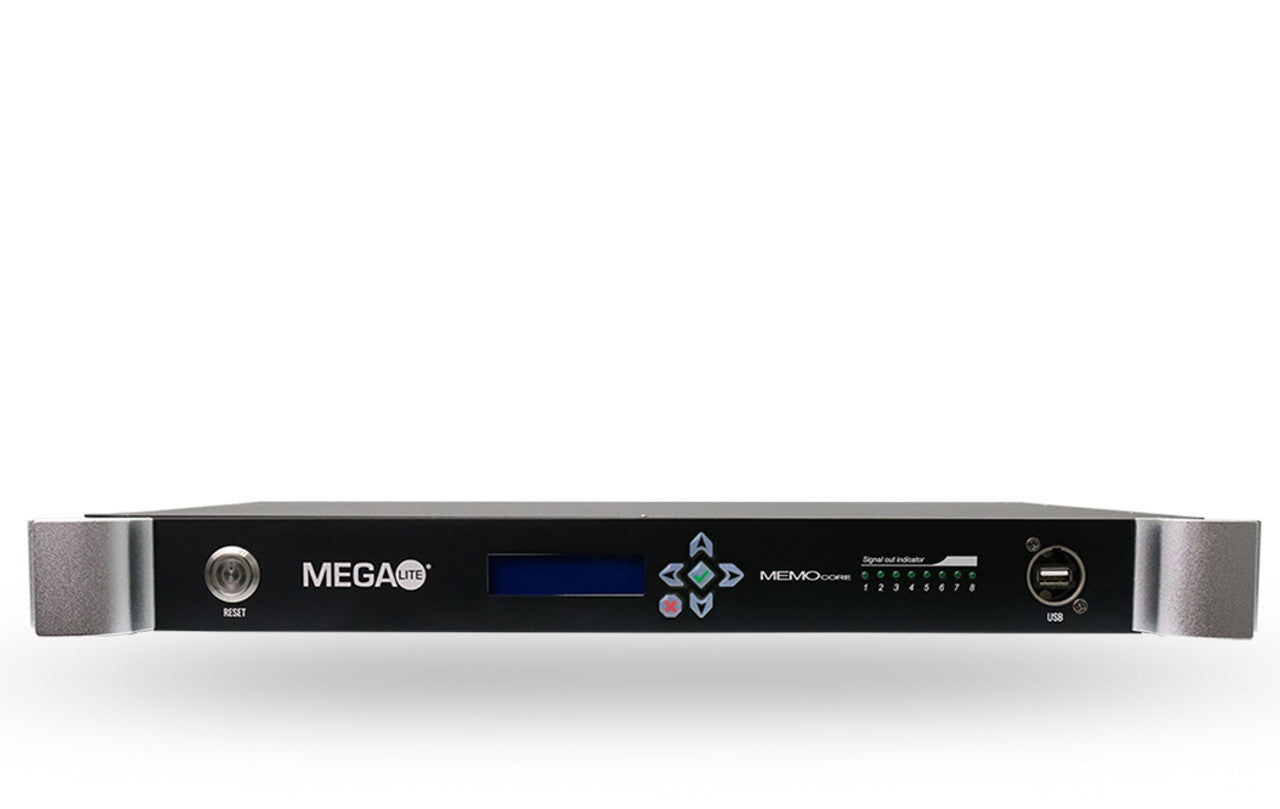

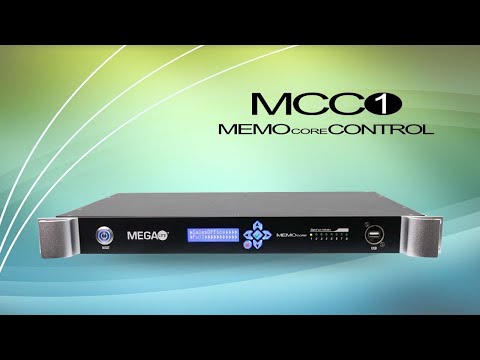

MEGA Lite Memo Core Control MCC1

The Memo Core Control (MCC1) unit is designed as a compact, cost effective but powerful lighting control solution for integration applications such as house lighting, museums, themed environments, restaurants, houses of worship and more. Packed with innovative features, the 1U rack space self-contained unit uses the evolving Enlighten Control Software platform that provides powered solutions which includes pixel mapping matrix, as well as advanced moving light features and all your static light control needs.

The MCC1 facilitates the triggering of looks based on sunset to sunrise and date and time. Additional triggers can be controlled via many web remote, cellphone, tablet, PC, or a multitude of Memo remote wall panels. The MCC1 video function allows you to trigger video and lighting simultaneously. It offers an open API which makes it easier to integrate other compatible audiovisual and integration equipment.

To further enhance capabilities, the unit comes with 8 universes of driving power, giving you the freedom to control a large lighting system from one single compact unit. Keeping in mind the different types of applications, the MCC1 can be ordered with DMX over RJ45 or 5 Pin XLR outputs.

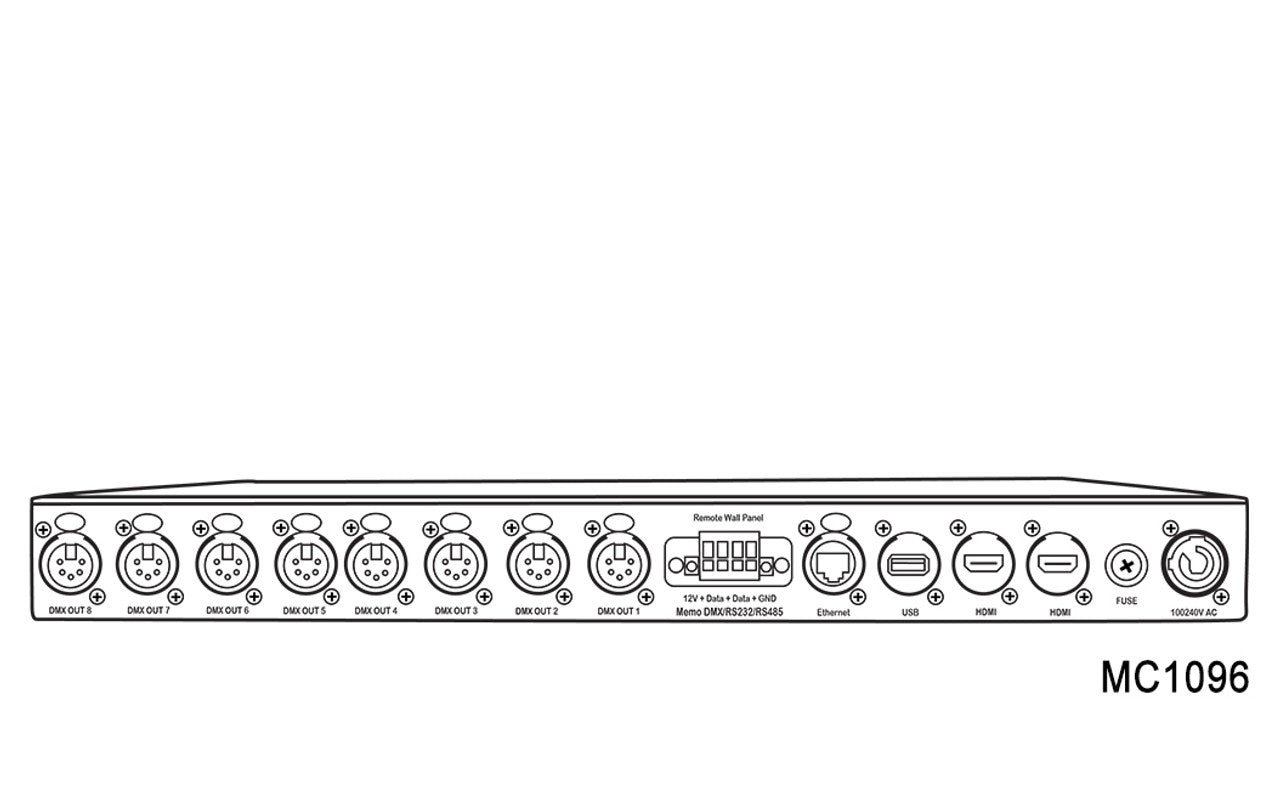

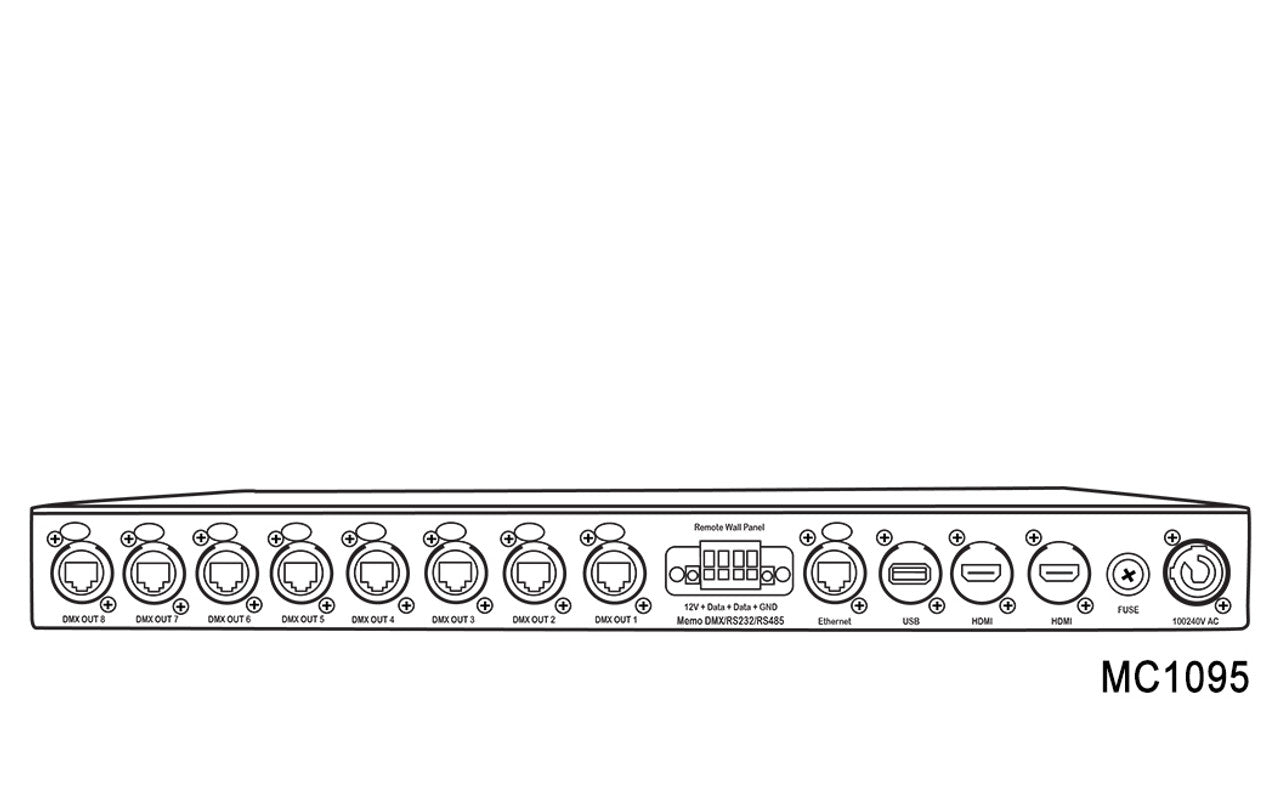

REAR INPUTS/OUTPUTS:
• OUTPUT OPTIONS: 8 DMX OVER RJ45 OR 8 DMX 5 PIN XLR
• UNIVERSES: 8 REAR UNIVERSES OUT
• ETHERNET: REMOTE DESKTOP/ WEB REMOTE/ HTTP [OPEN API]
• HDMI: SINGLE LAYER HD VIDEO 1920 X 1080 @ 30FPS MAX, AUDIO EMBEDDED
• MONITOR: HDMI OUTPUT FOR SOFTWARE MONITOR VIEW
• SCREW TERMINALS: 1 SCREW TERMINAL CONNECTION FOR MEMO REMOTE, RS232 OR RS485 [SPECIFY WITH ORDER]
• USB: 1 USB 3 FOR INCLUDED BLUETOOTH KEYBOARD AND MOUSE COMBO

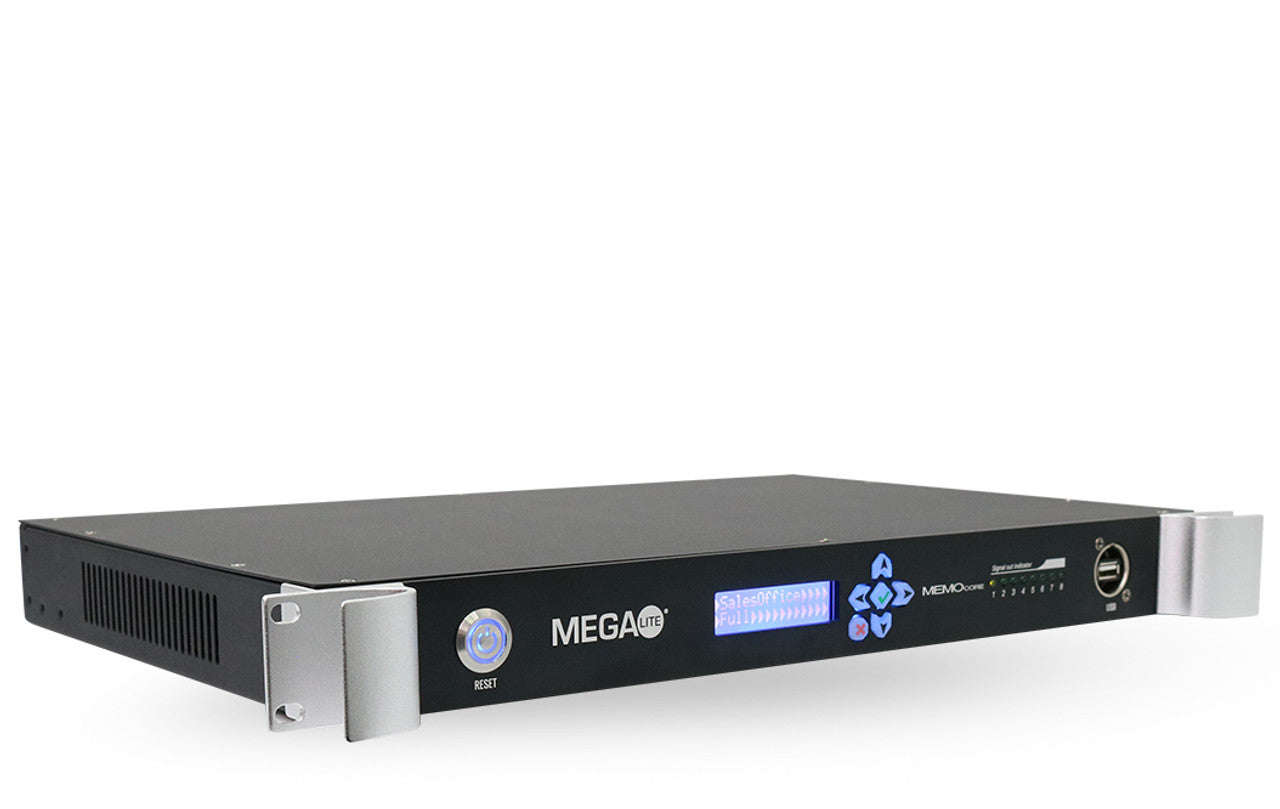

FRONT INPUTS/OUTPUTS:
• USB: 1 USB 3 FOR BACKUP & RESTORE

PHYSICAL ATTRIBUTES:
• HOUSING: BLACK POWDER COATED
• FASTENING SYSTEM: REMOVABLE RACK EARS FOR WALL, RACK & REAR RACK

MOUNTING:
• DISPLAY CONTROL: 6 BUTTON FUNCTION
• RESET BUTTON: CPU RESET BUTTON
• ASSEMBLY: ASSEMBLED IN USA

POWER:
• POWER CONSUMPTION: 40 WATTS @ 120V AC
• POWER SUPPLY: 100-240V 50/60 HZ
• POWER CONNECTION: POWER CON TYPE CABLE MOUNTED TO NEMA 5-15

CONNECTION:
• POWER FUSE TYPE: F2 240V (5MM X 20MM)

THERMAL & RATINGS:
• COOLING: 1 FAN WITH HEAT SENSOR
• POWER CERTIFICATION: UL LISTED POWER SUPPLY
• WORKING AMBIENT TEMP: 24º F- 148º F
• IP RATING: IP20

SOFTWARE CAPABILITY:
• CONTROL SOFTWARE: ENLIGHTEN [MEMO CORE ENGINE]
• OUTPUT CONFIGURATION: DMX 512
• PC REQUIREMENTS: EMBEDDED CPU

INCLUDED ITEMS:
• 1 MEMO CORE CONTROL
• 1 POWER CON TYPE CABLE
• REMOVABLE RACK EARS
• 1 USB DRIVE WITH SOFTWARE
• 1 BLUETOOTH KEYBOARD
• 1 BLUETOOTH MOUSE
