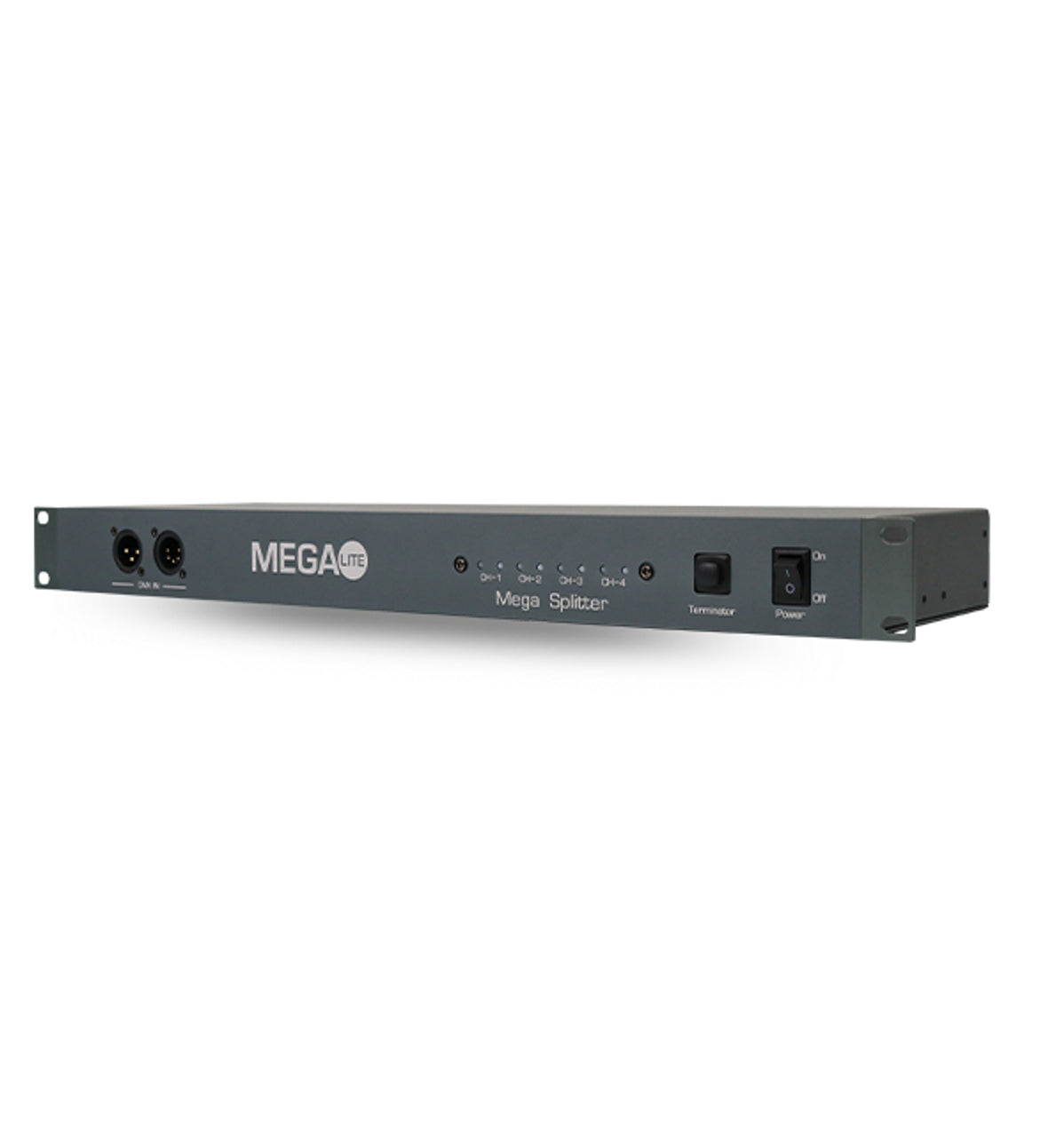

MEGA Lite Mega Splitter 1 Input and 4 Outputs

The Mega Splitter is a DMX 512 signal splitter with one input and four outputs. Each output has both 3-pin and 5-pin XLR connectors. Electronic isolation is used between inputs and outputs.

Mechanical Specifications:

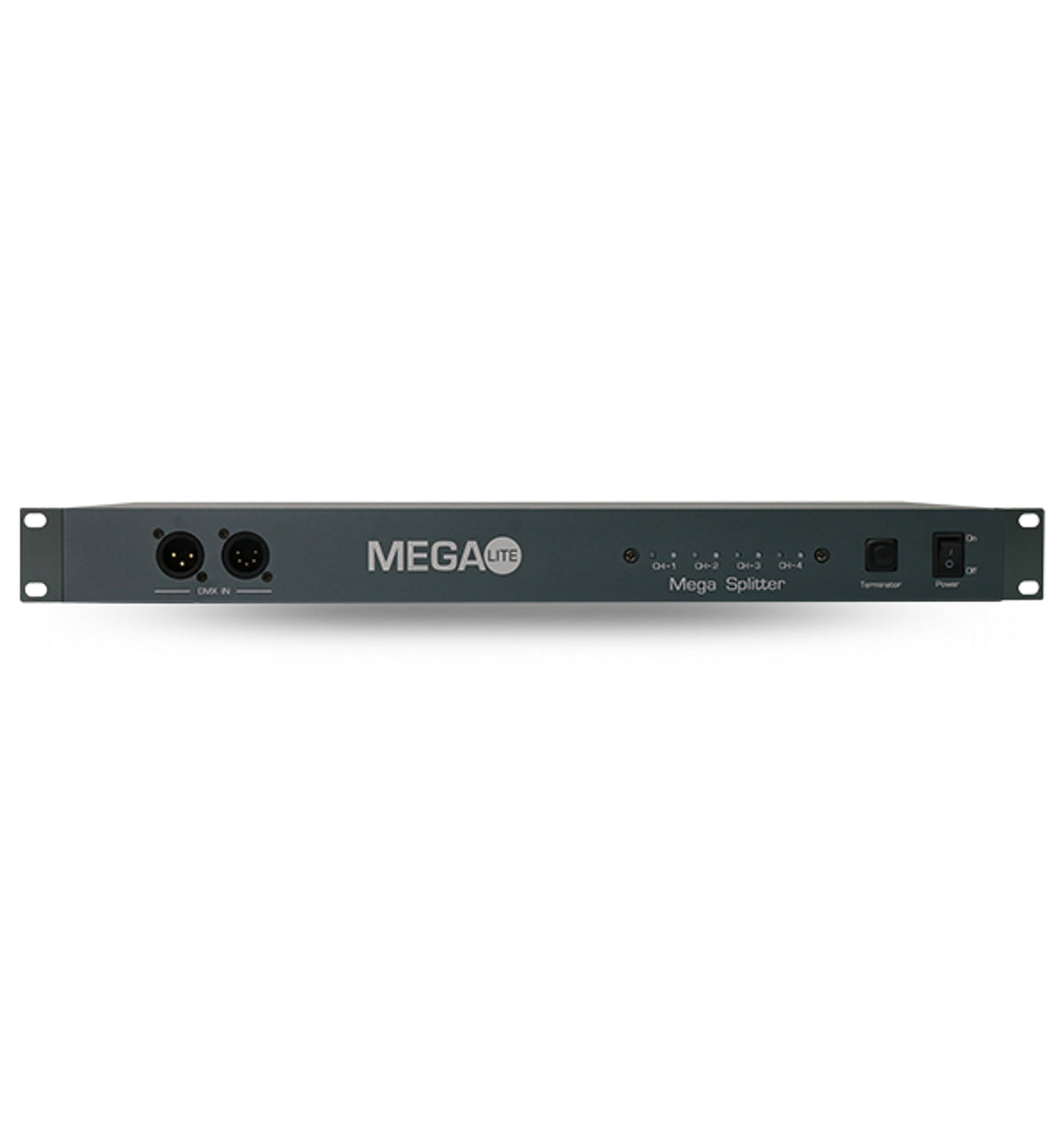

Input DMX Connections: Front and Rear 3-pin & 5 Pin XLR connectors

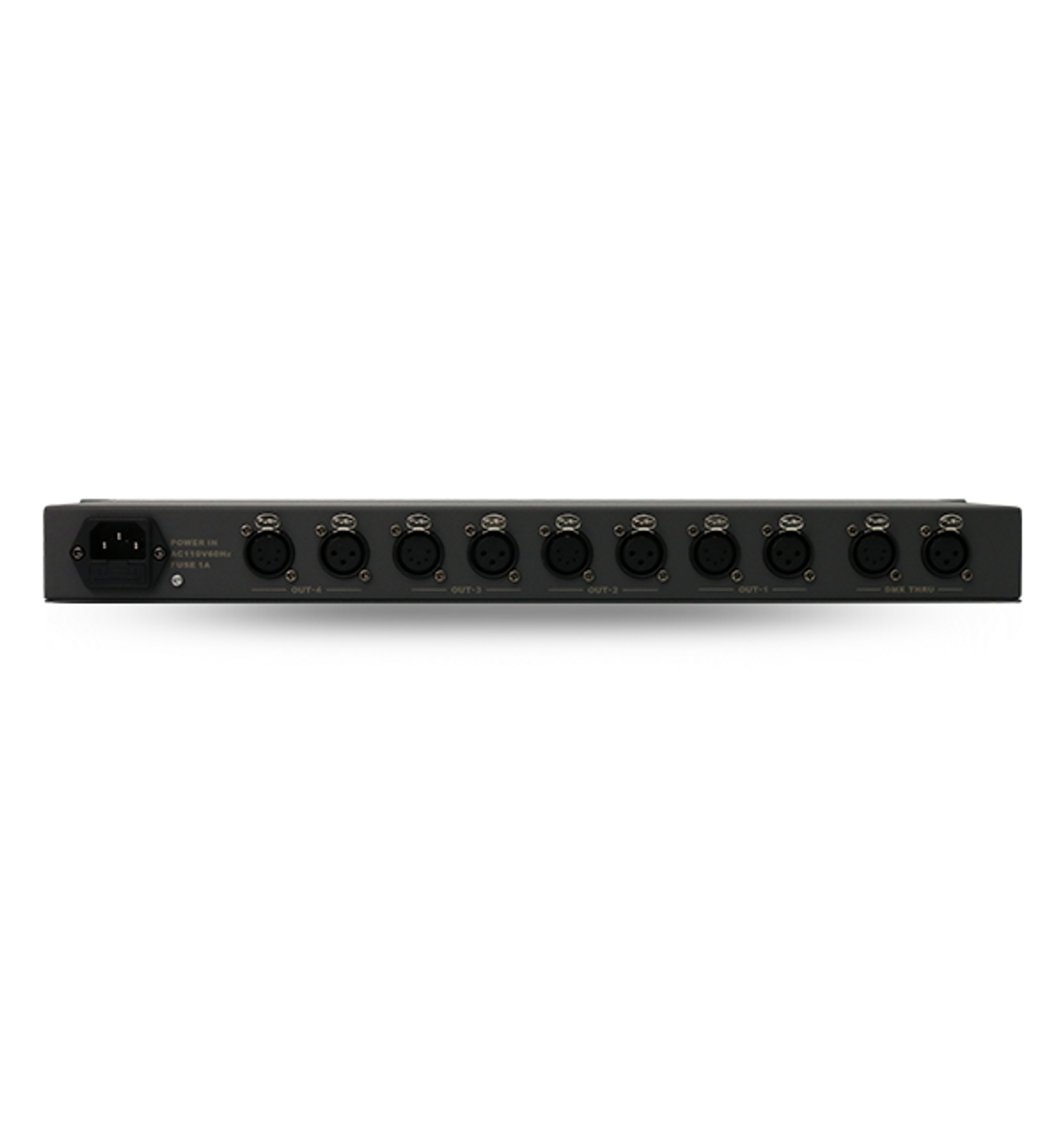

Output DMX Connectors: 4 output / 3-pin & 5 Pin XLR connectors
Power Connection: IEC power connection to Edison
Fastening System: 1U Rack Mountable Front or Back & wall mountable

Size and Weight:
Size: 19” x 1.75” x 3”
Weight: 5 lb
Packaged Size: 20” x 7.5” x 3”
Packaged Weight: 6 lbs

Electrical Specifications:
Electronic isolation between input & output
Electronic isolation between output and output
Terminator button for last unit
Power indicator
Signal indicator
Power Consumption: 110V-60 Hz
