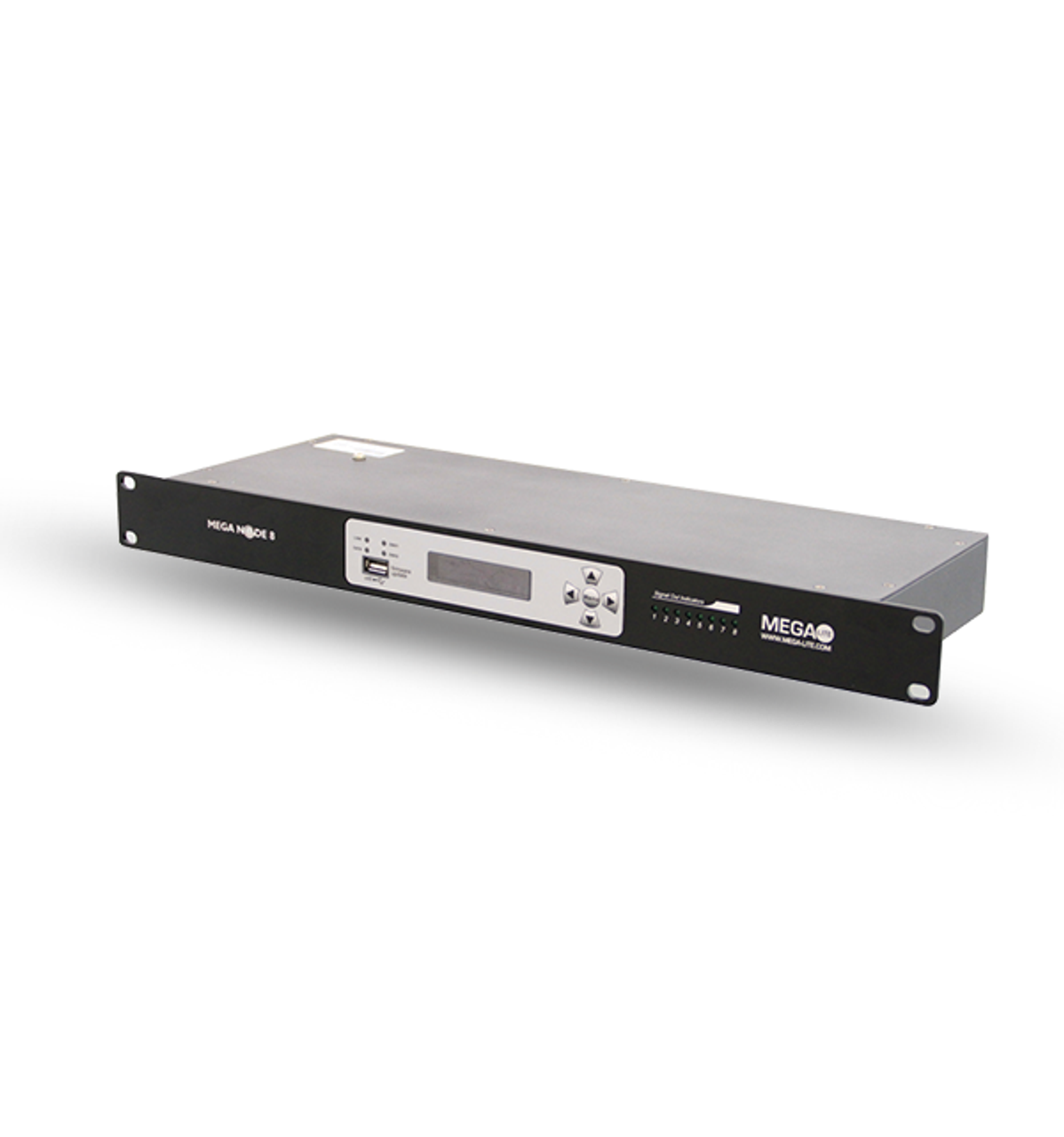

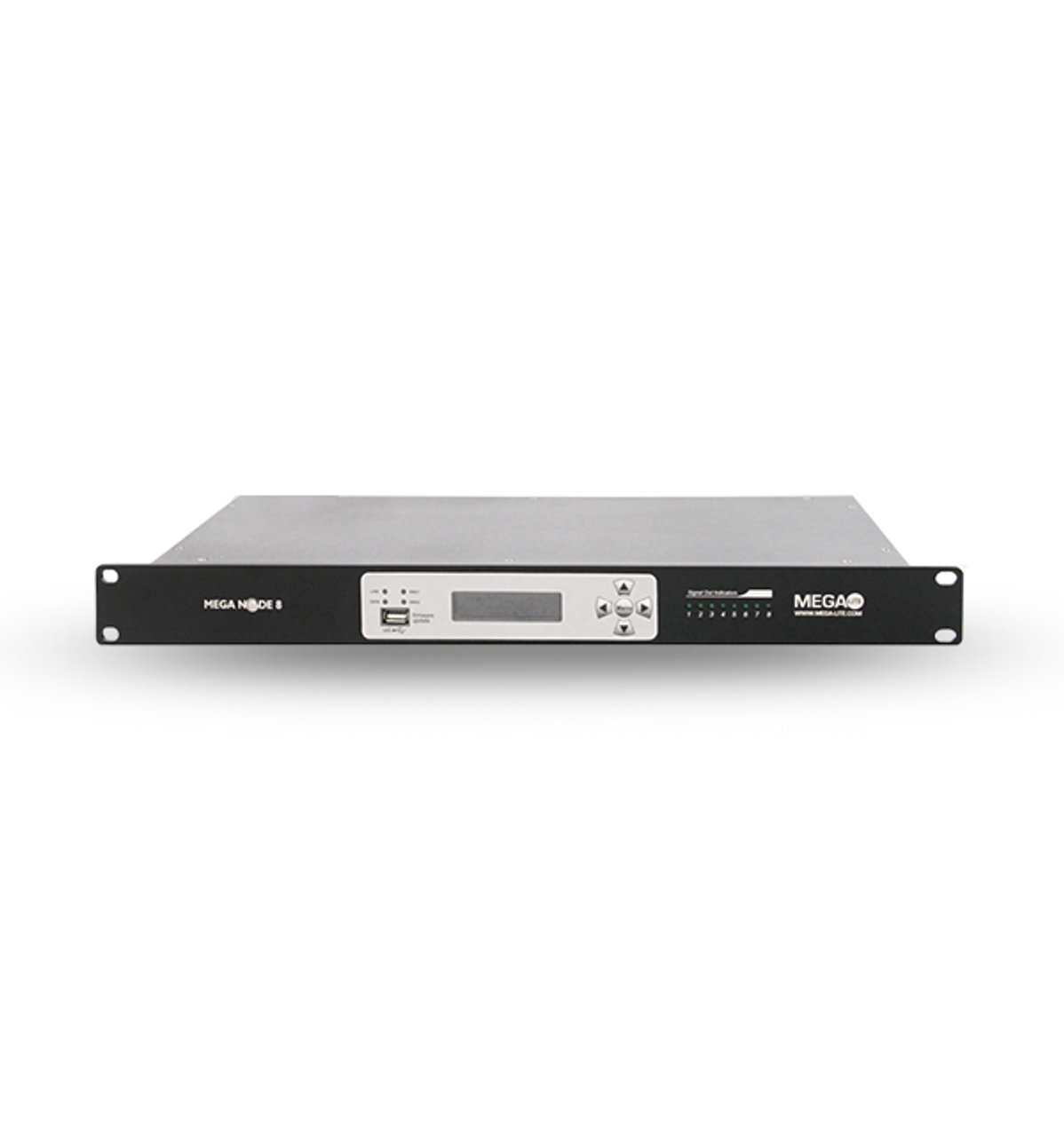

Eight port Art-Net rack-mountable DMX interface
The Mega Node 8 is a versatile Art-Net to DMX adapter designed to expand DMX networks. Each node converts Ethernet data into 8 universes of DMX signal. Pair one or more nodes with Enlighten, Disco, or Lumen8 products to add up to 24 additional universes and give yourself better control over your setup.
| ITEM ID: | MC2051 |
|---|---|
| POWER INPUT: | AC 100-240V 50-60Hz |
| POWER CONSUMPTION: | 6W |
| DATA INPUTS: | EtherCon & 3 Pin XLR In (or 5 Pin) |
| DATA OUTPUTS: | 8 x 3 Pin XLR Out (or 5 Pin) Data |
| THRU: | EtherCon |
| PORTS: | 8 Universal DMX Ports |
| CONNECTORS: | 2 RJ45 TCP/IP 10/100M Ethernet Connectors |
| SIGNAL CONVERSION: | ArtNet to DMX Signal Conversion |
| INPUT/OUTPUTS: | 2 Inputs to 8 Outputs DMX Splitter Function |
| LED INDICATOR: | LED Indicator for Each Output |
| DISPLAY: | 16 x 2 Digits LCD Menu/Function Display |
| UPDATING: | USB port for Firmware Updating |
