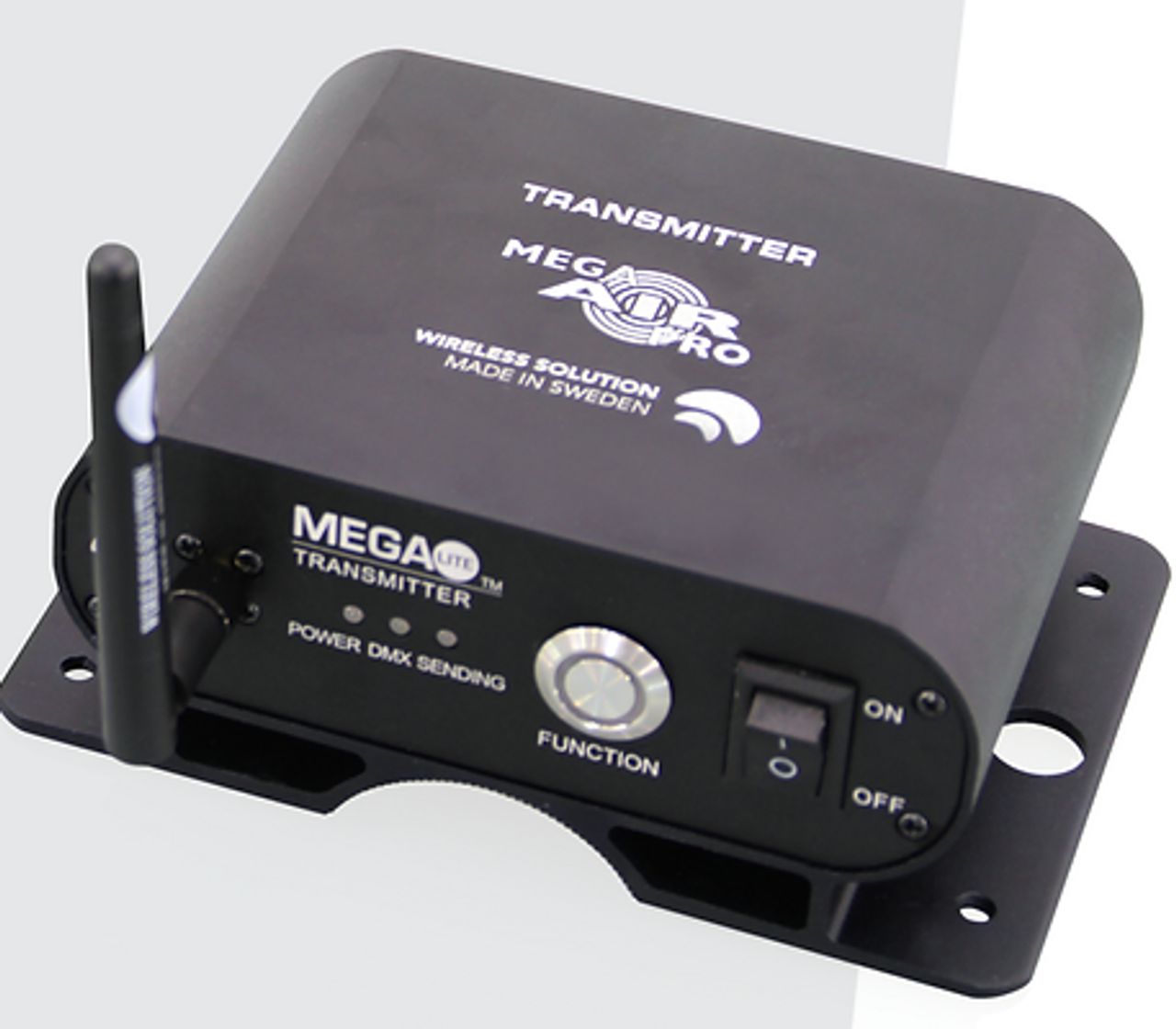

MEGA Lite Mega Air Pro DMX Wireless Transmitter

SKU MGL-MC2047
Barcode MGL-MC2047
Price
$399
MEGA Lite Mega Air Pro DMX Wireless Transmitter

MEGA Lite Mega Air Pro DMX Wireless Transmitter

Price
$399

The Mega Air PRO DMX is an interface by MEGA Lite for sending DMX signal wirelessly from one location to another. It features truss mountable housing for easy rigging. When Running DMX cable is complex or too much of an expense, the Mega Air PRO DMX is the perfect solution.

The Mega Air PRO DMX uses frequency hopping technology to constantly select the best frequency for sending the signal. Additionally, it is built with Swedish Lumen Radio components, the industry standard. Operating the Mega Air PRO DMX is simple, One transceiver can send the signal to multiple receivers and you can designate which receiver those transceivers pair up with. They sync up automatically by pressing the function button on both powered units.

The Mega Air PRO DMX receiver can control up to one universe of DMX. If a fixture does not have wireless technology built in, both 3-pin and 5-pin outlets are available to connect the receiver to the fixture. The interfaces are user interactive, with both power indicators and connection status lights. Receiver and transceiver sold separately but work together seamlessly.

Electrical Specifications:

Radio Frequency Used: 2.40-252G Automatic Select
 126 Channels using frequency hopping technology - AFHSS

Frequency Agile: Adaptive
Universes: Up to 16 selectable
Broadcast Power: 5dBi Max
Communication Distance: Up to 500 Meters (Outdoor prime operating environment)
Power Supply: 110-230V AC 50-60Hz
Signal Protocol: DMX 512
Display: Power Indicator & Connection Status
Compliant: This device complies with part 15 of the FCC rules

Mechanical Specifications:
Housing: Extruded Aluminum
Mounting System: Truss Mount Clamp & Clamp Mounting Holes
Power Connection: Seetronics SAC3FPX (Seetronics Blue power connection SAC3FCA to Nema 5-15 cable included)
Signal Connection: XLR 3 and 5 pin In for Mega Air Transmitter
 XLR 3 and 5 pin Out for Mega Air Receiver

Weight: 2lb
Size: 5.75” X 5.5” X 4.70”

Caution!
1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (Electronically grounded)
3. Replace fuse only with the specified type and rating. (F1 250V)
4. This device is equipped with auto switching power supply that will allow the fixture to work from 110-250V AC 50/60Hz
