MEGA Lite M-sphere

MEGA Lite's advanced moving head mirror fixture, featuring a flat beam reflecting mirror on one side and a rotating half mirror ball on the other.

This combination, along with its continuous rotation capability, produces a multitude of unique lighting effects.

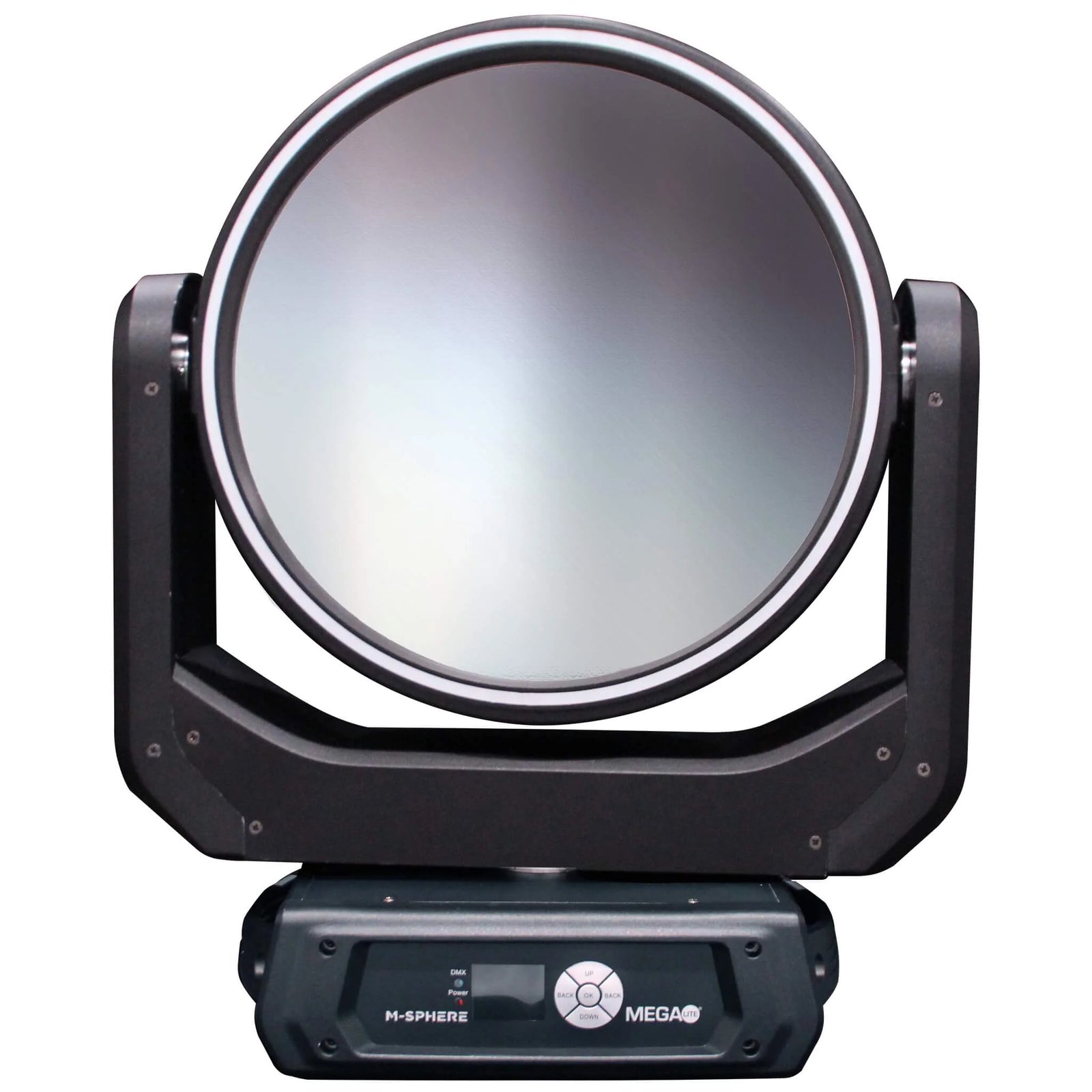

One side has a flat mirror face perfect for reflecting beams, creating a bouncing beam effect. It also has a pixable ring light.

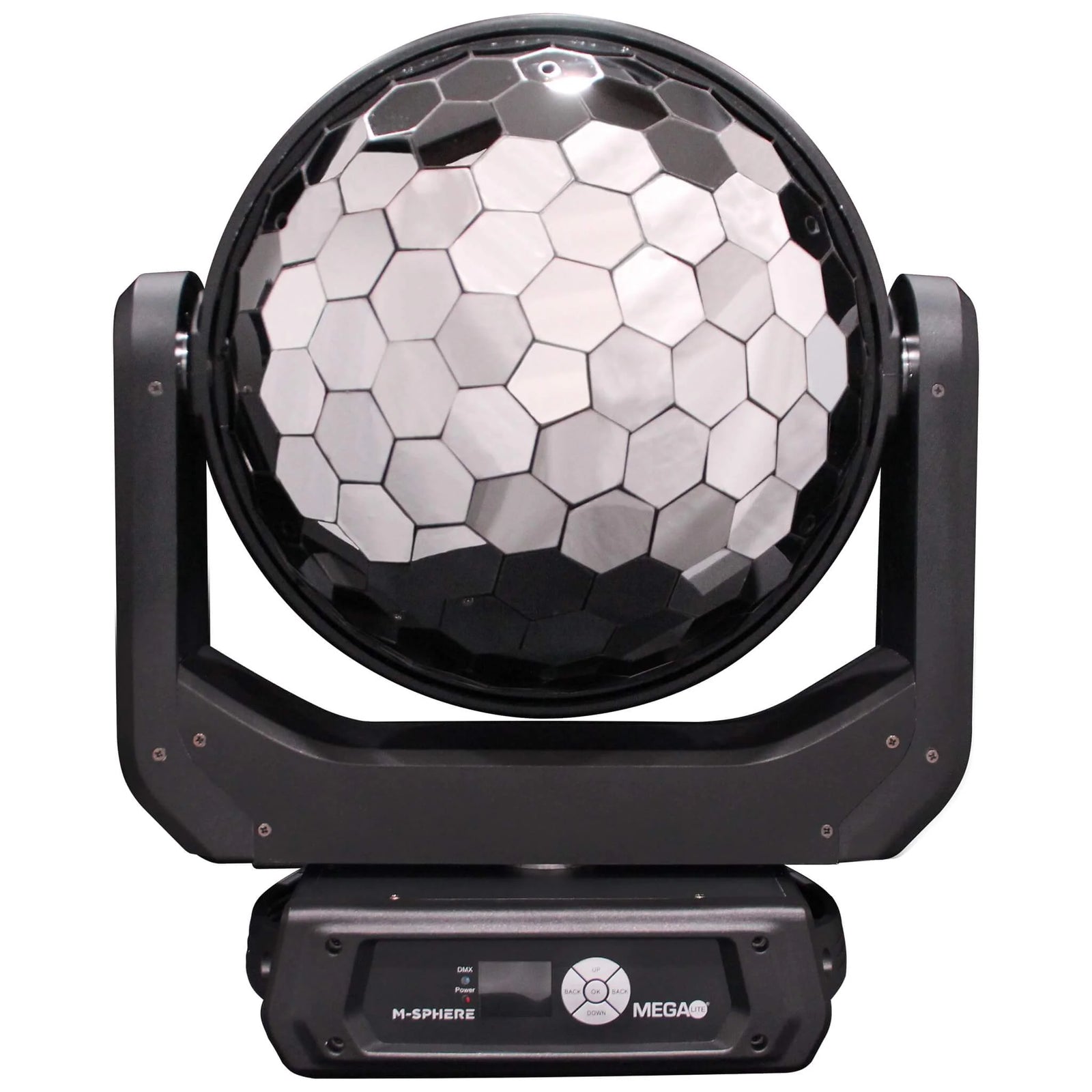

The other side is a rotating half sphere covered in 101 large hex mirrors, which, when hit by beams, create a uniquely controllable mirror ball effect.

Mechanical Specifications:
Housing: High Temp, Low flammability, Plastic
Fastening System: 2 Quick Release Clamp Mounts
Power Connection: Input: Seetronics SAC3MPX
Output: Seetronics SAC3FX
Cable: Seetronics SAC3FX to Nema 5/15
Signal Connection: 3 and 5 Pin XLR In and Out
Pan Movement: 560 Degree Pan with Infinity Pan Rotation
Tilt Movement: 360 Degree Tilt with Infinity Tilt Rotation
Mirror Ball Rotation: Infinity Mirror Ball Rotation in 2 directions,
Large Hexagon Reflectors: 101 Large Hexagon high polished metal
reflectors
Large Mirror: 13” high polished metal reflector
Power Link: 60 units@110V 20 Amps

Electrical Specifications:
Light Source: 62 X .25W RGB
Signal Support: DMX 512, RDM
Power: Electronic 100-240V AC 50/60
Power Consumption: 28 Watts / .25 Amps @110V

Control System:
Protocol: DMX 512
Channel Modes: 18 Channel Mode
66 Channel Mode W/pixel control
Operating Mode: Programmable single scene via manual
memory settings Settings Via Display

Size and Weight:
Fixture Size: 18.62” X 11.8” X 22.25”
Fixture Weight: 37lb
Packaged Size: 22” X 19.25” X 21”
Packaged Weight: 44lb
