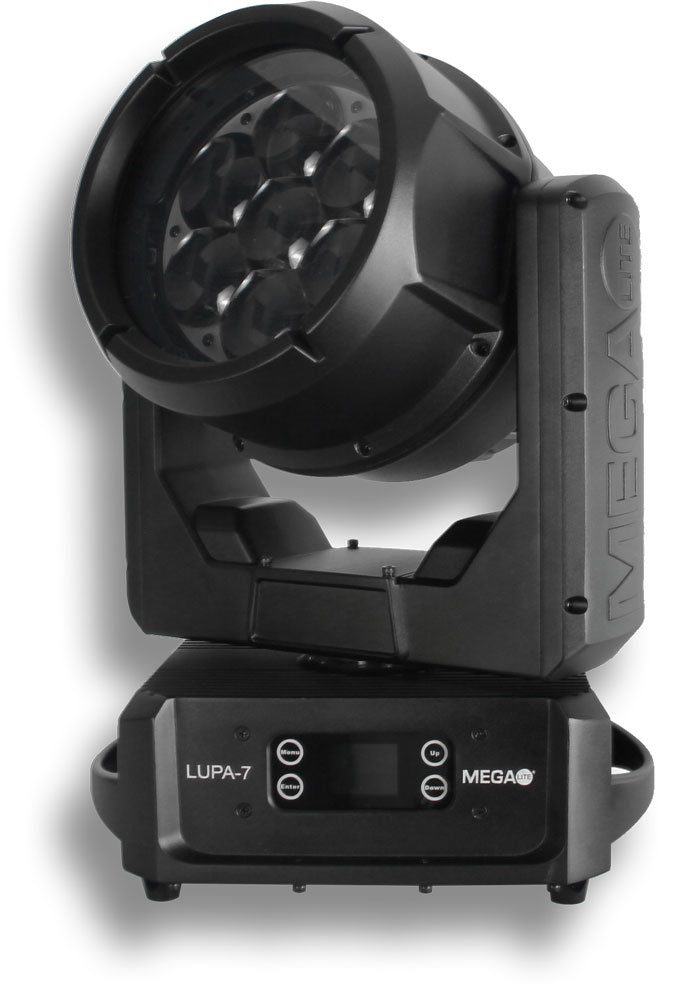

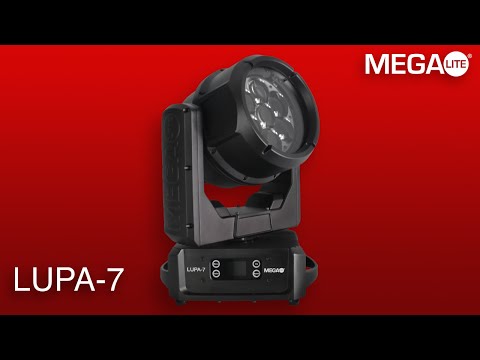

MEGA Lite Lupa 7 Beam

The Lupa 7 is equipped with 7 60W LEDs with individual beam effects allowing the user a wide range of potential looks. The 28 x .5W pixel mappable LEDs add ambiance to any lighting experience. With rotating lenses that expand the amazing possibilities for looks you can achieve, this fixture is packed full of features.

Mechanical Specifications:
Housing: Die-cast Aluminum
Mounting System: 2 Quick Release Clamp Mounts
Power Connection: Seetronics SAC3FPX Input &
SAC3MPX output (Nema 5-15 to
SAC3FX-67 cable included)
Signal Connection: 5 Pin XLR In and Out (IP Rated)
Zoom Angle: 3° to 32°

Electrical Specifications:
Light Source: 7 X 60W RGBW
28 X .5W RGB
Color Temperature: 9090K
CRI (Warm White): 75 @ full
Lumen Output: 3207Lm
Power Supply: Electronic 100-240V AC 50/60
Power Consumption: 512 Watts
4.4 Amps @110V

Control System:
Control Protocols: DMX 512, ArtNet, sACN, RDM
RDM: Yes
Channel Modes: 27 Channel Mode
139 Channel Mode
134 Channel Mode
Display: Digital

Main Power Connection:
DMX-512: Yes

Size and Weight:
Fixture Size: 12.5” X 9.5” X 17.25”
Fixture Weight: 29lb
Packaged Size: 16.4” X 13.9” X 24.61”
Packaged Weight: 35.27lb

Photometrics:
Lumens @ Full Output (Narrow): 2,700
Efficacy: 6 lm/W
Lumens @ Full Output (Wide): 3,207
Efficacy: 7 lm/W
Red Emitter Peak Wavelength: 636 nm
Green Emitter Peak Wavelength: 522 nm
Blue Emitter Peak Wavelength: 449 nm
White Emitter Peak Wavelength: 447 nm
Nominal Beam Angle: 3°
