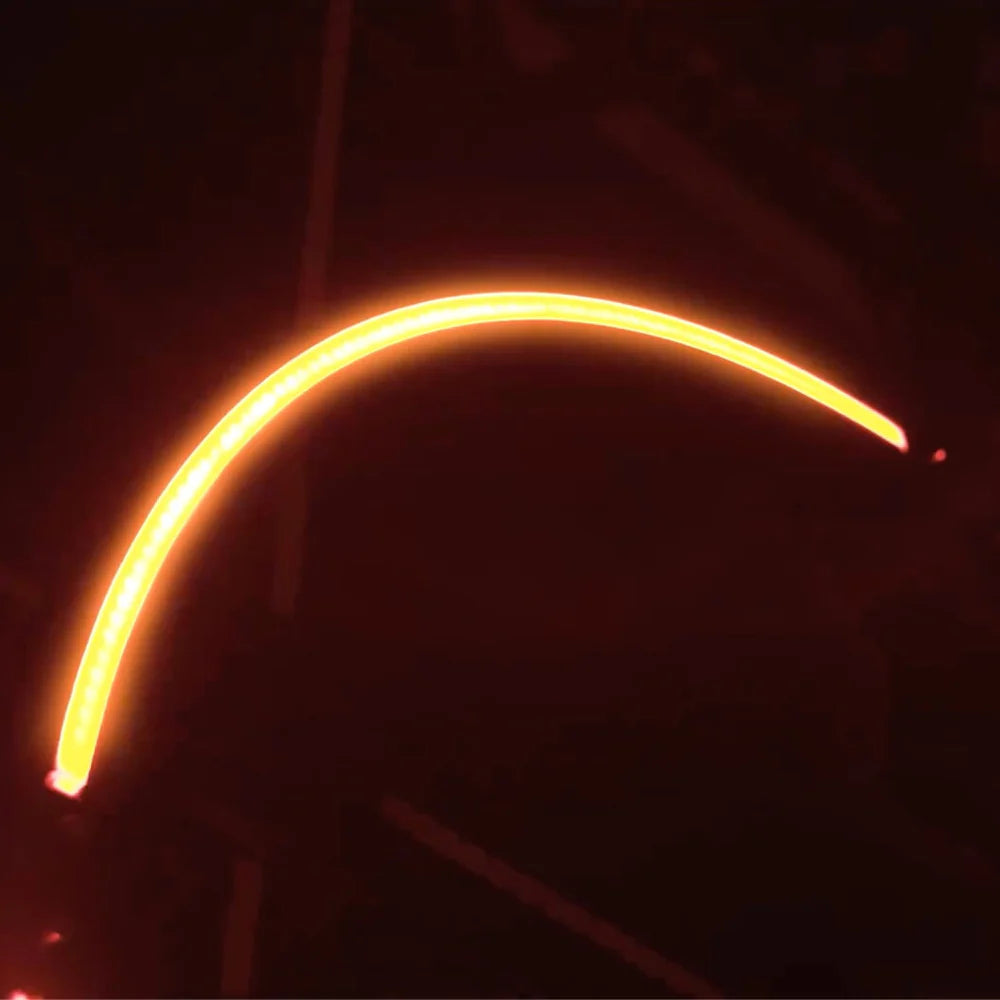

MEGA Lite Light Pipe 90 Degree Curve

The Mega-Lite Light Pipe 90 is a structural 90-degree curved pipe that brings a mesmerizing glow to your installations. This innovative product combines functionality with an eye-catching aesthetic, its IP-65 rating makes it perfect for both indoor and outdoor applications. With a range of sizes available (2ft, 3ft, 4ft, and 5ft), the Light Pipe 90 offers versatility without compromising on simplicity.

This unit is constructed using high-quality metal anodized in black, ensuring durability and longevity. This versatile product opens up a world of creative possibilities. Use it to enhance architectural features, illuminate walkways, accentuate landscape designs, or create captivating visual displays.

Features:

• Anodized and powder-coated: This unit is constructed using high‑quality metal anodized in black and then powder‑ coated in black, ensuring durability and longevity. Its robust design guarantees reliable performance in various environments.
• Tetra Color: Designed to deliver bright and vibrant lighting, the Light Pipe is equipped with the Tetra Color system, a four color system using RGB and a Warm White. The 3000 Kelvin color temperature provides flexibility in creating a warm ambiance.
• IP Rated: With an IP‑65 rating, this unit can be installed indoors and/or outdoors to provide you the versatility you need.

Specifications:
IP Rating: 65
LED Spacing: .46” (11.9 mm)
LED Wattage: .19W each
LED Type: SMD 5050 Red, Green, Blue, and
Warm White
Color Temperature on WW: 3000K Warm White
Housing: Aluminum
Lens Angle: 120°
Operating Temperature: 130 °F
Housing Coating: Anodized Black & Powder
Coated Black
Fastening System: Conical System
Power Connection: 5 Connector,
5-Pin XLR Seetronics: SCWM5-B-67 for Input
SCWF5-B-67 for Output

Electrical Specifications:
Voltage: DC 24V Constant Voltage
Power Consumption: 03FT = 15 Watts
02FT = 15 Watts
03FT = 24 Watts
04FT = 32 Watts
05FT = 41 Watts                                                                                                                    06FT = 49 Watts

Control System:
Channel Modes: 3 Channel, 4 Channel, or 7 Channel
Driver Compatibility: Light Pipe Driver 4
Light Pipe Driver 16

Size and Weight:

• Diameter: 2in
