MEGA Lite Light Pipe

The Light Pipe is a revolutionary structural pipe that brings a mesmerizing glow to your project. This innovative product combines functionality with an eye-catching aesthetic, with the IP65 rating making it perfect for both indoor and outdoor applications.

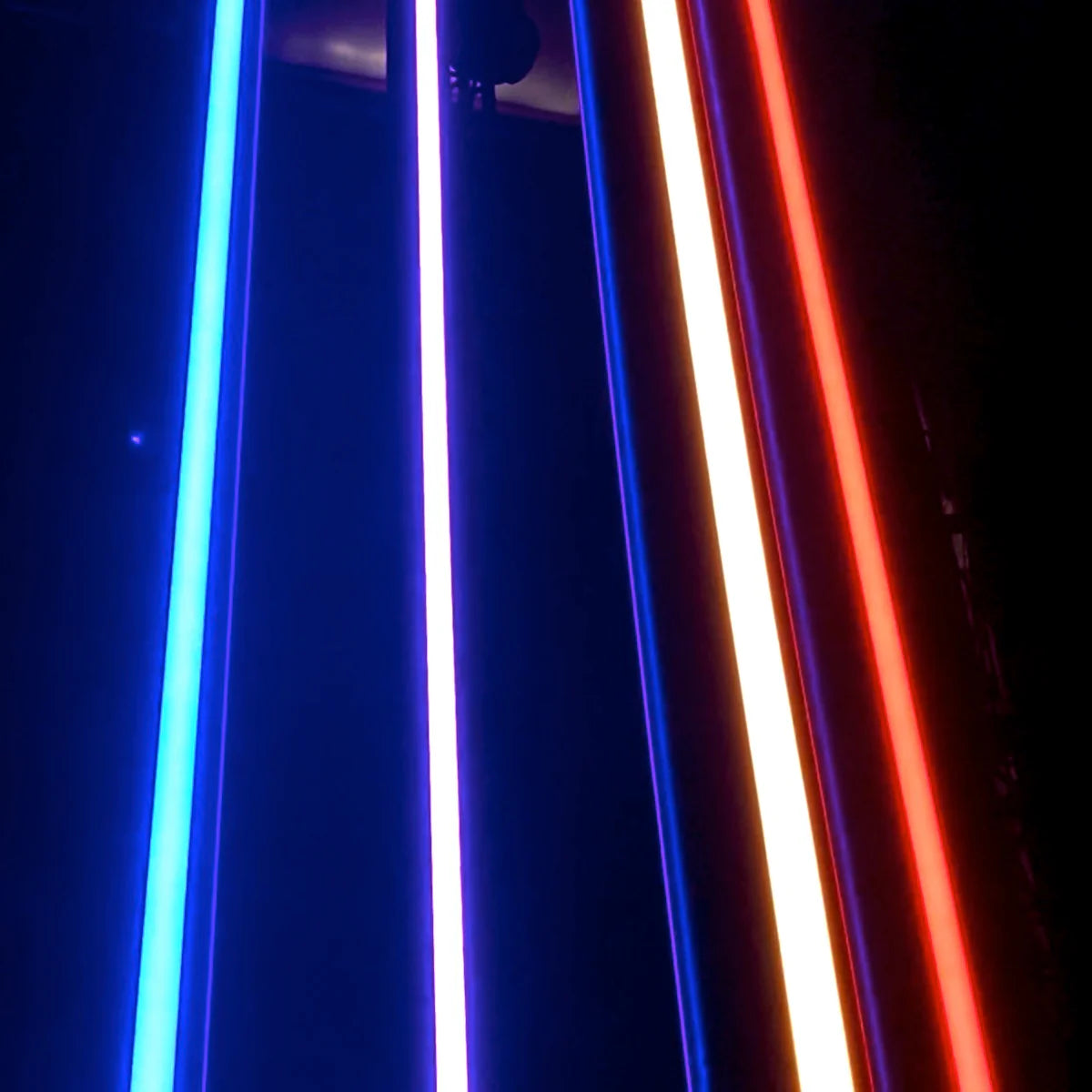

Designed to deliver bright and vibrant lighting, the Light Pipe is equipped with the TetraColor System, a four color system using RGB and Warm White. The 3000 Kelvin color temperature provides flexibility in creating a warm ambiance.

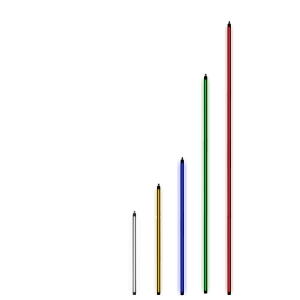

With a range of sizes (3ft, 4ft, 5ft, 8ft, 10ft, 1m and 2m), the Light Pipe offers versatility without compromising on simplicity. Reimagine any structural design with the pipe that glows!

Specifications:
IP Rating: 65
LED Spacing: .46” (11.9 mm)
LED Wattage: .19W each
LED Type: SMD 5050 Red, Green, Blue, and
Warm White
Color Temperature on WW: 3000K Warm White
Housing: Aluminum
Lens Angle: 120°
Operating Temperature: 130 °F
Housing Coating: Anodized Black & Powder
Coated Black
Fastening System: Conical System
Power Connection: 5 Connector,
5-Pin XLR Seetronics: SCWM5-B-67 for Input
SCWF5-B-67 for Output

Electrical Specifications:
Voltage: DC 24V Constant Voltage
Power Consumption: 03FT = 15 Watts
04FT = 20 Watts
05FT = 25 Watts
08FT = 42 Watts
10FT = 53 Watts

Control System:
Channel Modes: 3 Channel, 4 Channel, or 7 Channel
Driver Compatibility: Light Pipe Driver 4
Light Pipe Driver 16

Size and Weight:

• Height: 2 in
• Width: 2 in
• Length: 3ft, 4ft, 5ft, 8ft, 10ft, 1m, 2m
