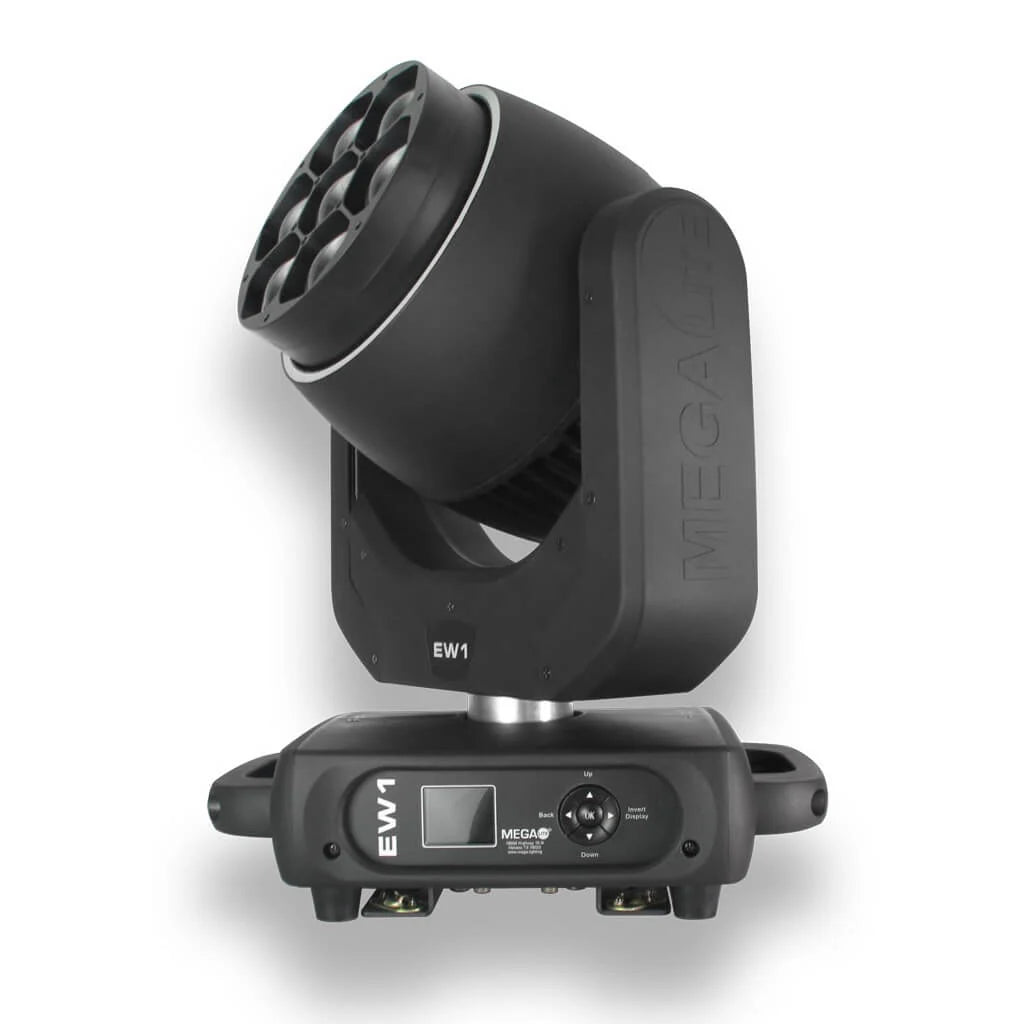

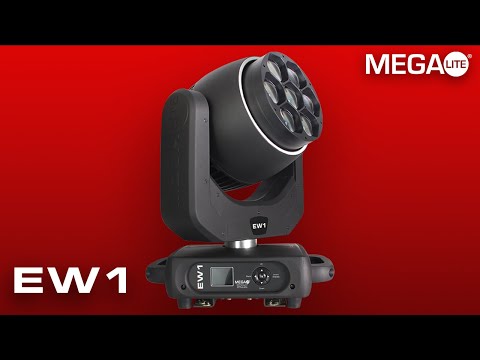

MEGA Lite EW1

The EW1 luminaire is a versatile tool for your lighting needs. It is equipped with 7 x 60W RGBW LEDs, each with individual control and kaleidoscopic effect. This versatility empowers you to create a wide range of possible lighting scenes, giving you the freedom to bring your creative vision to life.

With its beam-to-wash element, the EW1 luminaire is designed for adaptability, allowing it to be used as a beam or wash. Its outer ring adds another element of depth to the fixture, giving you the flexibility to create unique lighting effects for any event.

The EW1 luminaire is not only compact and light but also designed with your convenience in mind. It's easy to use, making it a perfect choice for professionals in the entertainment industry. The EB1, part of the series, is a hard-edge beam that pairs seamlessly with the EW1, ensuring a hassle-free setup.

Mechanical Specifications:
Housing: High Temp, Low Flammability, Plastic
Mounting System: 2 Quick Release Clamp Mounts
Power Connection: Input Seetronics SAC3MPA Panel Mount
Output Seetronics SAC3MPB Panel Mount
Cable Seetronics SAC3FCA plug to Nema
5/15
Signal Connection: 3 and 5 Pin XLR In and Out (IP Rated)
Zoom Angle: 4° to 36° Electronic Zoom

Electrical Specifications:
Light Source: 7 X 60W RGBW Osram
62 X .5W RGB
Color Temperature: 7562K
CRI (Warm White): 72 @ full
Lumen Output: 7625Lm
Power Supply: N/A
Power Consumption: 382 Watts 3.25 Amps @110V

Control System:
Control Protocols: DMX 512
RDM: Yes, Address, Channel Mode, Pan
Invert, Tilt Invert, Pan and Tilt Swap
Channel Modes: 2 Modes of operations
Mode 1: 27 Channel Mode
Mode 2: 103 Channel Mode
Display: Digital

Size and Weight:
Fixture Size: 15” X 9.37” X 19.37”
Fixture Weight: 32lb
Packaged Size: 16.5” X 13.5” X 24.5”
Packaged Weight: 35.25lb

Photometrics:
Lumens @ Full Output (Narrow): 6,000
Efficacy: 13 lm/W
Lumens @ Full Output (Wide): 7,625
Efficacy: 17 lm/W
Red Emitter Peak Wavelength: 634 nm
Green Emitter Peak Wavelength: 522 nm
Blue Emitter Peak Wavelength: 447 nm
