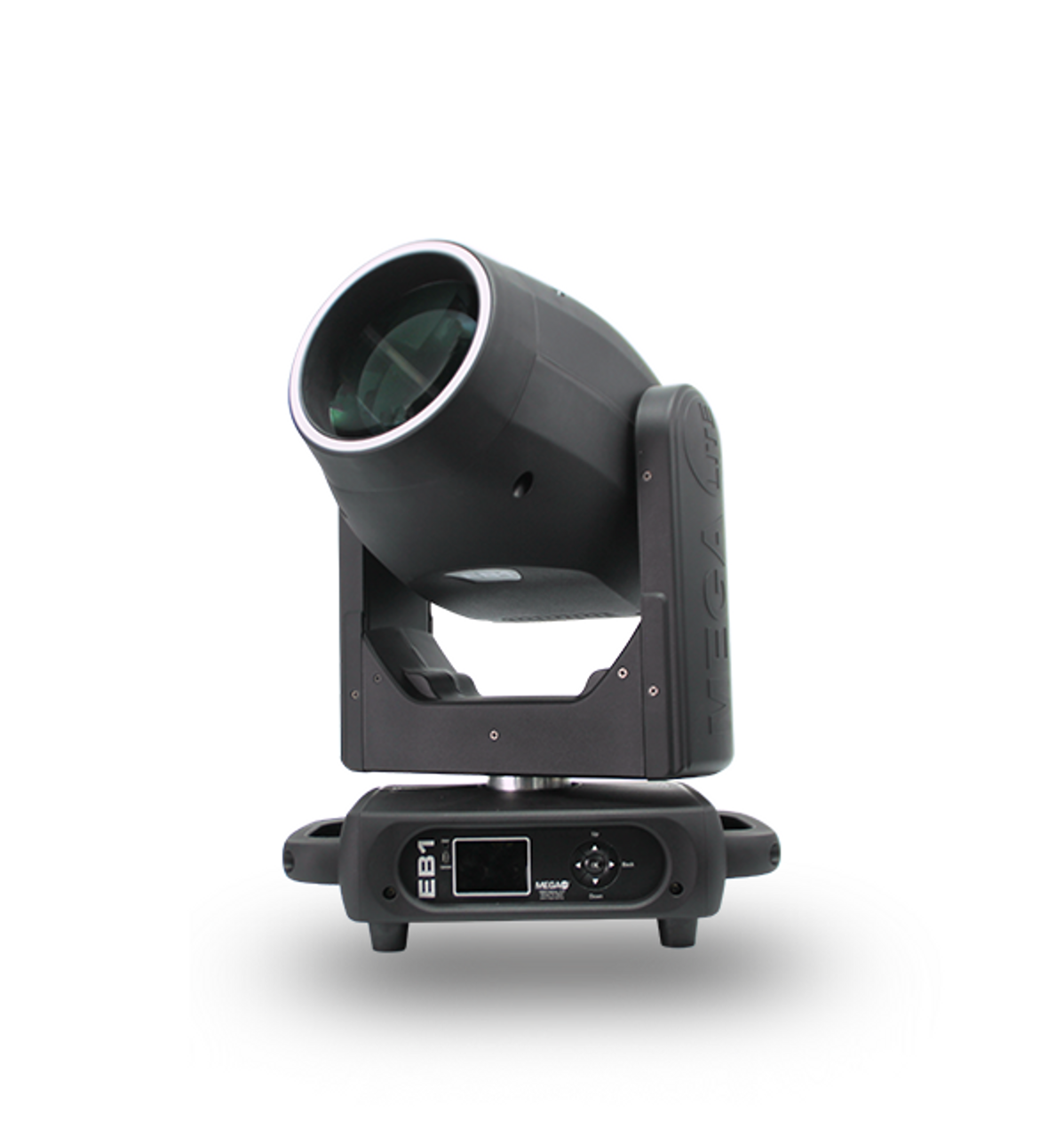

MEGA Lite EB1 200W LED

The EB1 is powered by a 200W LED. It offers a large aperture
and 14 bidirectional colors + open, which can produce bright
colorful beam combinations.

The 1º angle creates eye-catching beams, ideal for medium to
large applications. In addition, the EB-1 has a Pixelable ring
with 48 SMD LEDs grouped into 16 RGB pixels of control that
add a unique matrix effect. The pixels can be mapped, or you
can select from pre-created macros and speeds depending on your fixture profile.

With a compact and lightweight design, the EB1 offers multiple features that allow lighting designers to expand their creativity. It includes 12 fixed + open static gobos and an 8-facet indexing prism that further enhances the beam and gobo effects. It also offers a 0.3-20 per second strobe, one frost filter, and linear focus to create a soft or sharp projection. The EW1 is a pixable wash beam that is part of the E series.

Mechanical Specifications:
Power Connection: PowerCon Type In & Out
Signal Connection: 3 & 5 Pin XLR Connectors
Pan Movement: 540° (16 BIT, 3 Phase Stepper Motor)
Tilt Movement: 270° (16 BIT, 3 Phase Stepper Motor)
Frost: 1 Frost filter
Focus: Linear focus
Pixable Ring: 16 Pixels Of Control
Color Wheel: 14 Colors + open, bi-direction
Static Gobo: 12 Fixed + Open
Prism: 8 Facet indexing prism
Lens Angle: 1°
Installation System: Bi directional quick release clamp mount

Electrical Specifications:
Light Source: One 200W LED | 48 SMD 3535 LEDs (16 pixels)
Color Temperature: 8313K
CRI (Warm White): 71
Lumen Output: 3963 Lm
Power Supply: Electronic 100-240V AC 50/60
Power Consumption: 295 Watts | 2.48 Amps @110V

Control System:
Control Protocols: DMX 512
RDM: Yes/No
Channel Modes: 2 Modes of operation
Mode 1: 22 Channel Mode
Mode 2: 70 Channel Mode
Display: LCD Display

Size and Weight
Fixture Size: 15” X: 9.5” X 21.75”
Fixture Weight: 35lb (15.87 kg)
Packaged Size: 24.75” X 18.5” X 13”
Packaged Weight: 38lb (17.24 kg)
