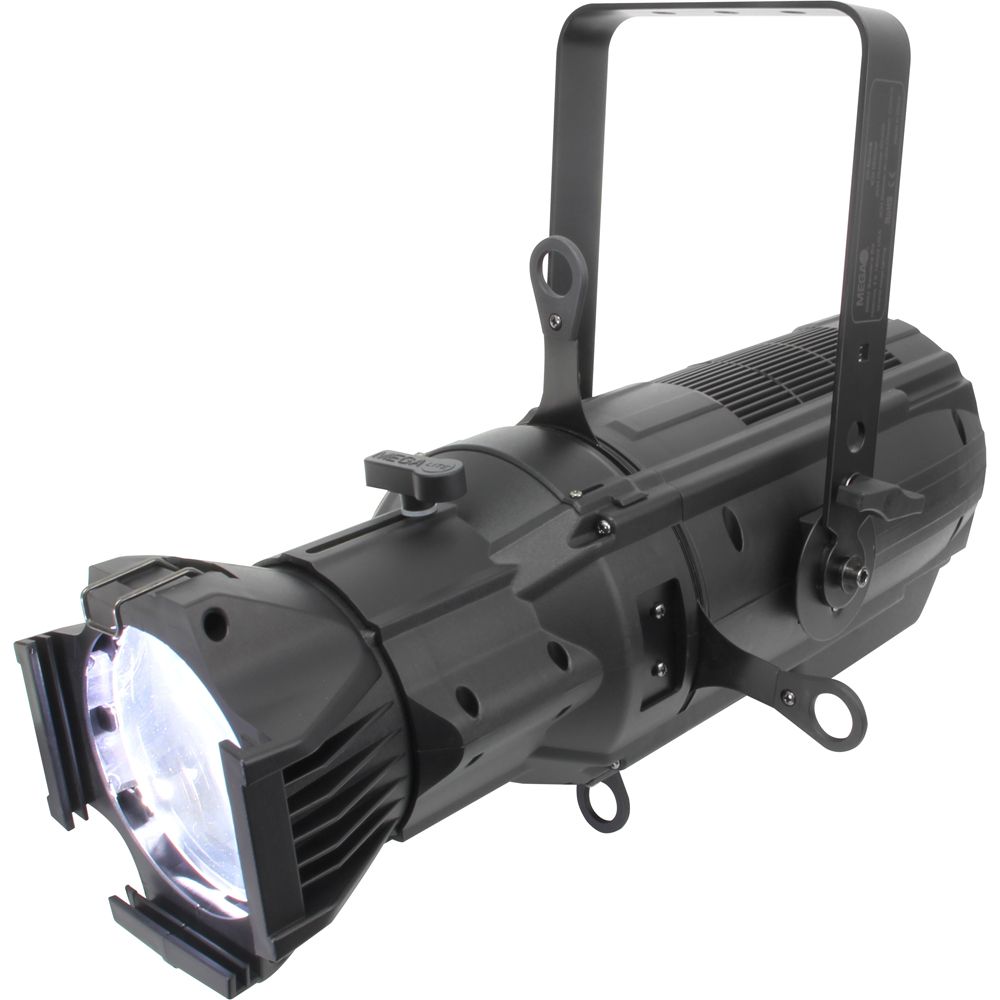

The Drama EW200 is a single color 6024k daylight white fixture, with a high output of 9052 lm @ 19°. It's 20)W LED is quietly cooled by a combined heatsink and fan, making it ideal for theater or church applications. It can be combined with four lenses: from 19°, 26°, 36°, 50° beam angles. The unit comes with a specified lens included when ordered. The EW200 is a quiet, affordable choice in its class, providing affordability and confidence in its performance.
The 6024k color temp is perfect for gobo projection or highlighting any performance in true daylight white. With a CRI of 89, the EW200's color rendering is great, with smooth dimming and a high lumen output.
Mechanical Specifications:
Power Connection: True-One type connection to NEMA 5-15
Signal Connection: 5 Pin XLR in and out
Lens Angle: 19°, 26°, 36°, 50°
Fastening System: Single Mounting Yoke
Electrical Specifications:
Light Source: 200W COB LED
Color Temperature: 6024k
CRI (Warm White): 89
Lumen Output: 9053lm @ 19°
9901lm @ 26°
9912lm @ 36°
5590lm @ 50°
Power Supply: HS-U400D42+12
Power Consumption: 185W
Control System:
Control Protocols: DMX 215, manual mode
RDM: No
Channel Modes: 3 Modes of Operation
Mode 1: 1 Channel mode
Mode 2: 2 Channel mode
Mode 3: 3 Channel mode
Display: Digital
Size and Weight:
Fixture Size: 28” X 14.5” X 18”
Fixture Weight: 11lb
Packaged Size: *27” X 12” X 12”
Packaged Weight: 16` lb
*Lens packaged separately
Included Items:
Drama EW200 7063
Gobo Holder 7062-GOB
Color Holder 7062-GEL
True-One Power Cable
Accessories:
19° Lens 7062-LEN-19
26° Lens 7062-LEN-26
36° Lens 7062-LEN-36
50° Lens 7062-LEN-50
