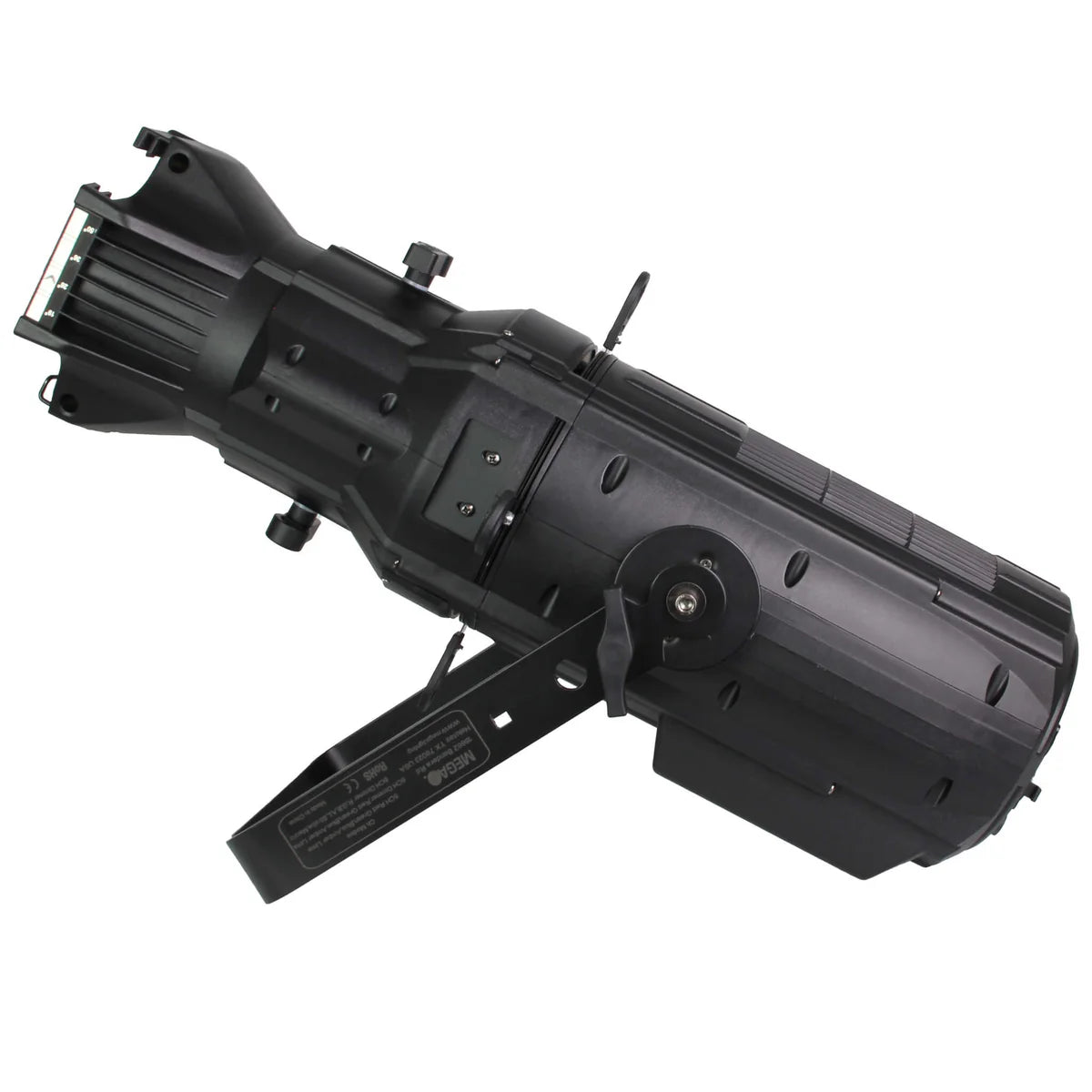

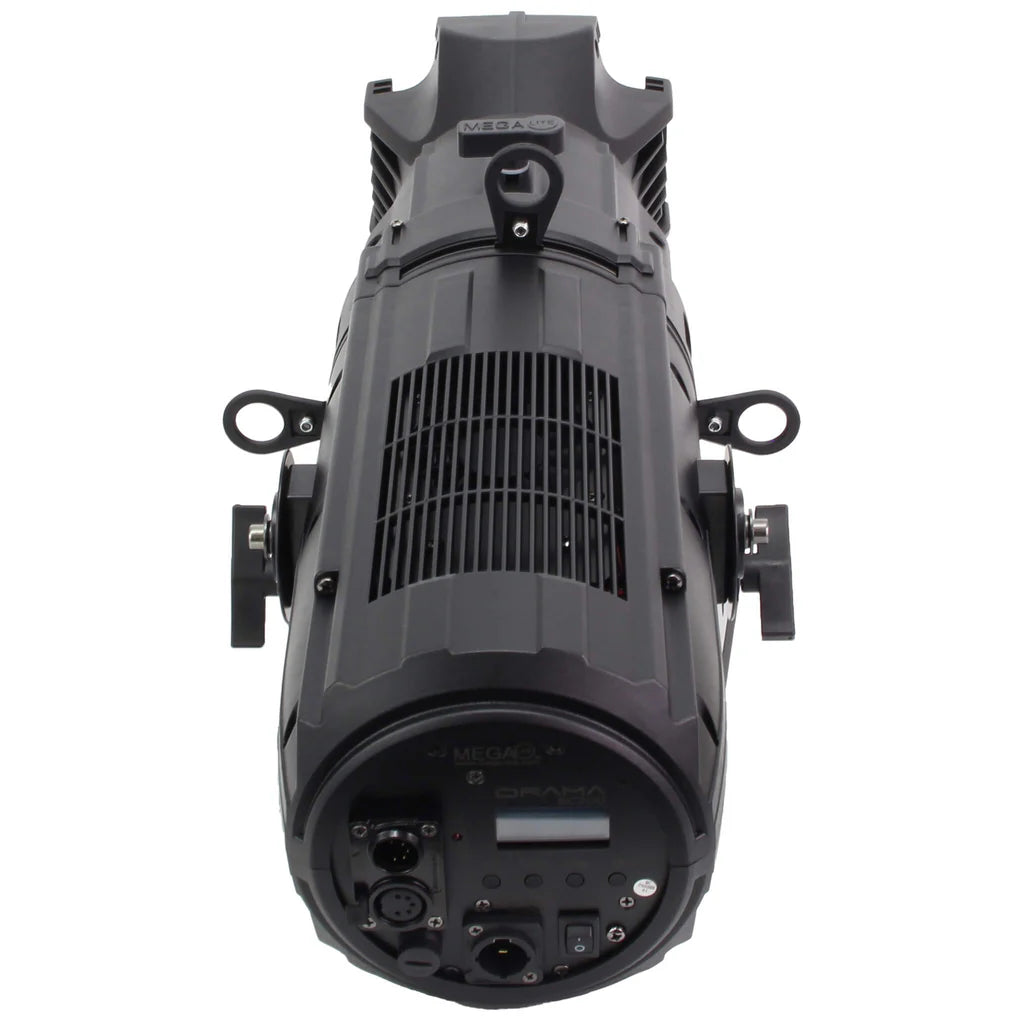

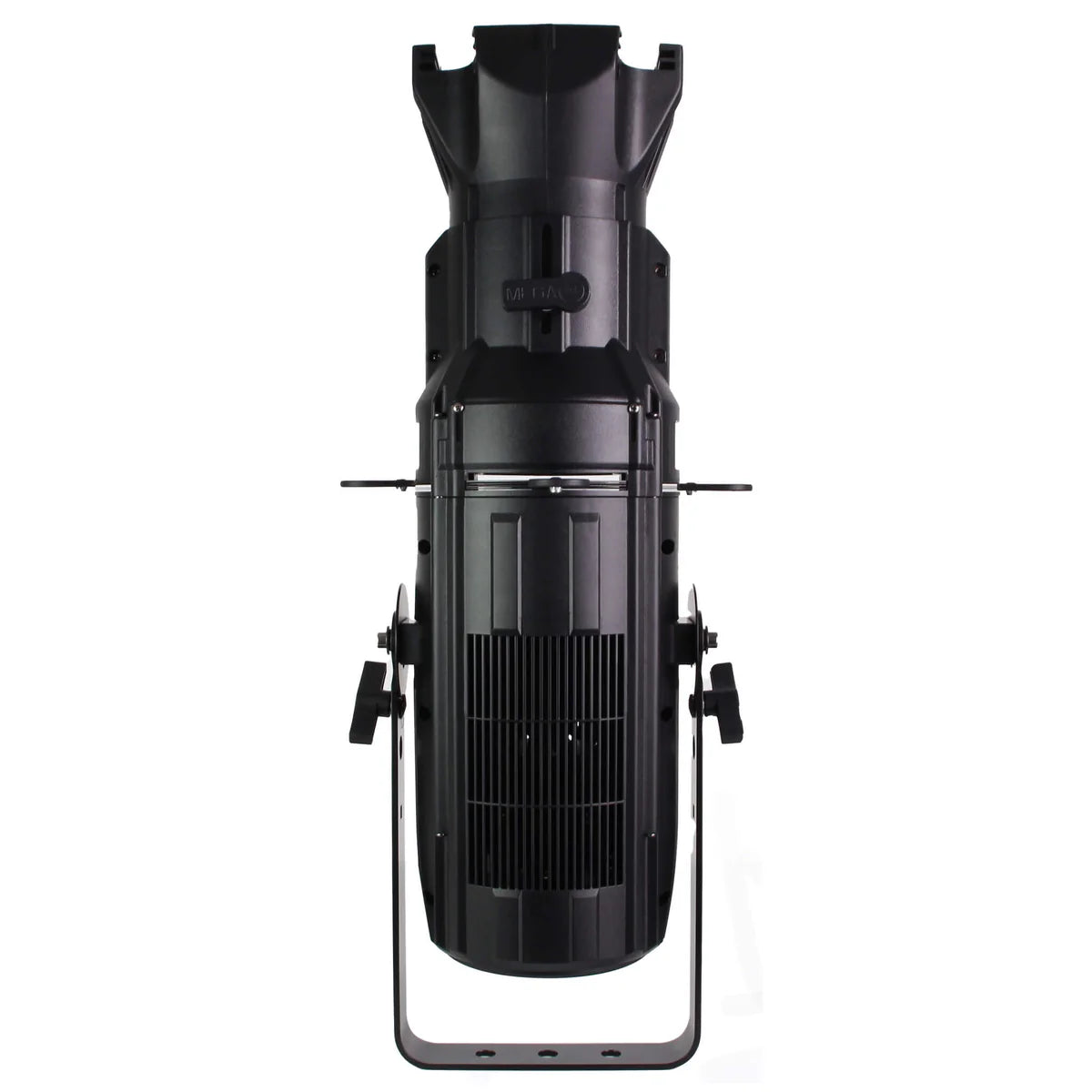

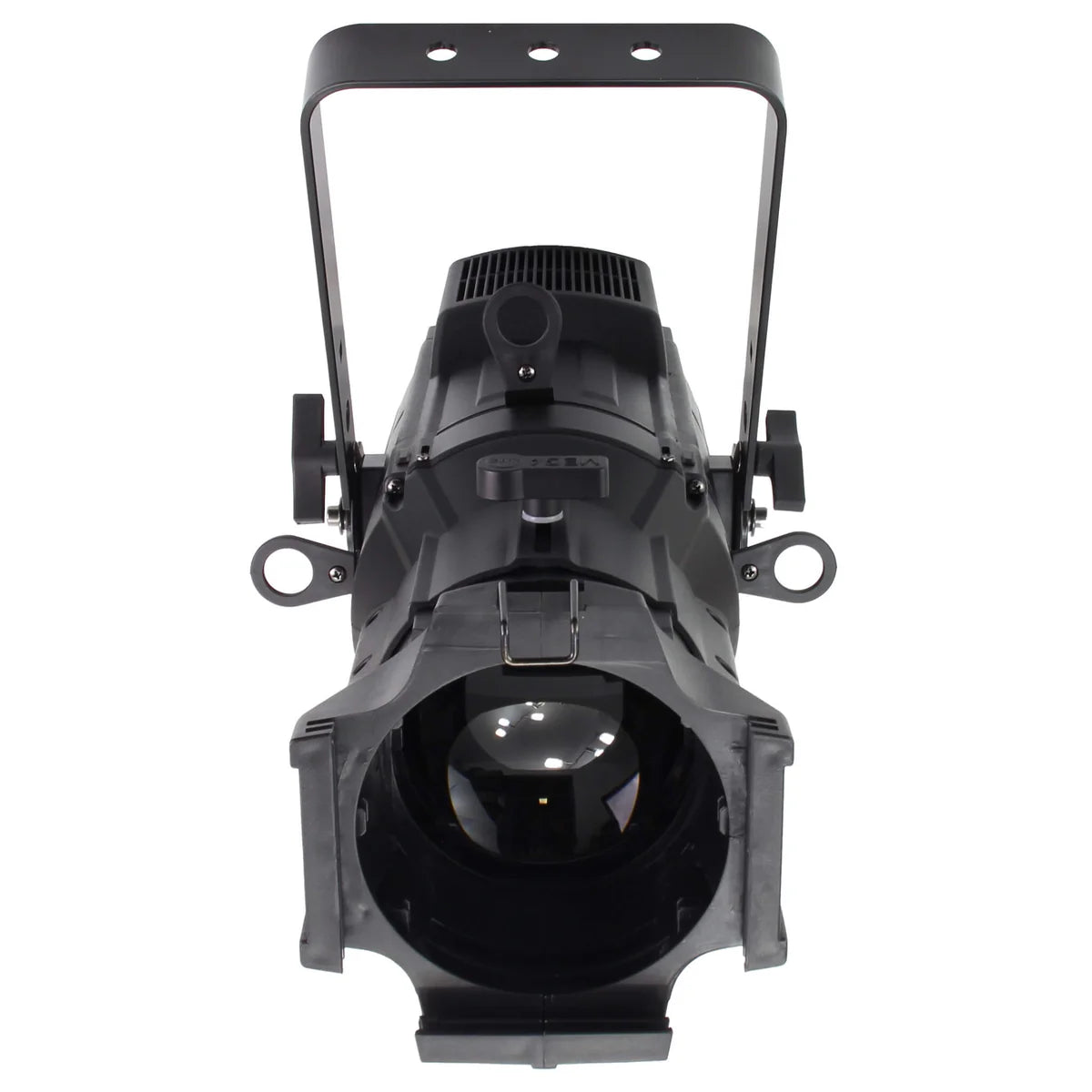

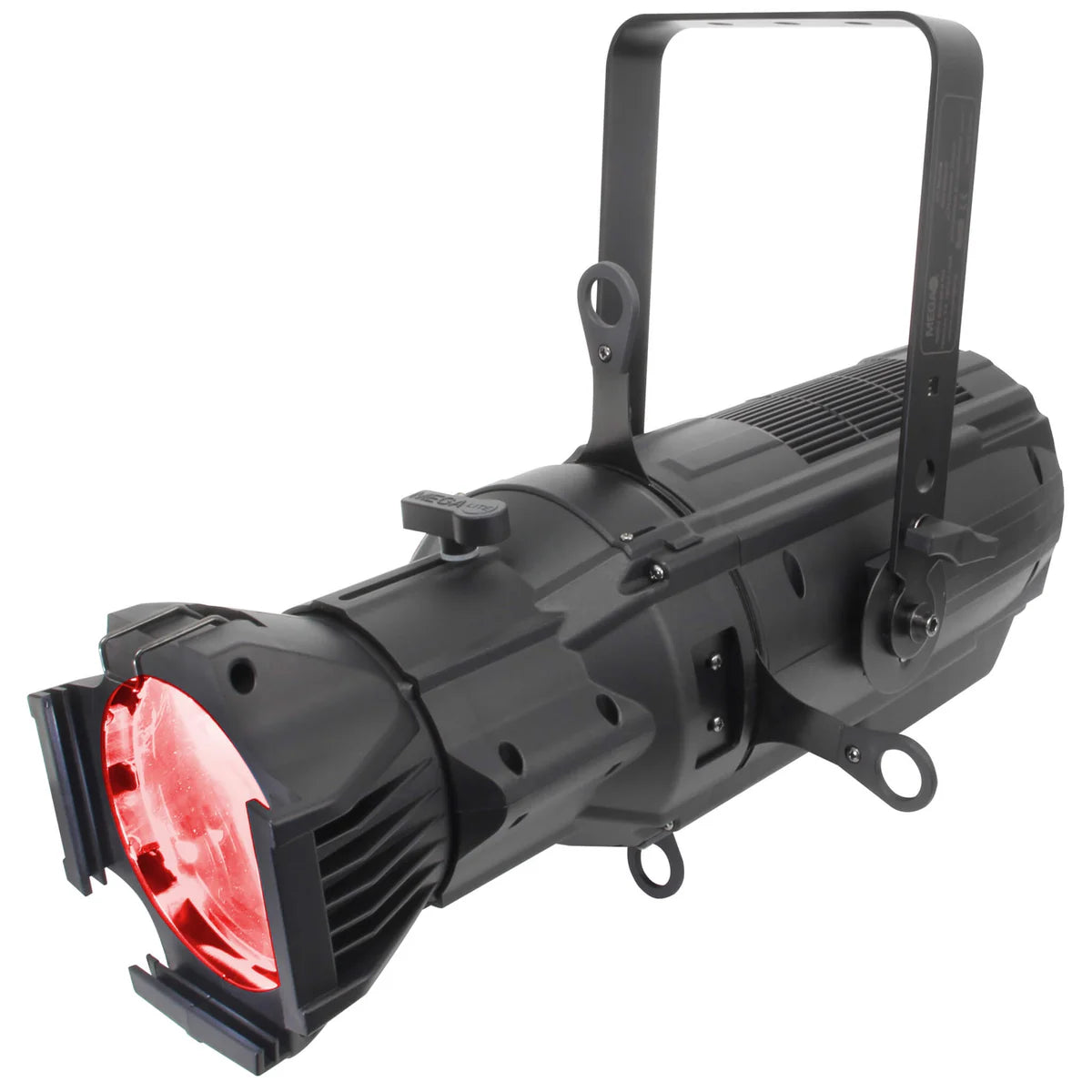

The Drama EC200 is a color-changing ellipsoidal that uses a Red, Green, Blue, plus Lime and Amber color mixing system. Using lime results in higher lumen output and lumen per watt performance that can be achieved with only primary colors. This high-lumen output and efficiency ensure you can deliver high-quality and efficient white light in a color-mixing application without sacrificing saturation. The Drama EC200 is driven by a 200W engine that is quietly cooled, making it suitable for theatrical and church applications. It can be paired with four lenses: select from 19°, 26°, 36° and 50° beam angles. The unit comes with one lens included, which is specified when ordering. It is an affordable option within its class of luminaires, giving you affordability with confidence in its performance.
Mechanical Specifications:
Power Connection: True-One type connection to NEMA 5-15
Signal Connection: 5 Pin XLR in and out
Lens Angle: 19°, 26°, 36°, 50° (One lens included at time
of purchase)
Fastening System: Single Mounting Yoke
Electrical Specifications:
Light Source: 1 X 200W COB LED
Color Temperature: 6024k
CRI (Warm White): 64
Lumen Output: 5290 lm @ 19°
5468 lm @ 26°
5391 lm @ 36°
5590 lm @ 50°
Power Supply: 100-240VAC 50/60Hz
Power Consumption: 185w | 1.68 amps @110v
Control System:
Control Protocols: DMX 512
Channel Modes: 3 Modes of Operation
Mode 1: 5 Channel mode
Mode 2: 6 Channel mode
Mode 3: 8 Channel mode
Display: Digital
Size and Weight:
Fixture Size: 28” X 14.5” X 18”
Fixture Weight: 11lb
Packaged Size: *27” X 12” X 12”
Packaged Weight: 17lb
*Lens packaged separately
Included Items:
Drama EC200 7062
Gobo Holder 7062-GOB
Color Holder 7062-GEL
True-One Power Cable
One Lens included at the time of purchase
Accessories (one of your choice included):
Lens 19° Angle 7062-LEN-19
Lens 26° Angle 7062-LEN-26
Lens 36° Angle 7062-LEN-36
Lens 50°Angle 7062-LEN-50
