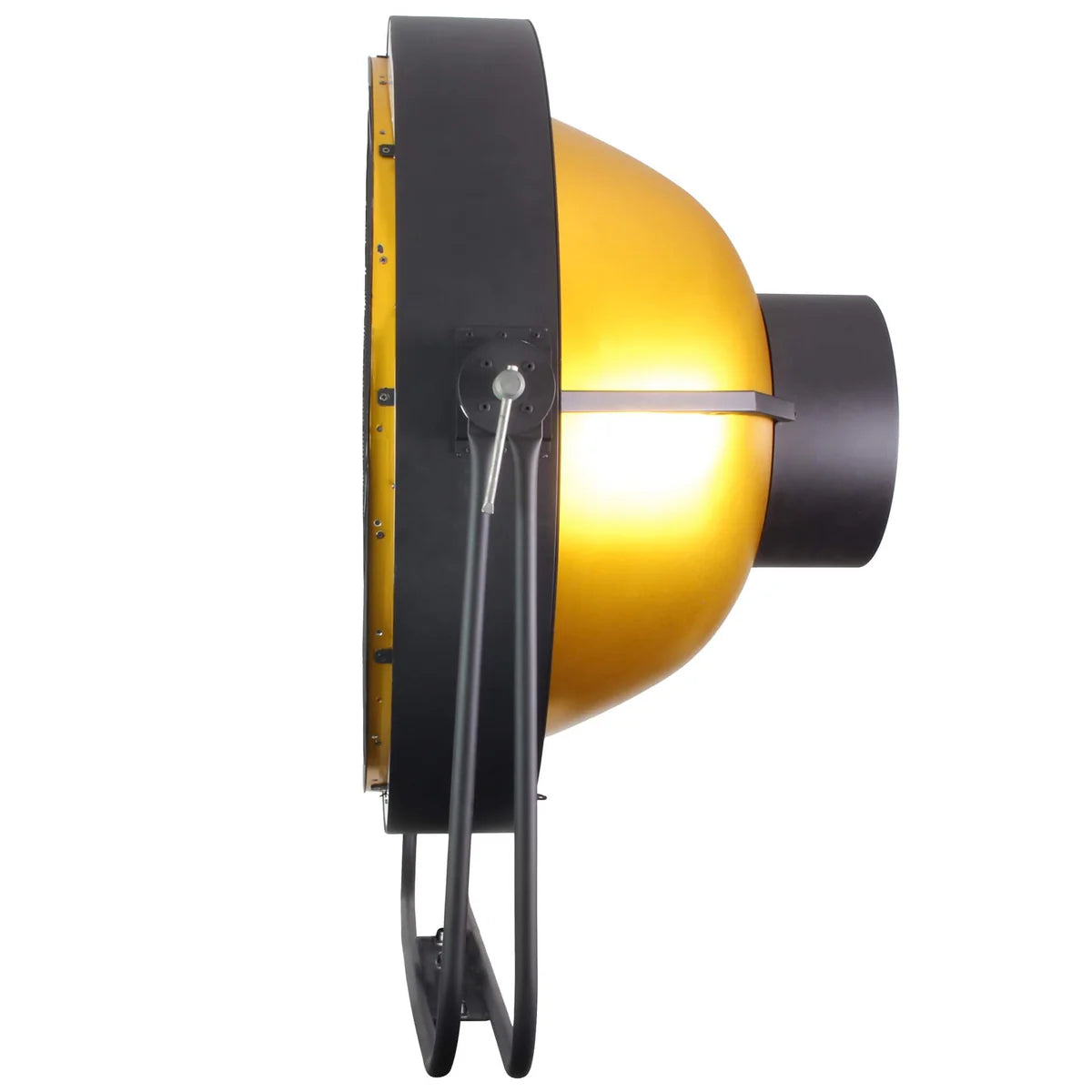

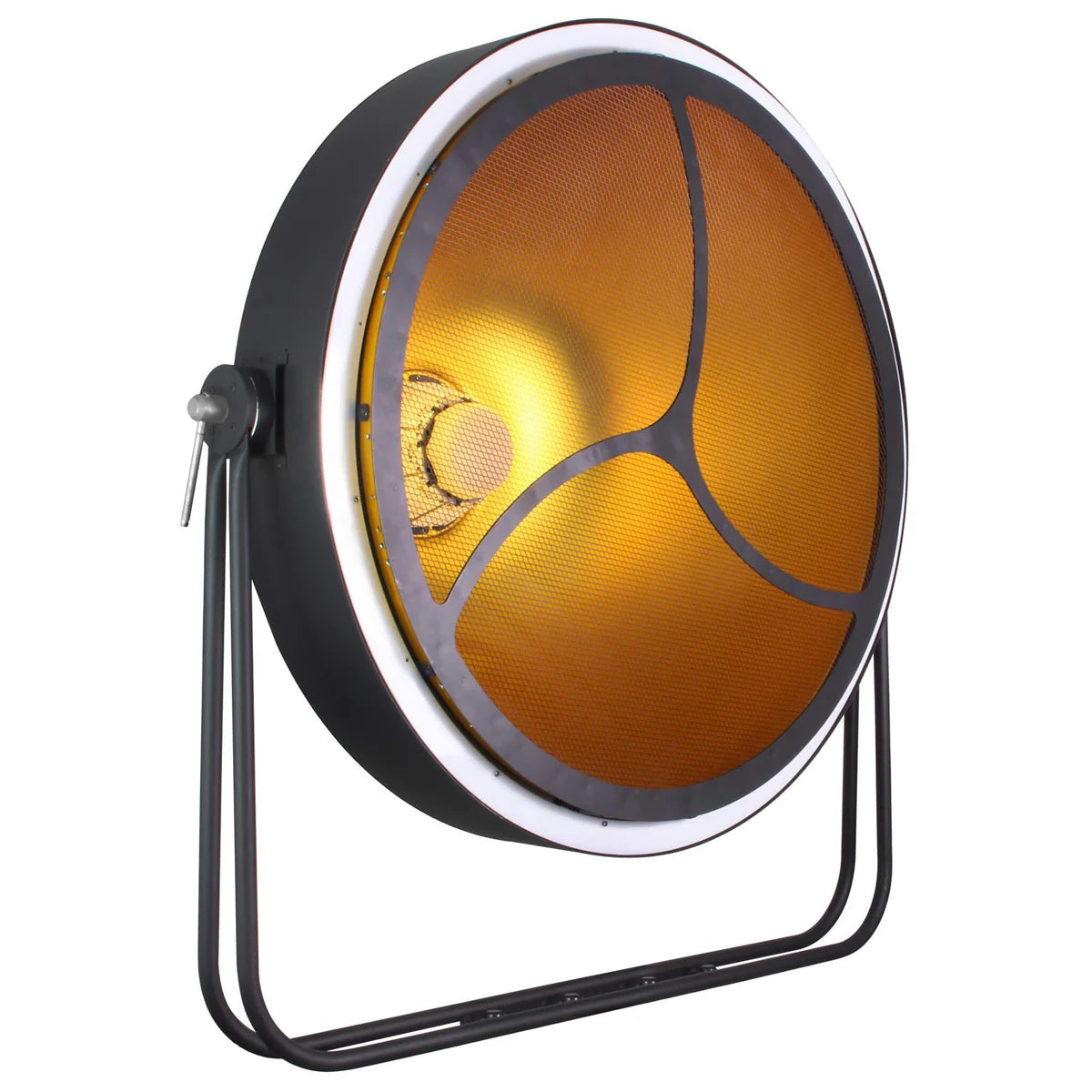

MEGA Lite Circa Giant Scoop LED

MEGA Lite's newest addition to the Circa ScoopLED Series. This is their largest next-level unit designed with four different elements that can be used in multiple applications. With all the same great features of the rest of our Circa scoop line in one new gigantic package.

With a retro look and modern twist, the Circa Giant Scoop LED takes the unique design and affects of our previous circa scoops to a whole new scale. Whether placed on the floor or rigged, this unique fixture can make any band or performer stand out from the rest.

The Circa Giant Scoop LED has eight segments of control for the inner and outer rings along with two other segments of control which you can use to create incredible effects. The Circa Giant Scoop's independent control of dimmer, macro and strobe effects can be used to create a multitude of unique effects.

Mechanical Specifications
Housing: Sheet Metal
Fastening System: 2 Quick Release Clamp Mounts, Hanging
Yoke
Power Connection: Input: Seetronics SAC3MPX
Output: Seetronics SAC3FX
Cable: Seetronics SAC3FX to Nema 5/15
Signal Connection: 5 Pin XLR In and Out
LED Angle: 140° (outer ring)
Operating Temperature: Maximum ambient temperature 115°F
Maximum surface temperature 135°F
Fuse: 5x20mm F10AL250V
Electrical Specifications
LED Quantity: 384 RGB Outer Ring, 288 Inner Ring, 80
Warm White + Amber Center, 180 Warm
White Reflective
LED Watts: 0.8 Watts each
Segments: 8 outer segments, 8 inner segments
Power Input: 110-240VAC 50/60Hz
Scan Rate: 7000 Hz
Power Supply: 100-240 A/C
Power Consumption: 445 Watts
5.43Amps @110V
Control System
Control Protocols: DMX 512
RDM: Yes/No
Channel Modes: 5 DMX modes
Main Power Connection
Power Link: 4
DMX-512: Yes
Size and Weight
Fixture Size: 39.37” X 27.92” X 34”
Fixture Weight: 51lb
Packaged Size: 45” X 22.55” X 31.5”
Packaged Weight: 151lb

Mechanical Specifications:
Housing: Sheet Metal
Fastening System: 2 Quick Release Clamp Mounts, Hanging
Yoke
Power Connection: Input: Seetronics SAC3MPX
Output: Seetronics SAC3FX
Cable: Seetronics SAC3FX to Nema 5/15
Signal Connection: 5 Pin XLR In and Out
LED Angle: 140° (outer ring)
Operating Temperature: Maximum ambient temperature 115°F
Maximum surface temperature 135°F
Fuse: 5x20mm F10AL250V

Electrical Specifications:
LED Quantity: 384 RGB Outer Ring, 288 Inner Ring, 80
Warm White + Amber Center, 180 Warm
White Reflective
LED Watts: 0.8 Watts each
Segments: 8 outer segments, 8 inner segments
Power Input: 110-240VAC 50/60Hz
Scan Rate: 7000 Hz
Power Supply: 100-240 A/C
Power Consumption: 445 Watts
5.43Amps @110V

Control System:
Control Protocols: DMX 512
RDM: Yes/No
Channel Modes: 5 DMX modes
Main Power Connection
Power Link: 4
DMX-512: Ye

Size and Weight:
Fixture Size: 39.37” X 27.92” X 34”
Fixture Weight: 51lb
Packaged Size: 45” X 22.55” X 31.5”
Packaged Weight: 151lb

Included Items:
Circa Giant #5202
Power Cable
Quick Release Clamp Mount
