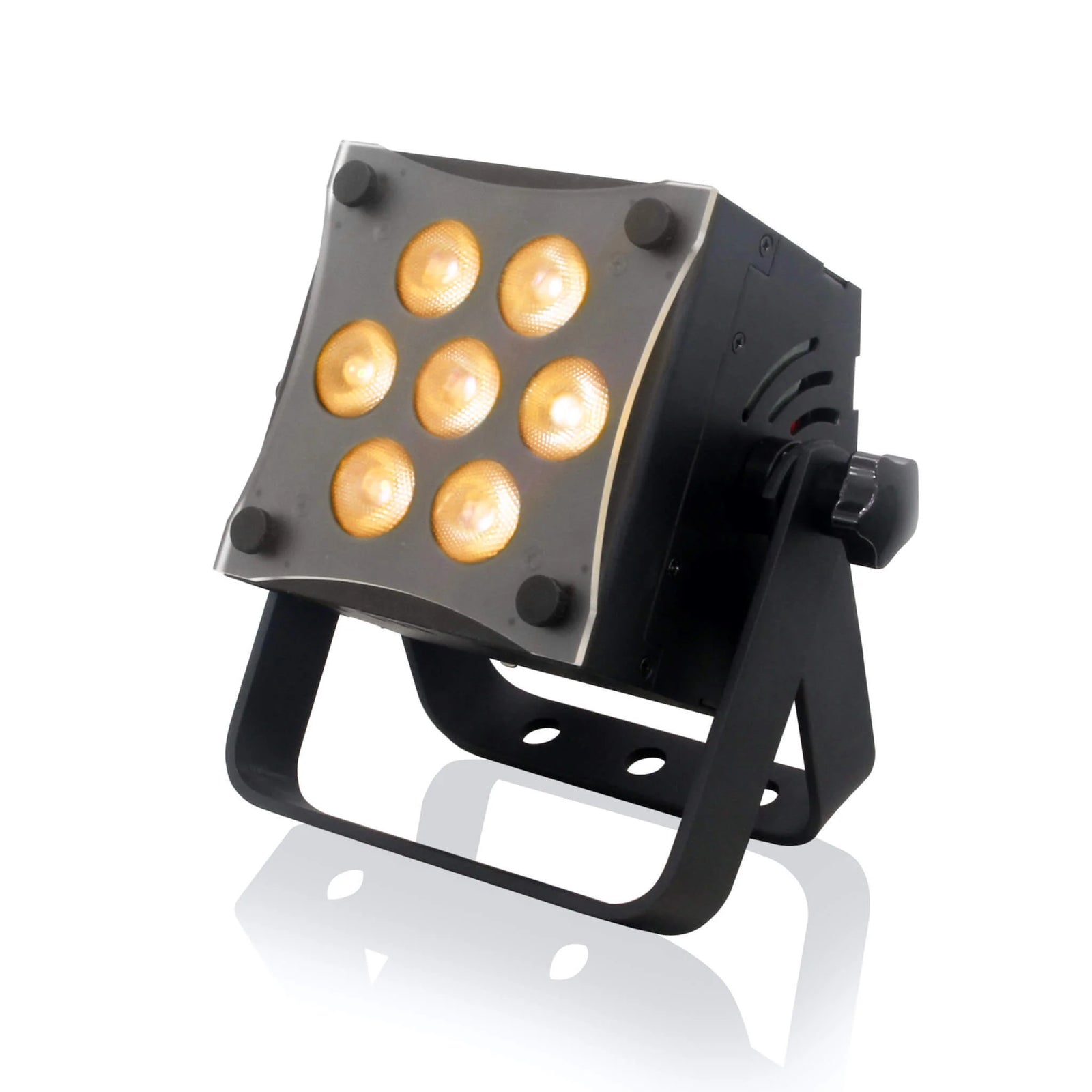

MEGA Lite Baby Color Q70 IR

The Baby Color Q70 IR is a compact, bright, color-changing fixture controlled with an infrared remote or via DMX. Its output is impressive for the size, and its capable of producing many colors, including pastel shades and bright primary colors.

This fixture has a 16° beam angle and an included diffuser that widens the beam angle to 25°. It features a dimmer, strobe, macro effects, and audio control chases via the display.

Its compact size and IR controller make it perfect for banquets, production companies, and temporary applications. It is also ideal for permanent, fully controlled systems.

Mechanical Specifications:

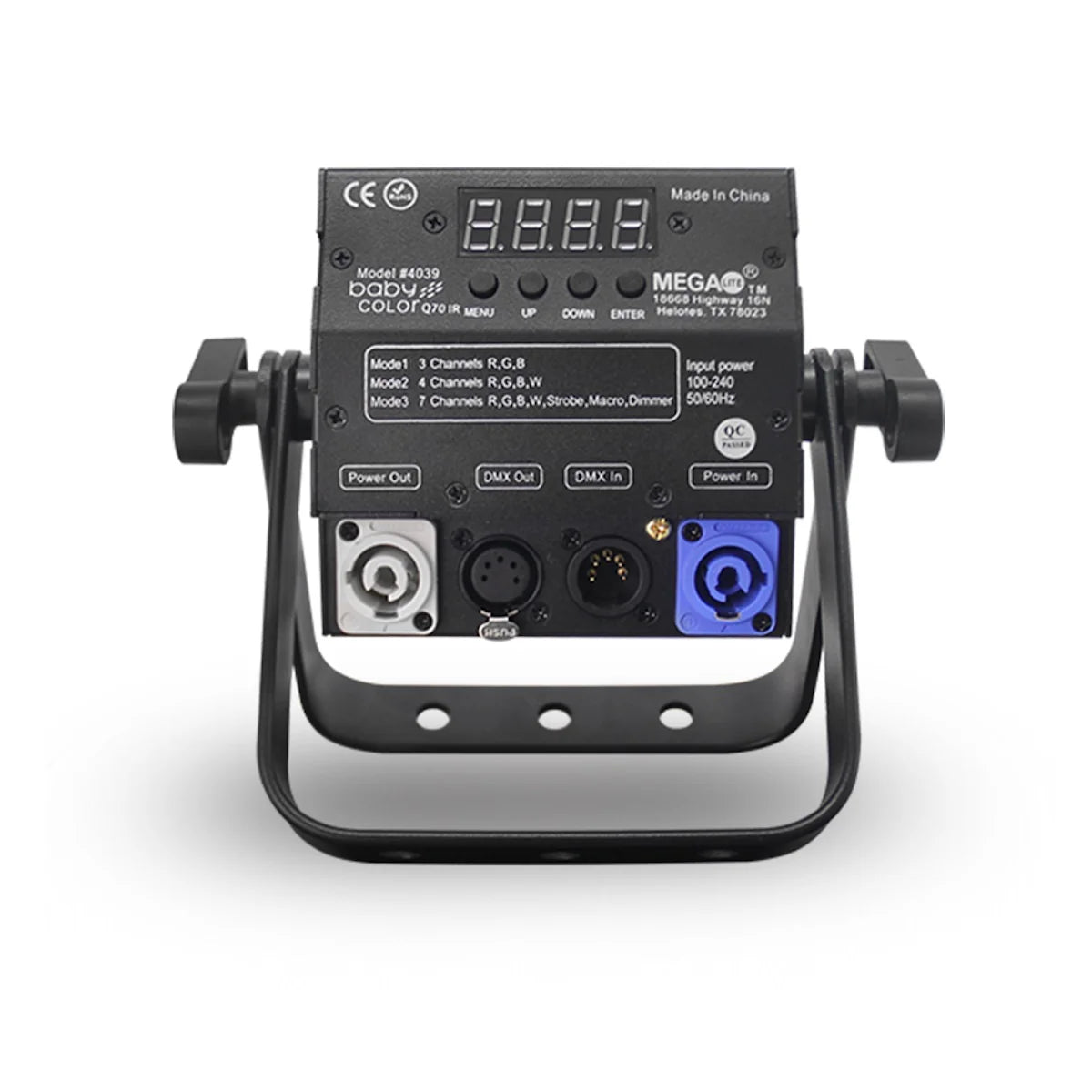

DMX Connectors: 5 Pin XLR Connectors In & Out
(Optional 3-Pin)
Thermal: Max Ambient Temperature 104°
Max Surface Temperature 140°
Fastening System: 6” Dual Yoke
Display: LED
Power Supply: 110V-240 50/60 Hz
Power Consumption: 49 Watts / .65 Amps / .61 PF

Electrical Specifications:
Power Connection: Power Con Type In and Out
LED Quantity: 7 RGBW
LED Watts: 10W
LED White CCT: 7702K
LED Angle: 16°
Diffusion Beam Angle: 27°
Power Link: 22 Units at 15 Amps @ 110V
Ballast: Electronic Auto Switching

Control System:
Protocol: DMX-512
Control Options: Audio Trigger, Main & Remote
Function, Infrared Controller
Channel Modes: Mode 1 3 Channels R,G,B
Mode 2 4 Channels R,G,B,W
Mode 3 7 Channels R,G,B,W, Strobe, Macro,
Dimmer

Size and Weight:
Fixture Size: 8.12” x 4.3” x 7.8”
Fixture Weight: 5 lb (2.27 kg)
Packaged Size: 10” x 9.5” x 5.75”
Packaged Weight: 7 lb (3.18 kg)

Photometric:
Lumens @ Full Output (Clear): 2988 lm
Efficacy: 61 lm/W
Lumens @ Full Output (Diffused): 2648 lm
Efficacy: 54 lm/W
Nominal Beam Angle: 27°
CRI: 78 (All Emitters On)

Included Items:
Baby Color Q70 IR: ITEM# 4039
Removable Diffusion Filter: ITEM# 4035-DIF
IR Controller: ITEM# 4039-CON
Power Cable: ITEM# CAB-POW-515-POW
White Power Con Connector: ITEM# CON-SEE-SAC-3FCB
User Manual
