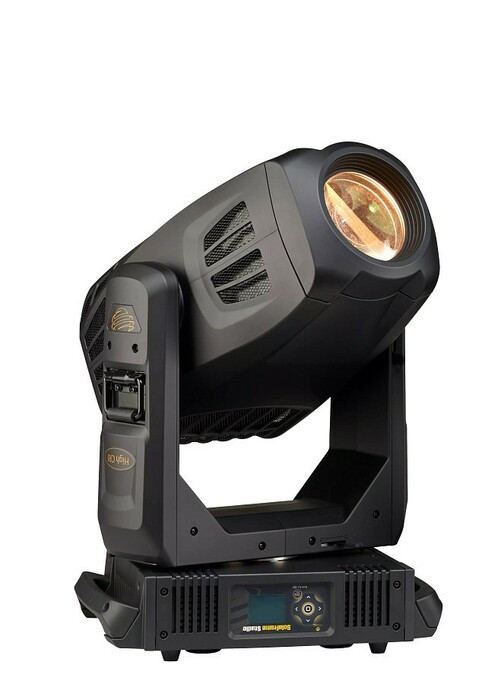

The High End Systems SolaFrame Studio is a professional LED moving spot luminaire designed for applications that require excellent color accuracy, quiet operation, and precise beam control. Powered by a 300 W High-CRI white LED engine, the fixture delivers approximately 10,000 lumens of output, making it ideal for theatres, broadcast studios, concert halls, and houses of worship.

Engineered for environments where silence is essential, the SolaFrame Studio features a convection-cooled fanless design, ensuring extremely quiet operation while maintaining high performance and reliability.

The luminaire incorporates a 13-lens optical system with a powerful 5.5°–57° zoom range, enabling lighting designers to create everything from tight beams to wide stage coverage. Advanced creative tools including CMY color mixing, a rotating gobo wheel, linear prism, framing shutters, and iris allow precise beam shaping and dynamic projection effects.

With its combination of silent operation, high color fidelity, and professional optical performance, the SolaFrame Studio is an excellent lighting solution for theatre productions, television and film studios, opera houses, and live performance venues.

Applications

• Theatres and performing arts venues

• Concert halls and opera houses

• Film and television studios

• Houses of worship

• Broadcast production environments

Features

• Bright white 300 W High-CRI LED engine

• Output up to 10,000 lumens

• Fanless convection-cooled design for silent operation

• High-quality 13-lens optical system

• Powerful 5.5°–57° motorized zoom

• CMY / CTO linear color mixing system

• Seven-position color wheel plus open

• Full-curtain framing system for beam shaping

• 16-blade iris for tight beam effects

• Rotating gobo wheel with seven patterns plus open

• Linear rotating prism for pattern effects

• Light diffusion with optional heavy frost

Specifications

Light Source

• Light Engine: Bright White High CRI LED

• LED Power: 300 W

• Max Field Lumens: 9,900 lumens

• Integrating Sphere Lumens: 10,100 lumens

• LED Life: Up to 50,000 hours

• Native Color Temperature: 5700 K

Optics

• Lens System: 13-lens optical system

• Beam Angle: 5.5° – 57° zoom

• Gate Size: 22 mm

• Aperture Size: 127 mm

Color System

• CMY color mixing

• Linear CTO color correction

• Color temperature adjustable to 2800 K

• 7 interchangeable dichroic colors plus open

Effects

• Rotating gobo wheel (7 gobos + open)

• Linear rotating prism

• Full-curtain framing shutters

• 16-blade iris

• Light diffusion with optional heavy frost

Movement

• Pan: 540°

• Tilt: 270°

Electrical

• Input Voltage: 100–240 V AC, 50/60 Hz

• Maximum Power Consumption: approx. 608 W

• Power Connector: powerCON TRUE1

Physical

• Cooling: Fanless convection-cooled

• Materials: Steel and aluminum frame with molded covers

• IP Rating: IP20

• Weight: approx. 34 kg (75 lb)
