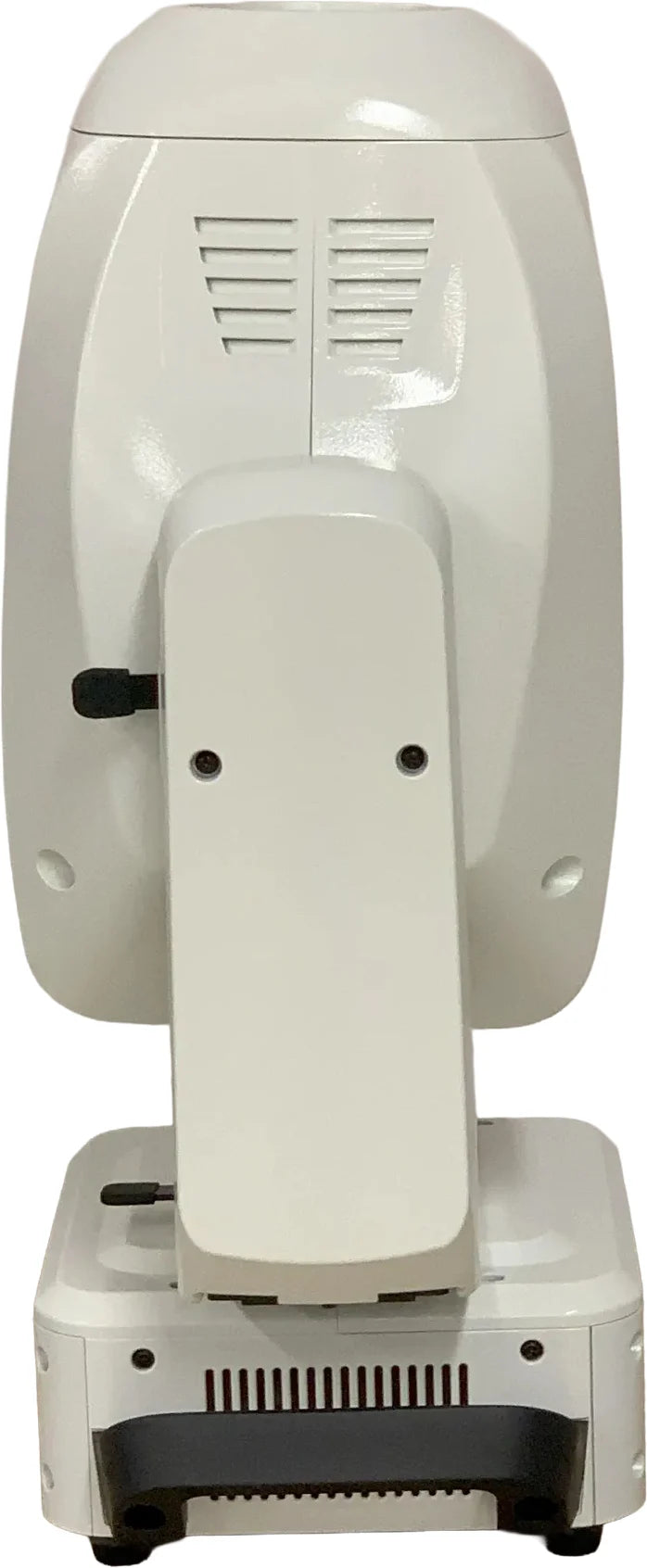

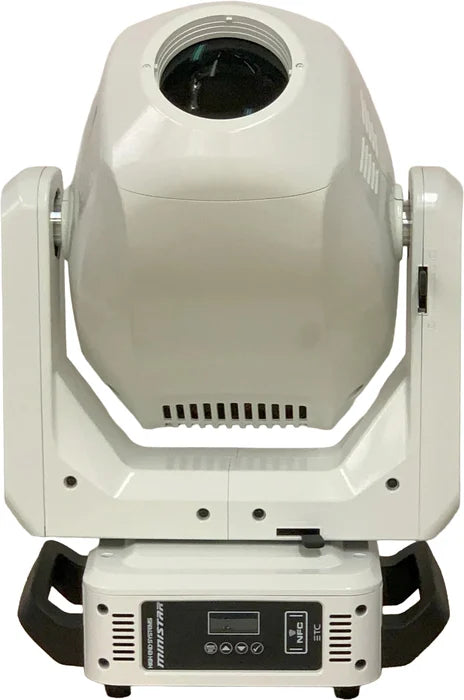

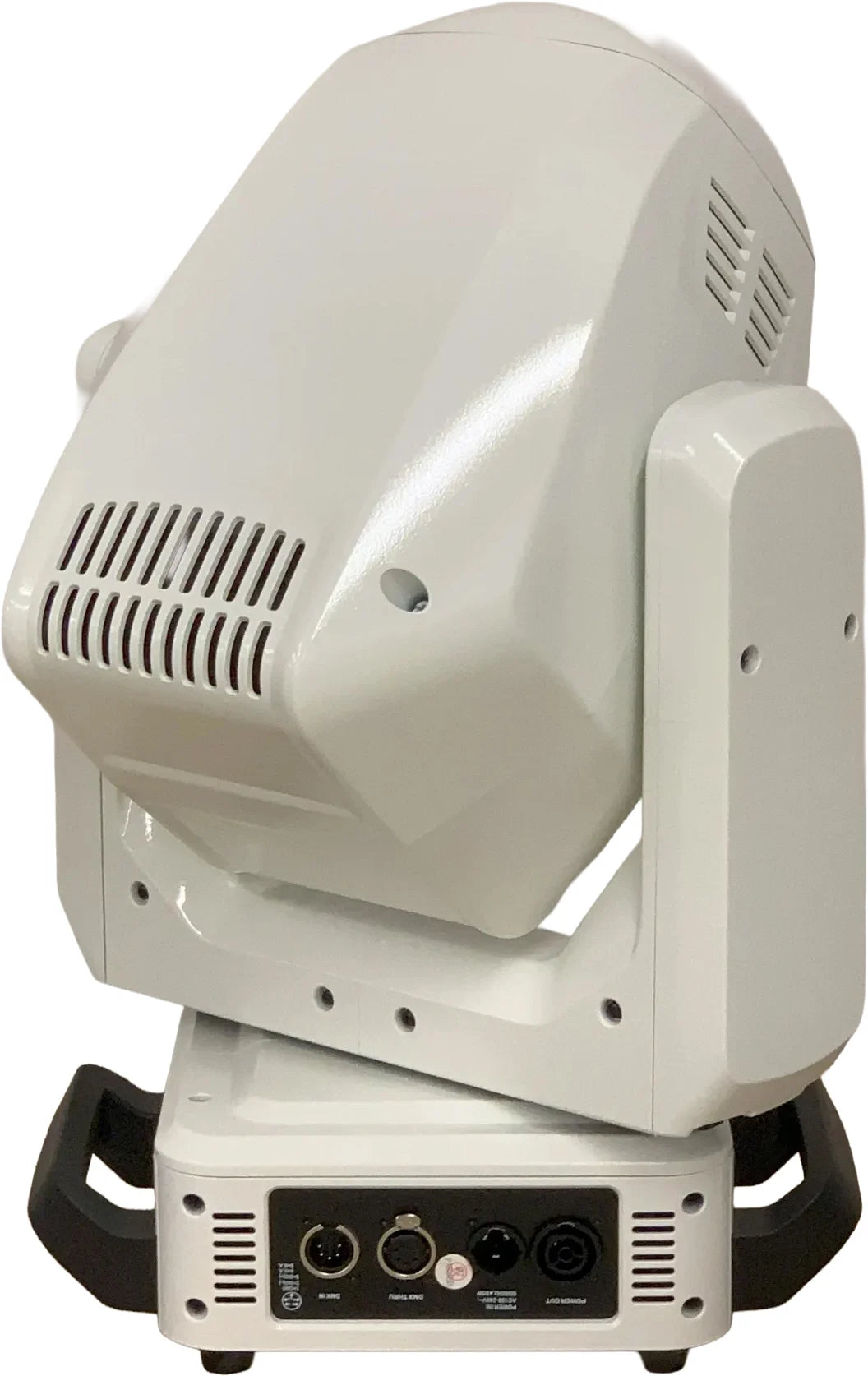

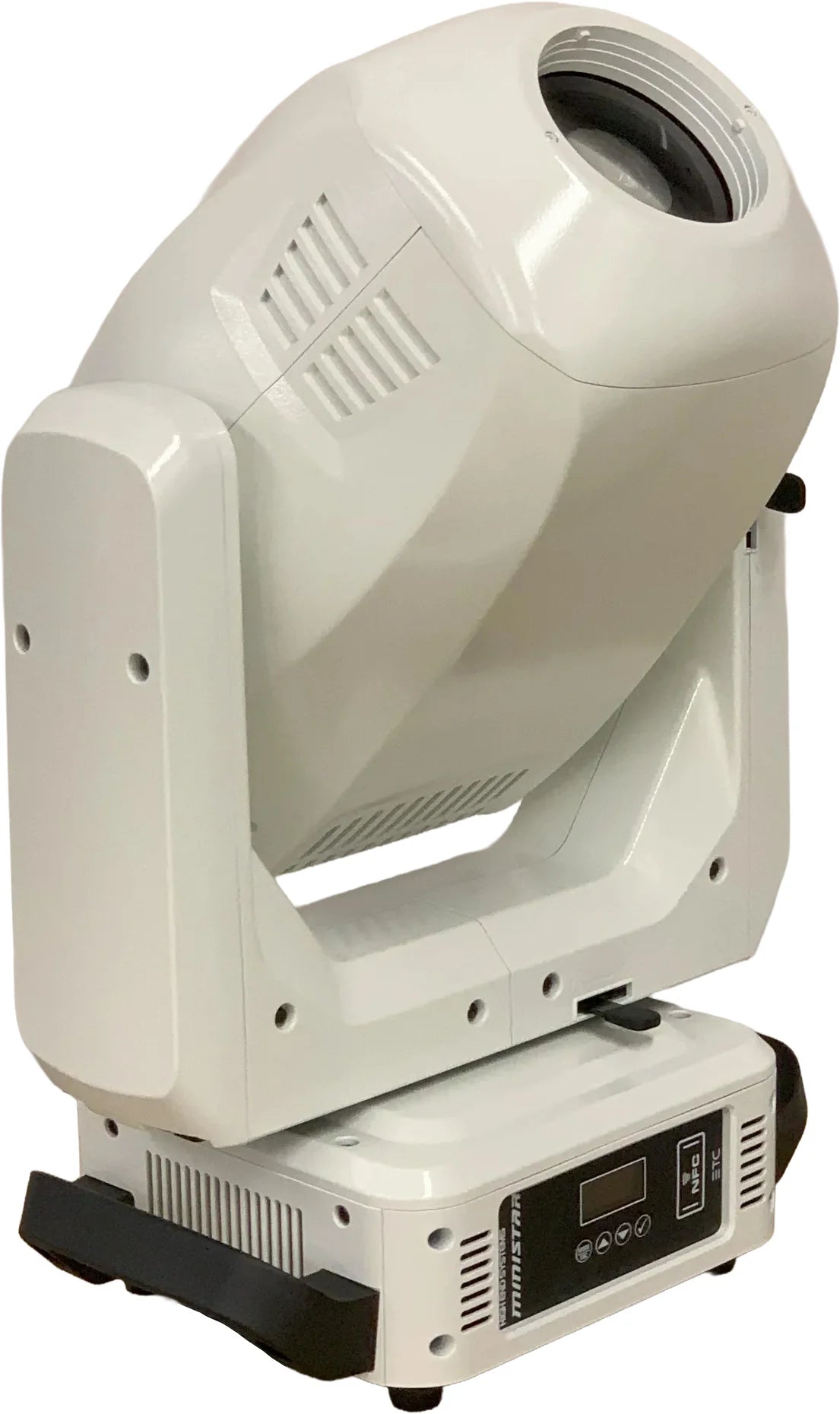

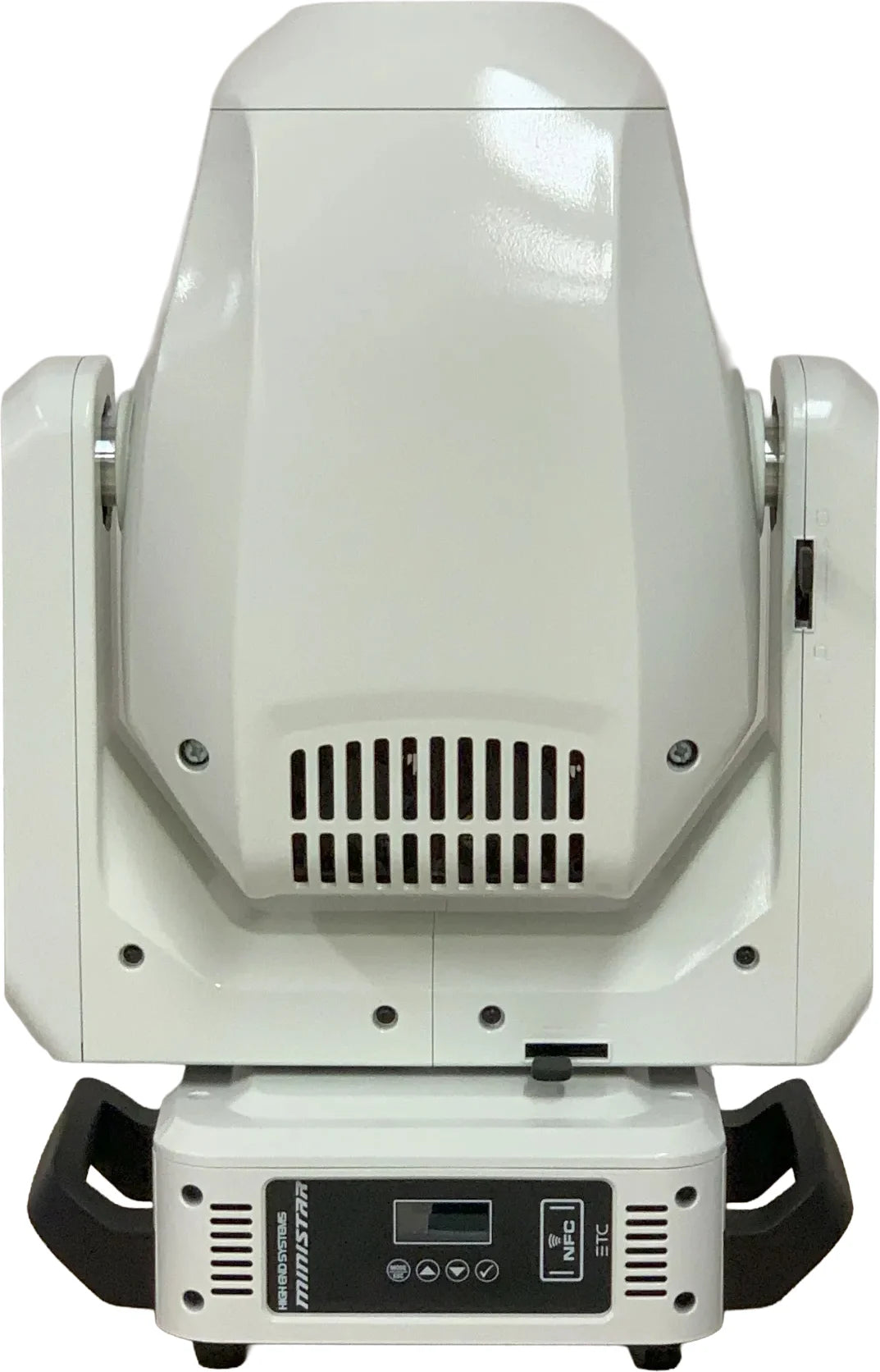

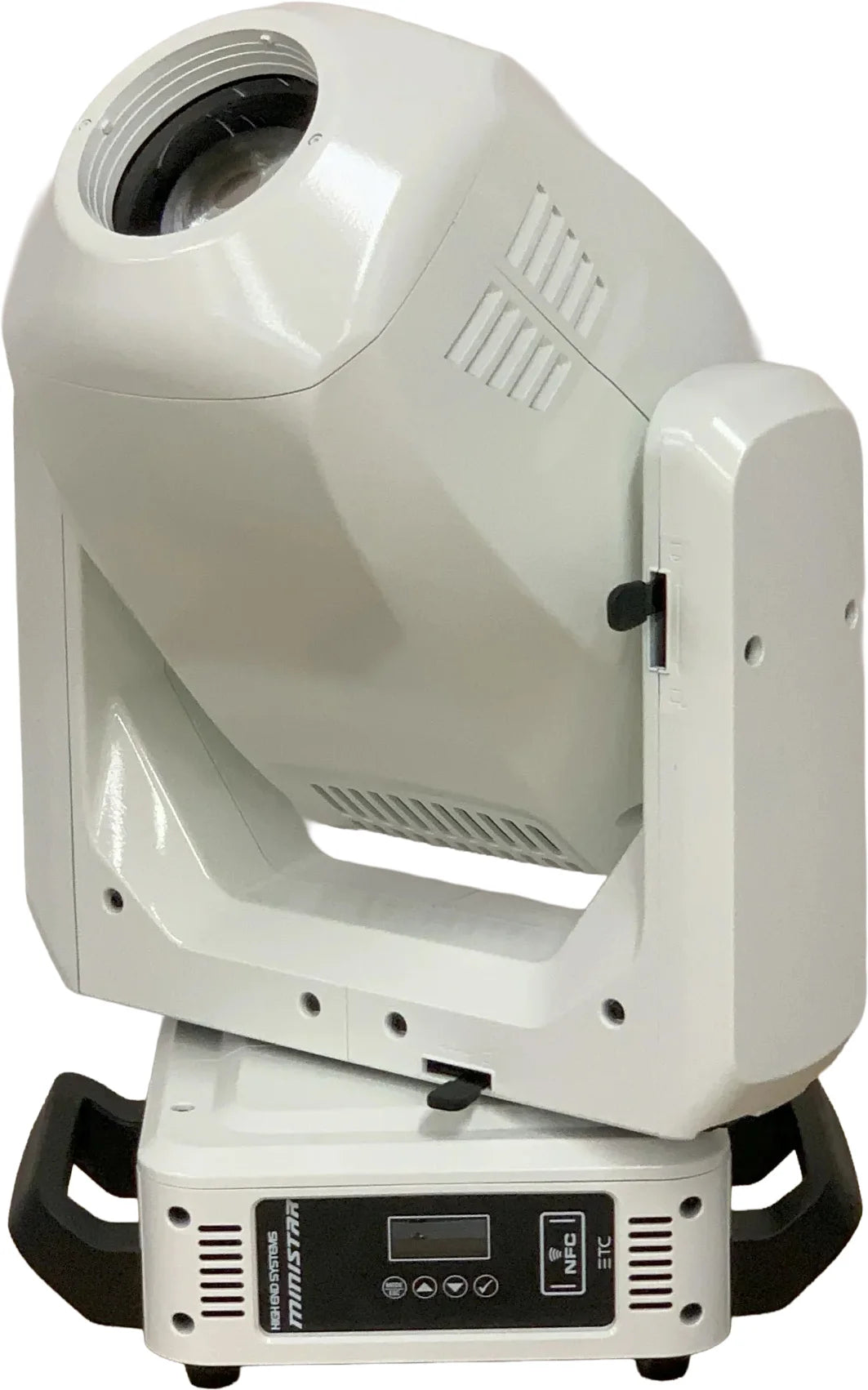

High End Systems Ministar, White Ultra bright, 300W, 9,700 lumens, VersaColor Moving Head

The High End Systems Ministar is a high‑impact LED moving head fixture offering an exceptional combination of brightness, versatility, and professional features in a compact footprint — ideal for small to medium venues such as nightclubs, theatres, tradeshows, cruise ships, houses of worship, and rental systems. Powered by a 300 W Ultra‑Bright LED engine, it produces over 9,700 lumens of output and delivers vibrant aerial effects with precise control of color, beam, and texture. Its VersaColor system offers 60 unique colors across the gamut, while QuadraTech enables split and quad‑color effects for enhanced visual dynamics. With motorized 6.5°–48° zoom, gobo projection, variable diffusion, and prism effects, the Ministar combines punchy performance with creative flexibility.

Features

• 300 W Ultra‑Bright LED engine with output exceeding 9,700 lumens.

• VersaColor technology — 60 unique colors across the full color gamut via a single channel control.

• QuadraTech beam splitting for creative multi‑color effects.

• Motorized 6.5°–48° zoom for dynamic beam shaping and wash effects.

• Dual gobo wheels:
  • Rotating gobo wheel with 6 positions plus open (replaceable)
  • Fixed gobo wheel with 9 positions plus open.

• Variable medium diffusion for softening beam edges and wash.

• Prism effects for compound beam shaping and projection.

• Compact, lightweight design ideal for tight spaces or mobile rigs.

Specifications

Light Source & Brightness

• LED Engine: 300 W Ultra‑Bright White LED.

• Maximum Output: > 9,700 lumens.

• LED Lifespan: ~50,000 hours (typical).

Color & Effects

• Color System: VersaColor (60 unique colors).

• QuadraTech multi‑color splitting capabilities.

• Variable medium diffusion.

• Prism for compound effects.

Optical

• Zoom Range: 6.5°–48° motorized.

• Gobo Wheels:
  • Rotating (6+open, replaceable)
  • Fixed (9+open).

Control & Connectivity

• Control Method: DMX‑512 via 5‑pin XLR.

• Protocols: DMX512 (RS‑485).

• Local UI: Text display with 4‑button navigation; RDM supported.

Electrical

• Voltage: 100–240 VAC, 50/60 Hz.

• Power Input: powerCON TRUE1 TOP.

• Typical Power Draw: ~450 W max.

Physical

• Mounting: Any orientation.

• Weight: Approx. 16.2 kg (35.7 lb).

• IP Rating: IP20 (indoor use).

Applications

• Nightclubs, concert venues, theatres.

• Cruise ships and themed attractions.

• Production rental houses and tradeshows.

• Studios and broadcast environments.
