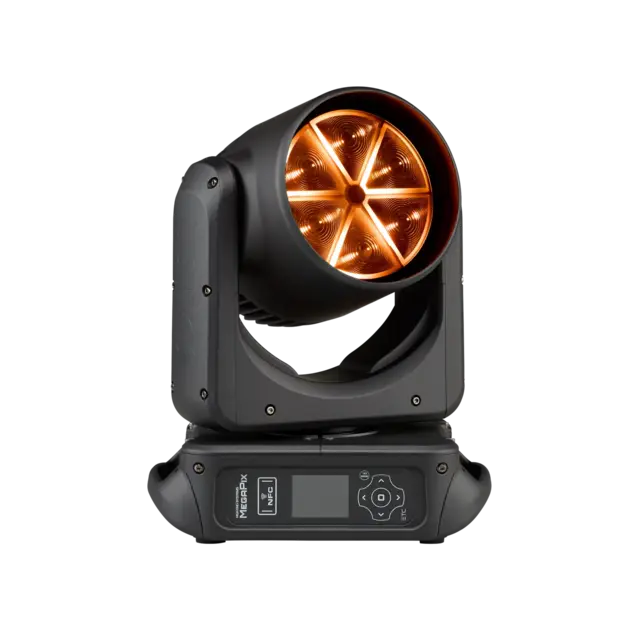

High End Systems MegaPix Black, in Molded Insert, Boxed

The ETC High End Systems MegaPix is a professional pixel wash moving head luminaire designed for theatres, concerts, broadcast studios, and large live events. Built with a custom RGBL LED engine, the fixture delivers vibrant saturated colors and accurate tunable white light with output exceeding 10,000 lumens.

A patented Integrated Fresnel Lens (IFL) system produces the classic smooth wash effect of a traditional Fresnel lens while maintaining strong brightness across the entire zoom range. This optical system enhances beam quality and improves efficiency, allowing designers to create elegant stage washes or tighter beams with precision.

The MegaPix includes six individually controlled pixel cells with powerful pixel-mapping capabilities and the FleX Effects engine, enabling dynamic lighting effects, macros, and animated face looks directly on the fixture. With a 4.5°–50° motorized zoom, the light can transition from narrow beam effects to wide wash coverage.

Designed for professional environments, the fixture features DMX, Art-Net, and sACN control compatibility and an IP54 weather rating, allowing reliable use in indoor theatres as well as outdoor festival stages.

Features

• RGBL LED color mixing
• Over 10,000 lumens output
• Integrated Fresnel Lens system
• 4.5°–50° motorized zoom
• Six-cell pixel mapping
• FleX Effects macro engine
• 2000K–10,000K tunable white
• DMX / Art-Net / sACN control
• IP54 weather protection
