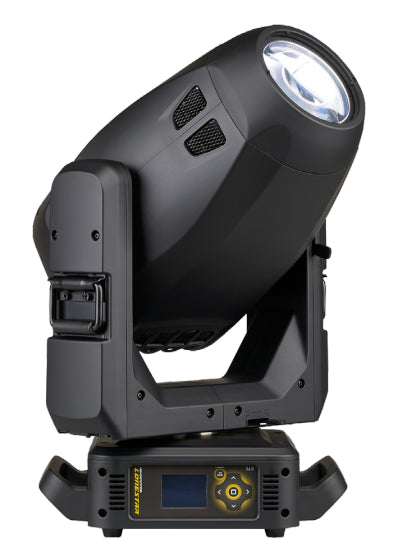

High End Systems Lonestar, White, Ultra-Bright in Molded Insert, Boxed

The High End Systems Lonestar Ultra-Bright (White) is a compact automated LED framing moving-head fixture designed to deliver powerful performance for professional lighting applications. Powered by a 290 W ultra-bright white LED engine, the fixture produces over 15,400 lumens through a high-quality 13-lens optical system, delivering bright beams, rich colors, and precise projection effects.

With its 3.8°–55° motorized zoom, CMY color mixing, and full-curtain framing shutters, the Lonestar provides lighting designers with advanced beam-shaping and color-control capabilities. Additional effects such as rotating gobos, dual prisms, an animation wheel, and a 16-blade iris enable dynamic textures and projection effects across the stage or venue.

This version comes in a white finish and is boxed in a molded insert for safe transport and storage. The fixture includes Omega mounting brackets, a power cable with powerCON TRUE1 TOP input, and a safety cable for quick installation.

Features

• 290 W Ultra-Bright LED engine

• 15,400+ lumen output

• High-quality 13-lens optical system

• 3.8°–55° motorized zoom

• CMY color mixing with linear CCT control

• 10-position color wheel plus open

• Full-curtain framing shutter system

• 16-blade iris for tight beam effects

• 9 rotating gobos plus open

• Dual prisms and rotating animation wheel

Specifications

Light Source

• LED Type: White LED

• Power: 290 W

• Fixture Output: 15,400 lumens

• LED Life: Up to 50,000 hours

• Native Color Temperature: 7000 K

Optical System

• Optics: 13-lens optical system

• Zoom Range: 3.8° – 55° motorized zoom

• Iris: 16-blade mechanical iris

• Diffusion: Light & Medium diffusion with optional heavy diffusion

Effects

• Color Mixing: CMY + electronic CTO

• Color Wheel: 10 dichroic colors + open

• Rotating Gobos: 9 positions + open

• Animation: Rotating animation wheel

• Prisms: 5-facet circular prism and 4-facet linear prism

Control

• Protocols: DMX-512, RDM, Art-Net, sACN

• DMX Channel Mode: 48 channels

• Local Control: Graphical display with navigation buttons

Electrical

• Voltage: 100–240 V, 50/60 Hz

• Power Consumption: Approx. 615 W max

• Power Input: powerCON TRUE1 TOP

Physical

• Finish: White

• Pan / Tilt: 540° pan, 251° tilt

• Weight: 50 lb (22.7 kg)

• Rating: IP20 indoor use

Included Accessories

• Two (2) Omega mounting brackets

• Power cable (bare ends to powerCON TRUE1 TOP)

• Safety cable

Applications

• Theatres and performing arts venues

• Television studios and film production

• Cruise ships and themed entertainment

• Houses of worship

• Nightclubs and retail installations

• Production rental companies and touring events
