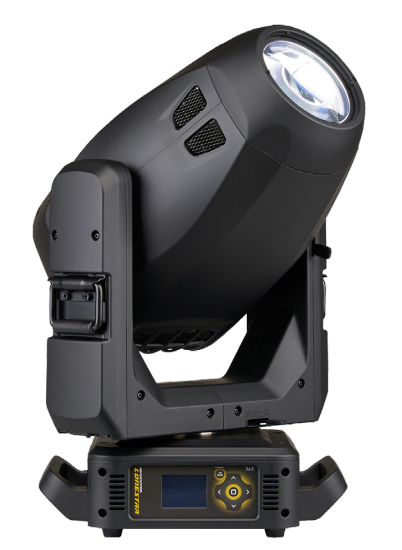

High End Systems Lonestar Ultra-Bright Boxed in Molded Insert White

The High End Systems Lonestar Ultra-Bright is a compact yet powerful LED framing moving-head fixture designed to deliver professional lighting performance in a wide range of venues. Producing over 15,400 lumens of output, Lonestar combines a 290 W ultra-bright LED engine with a high-quality 13-lens optical system to produce strong beams, rich colors, and precise projection effects.

With an extremely wide 3.8°–55° motorized zoom, advanced CMY color mixing, and a full-curtain framing system, the fixture allows lighting designers to shape, color, and control light with precision. Additional creative tools such as rotating gobos, dual prisms, an animation wheel, and a 16-blade iris provide powerful visual effects for both beam and projection applications.

Despite its high performance, the Lonestar maintains a compact form factor, making it ideal for theatres, broadcast studios, cruise ships, houses of worship, and medium-sized venues. Each fixture ships boxed in a molded insert for secure transport and includes essential mounting accessories for quick setup.

Features

• 290 W ultra-bright white LED engine delivering over 15,400 lumens of output

• High-quality 13-lens optical system for excellent beam clarity and efficiency

• Extremely powerful 3.8°–55° motorized zoom for beam, spot, and wash applications

• CMY color mixing system with electronic linear CCT control

• 10-position plus open color wheel for quick color effects

• Full-curtain framing shutters for precise beam shaping and projection control

• 16-blade iris for tight beam effects

• Two diffusion filters (Light and Medium) with optional heavy diffusion available

• 9-position rotating gobo wheel plus open for texture projection

• Dual prisms for complex beam and projection effects

• Linearly insertable rotating animation wheel for dynamic movement effects

• Compact design suitable for touring, installations, and production environments

Specifications

Light Source

• LED Engine: 290 W Ultra-Bright White LED

• Fixture Output: >15,400 lumens

• Optics: 13-lens optical system

Optical System

• Zoom Range: 3.8° – 55° motorized zoom

• Framing System: Full-curtain framing shutters

• Iris: 16-blade iris for narrow beam effects

• Diffusion: Light and Medium diffusion filters (optional heavy diffusion)

Color & Effects

• Color Mixing: CMY color mixing system

• CCT Control: Electronic linear color temperature mixing

• Color Wheel: 10 positions plus open

• Rotating Gobo Wheel: 9 positions plus open

• Prism Effects: Dual prisms

• Animation: Rotating animation wheel

Power & Connectivity

• Power Input: powerCON TRUE1 TOP

• Control: DMX-512 compatible

• Power Cable: Included with bare ends to powerCON TRUE1 TOP input

Included Accessories

• Two (2) Omega mounting brackets

• One (1) power cable (bare ends to powerCON TRUE1 TOP)

• One (1) safety cable

Packaging

• Boxed with molded insert for protection during transport and storage

Applications

• Houses of worship

• Nightclubs and retail installations

• Small to medium performance venues

• Cruise ships and themed entertainment

• Production rental companies

• Trade shows and ballroom AV

• Studio and film production
