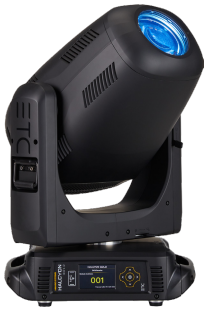

The High End Systems HAL‑G‑UB‑CAM‑WHT Halcyon Gold with RigPOV is a high‑performance automated framing fixture that combines powerful illumination with advanced beam‑shaping tools and integrated camera monitoring. Designed for professional lighting applications, this fixture delivers the renowned quality, precision, and versatility of the Halcyon series in a compact automated luminaire perfect for theatres, studios, houses of worship, and live production environments.

Powered by a 430 W Ultra‑Bright LED engine with output exceeding 31,000 lumens, the Halcyon Gold offers rich, even illumination with smooth motorized zoom from 6° to 57° for everything from tight spot effects to wide stage washes. Integrated CMY and CTO color mixing provides designers with flexible color control, while the full‑curtain framing system, rotating and fixed gobo wheels, dual prisms, 16‑blade iris, and animation wheel expand creative possibilities.

This ultra‑bright white version also features the optional RigPOV camera kit, which enables a low‑latency livestream perspective from the rig itself, useful for technical monitoring, followspot reference, and advanced control workflows. The fixture ships boxed with a molded insert for secure transport and storage.

Features

• Ultra‑Bright 430 W white LED engine with over 31,000 lumens output

• Motorized 6°–57° zoom range for flexible beam control

• CMY + CTO color mixing system for accurate color rendering

• Full‑curtain framing shutter system for precise beam shaping

• Dual gobo wheels (rotating & fixed) for pattern effects

• 16‑blade iris for tight beam control

• Dual prisms for compound beam and projection effects

• Rotating animation wheel for textured effects

• Integrated RigPOV camera kit for livestream viewing from the rig perspective

• Boxed with molded insert for safe storage and transport

Applications

• Theatres and performing arts venues

• Television, film, and broadcast studios

• Houses of worship

• Cruise ships and themed entertainment

• Rental companies and touring productions

• Tradeshow and ballroom AV environments

Specifications

Light Source

• LED Engine: Ultra‑Bright white 430 W LED

• Max Output: >31,000 lumens

• LED Life: Approx. 50,000 hours

• Native CCT: ~6500 K (variable)

Optical

• Zoom Range: 6°–57° motorized

• Lens System: High‑quality 13‑lens optical design

• Color Mixing: CMY + CTO

• Color Wheel: 7 dichroic colors + open

Effects

• Full‑curtain framing system

• Rotating and fixed gobo wheels

• Dual prisms

• Animations wheel

• 16‑blade iris

Control

• DMX512, Art‑Net, sACN control protocols supported

• Local graphical display and navigation

RigPOV Camera

• Integrated camera with low‑latency livestream output

• Designed for monitoring and remote reference

Mechanical

• Mounting: Standard rigging points

• Includes: Molded insert, rigging hardware, power accessories

Physical

• Finish: White

• Packaged: Boxed with molded protective insert
