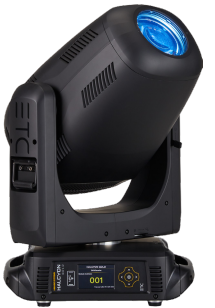

The High End Systems HAL‑G‑UB‑CAM Halcyon Gold with RigPOV combines powerful lighting performance with cutting‑edge monitoring capability in a professional automated framing fixture. As the smallest member of the Halcyon family, this ultra‑bright fixture delivers exceptional output and creative control in a compact, rugged form factor suitable for theatres, studios, houses of worship, cruise ships, and live production environments.

Equipped with a 430 W Ultra‑Bright LED engine producing over 31,000 lumens of high‑quality illumination, Halcyon Gold features a versatile 6°–57° motorized zoom, advanced color mixing with CMY + CTO, and an extensive effects suite including framing shutters, rotating and fixed gobos, dual prisms, 16‑blade iris, and an animation wheel for creative beam shaping and textural effects.

This version includes the integrated RigPOV camera system, providing a low‑latency live video feed from the rig perspective via NDI streaming — ideal for remote followspot operation, programming reference, and enhanced stage visibility without physical repositioning.

The fixture ships boxed with a molded insert to protect the unit during storage and transport, making it a complete and dependable solution for professional lighting designers and production companies.

Features

• High‑output 430 W Ultra‑Bright white LED engine

• Fixture output exceeding 31,000 lumens

• Motorized 6°–57° zoom range

• Advanced CMY + CTO color mixing

• Full‑curtain framing shutter system

• Rotating gobo wheel and fixed gobo wheel

• Dual prisms for compound beam effects

• 16‑blade iris for precise beam control

• Animation wheel for dynamic textures

• Integrated RigPOV camera system for live rig perspective

• Boxed with molded protective insert

Applications

• Theatres and performing arts venues

• Television, film, and broadcast studios

• Houses of worship

• Cruise ships and themed entertainment

• Production rental companies

• Tradeshow and ballroom AV setups

Specifications

Light Source

• LED Engine: Ultra‑Bright white LED

• LED Power: 430 W

• Max Integrating Sphere Lumens: ~31,000 lm

• LED Life: ~50,000 hours

• Native CCT: ~6500 K

Optics

• Zoom Range: 6°–57° motorized

• Lens System: High‑quality 13‑lens design

• Color Mixing: CMY + CTO

• Color Wheel: Seven dichroic colors + open

• Gobo Wheels: Rotating and fixed pattern wheels

Effects & Beam Control

• Full‑curtain framing shutter system

• Dual prisms for enhanced beam effects

• 16‑blade iris

• Animation wheel for beam texture and motion

RigPOV Camera

• Integrated camera system

• Low‑latency live feed via NDI streaming

• Provides fixture‑mounted perspective for followspot/reference

Control

• DMX512 / RDM support

• Art‑Net and sACN over Ethernet

• Local graphical user interface

Electrical

• Input Voltage: 100–240 V AC

• Power Input: powerCON TRUE1 TOP

• Typical Power Consumption: High (varies with mode)

Physical

• Finish: Black

• Packaging: Boxed with molded protective insert

• Rigging: Integrated mounting points
