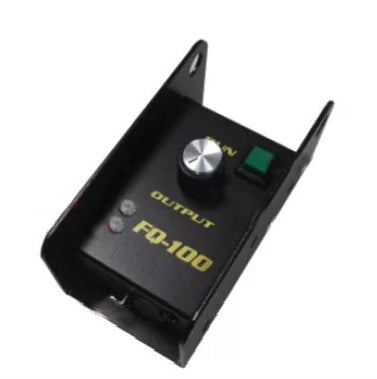

High End Systems FQ‑100 Performance Fog Generator (External Remote) 110V

The High End Systems FQ‑100 Performance Fog Generator is a professional atmospheric effects unit designed to deliver dense fog or fine mist for theatrical, concert, nightclub, and touring applications. Built to meet the demands of live production environments, it features a large removable 9.5 L fluid reservoir and a water‑based fog generating system that produces safe, fine particulate fog optimized for lighting effects. The unit includes a digital LCD menu for precise control of volume, timer, and DMX settings, as well as low noise operation suitable for stage and studio use. With DMX control and optional external remote compatibility, the FQ‑100 provides versatile control options for creative atmospheric effects.

Features

• Large 9.5 L removable fluid reservoir for extended use

• Atmospheres® water‑based fog producing safe, fine particulate output

• Digital LCD menu for timer, volume, and DMX control

• Timer functions with interval, duration, and continuous modes

• DMX‑512 control via 3‑pin and 5‑pin XLR connections

• Low noise operation for theatrical and studio environments

• Fluid level sight gauge and user‑replaceable filter

Specifications

• Model/SKU: FQ‑100 Performance Fog Generator External Remote

• Type: Professional fog machine

• Fluid Capacity: 9.5 L (2.5 gal) removable reservoir

• Output: Up to 20,000 cu.ft/min (566 m³/min) fog output

• Warm‑Up Time: Approx. 11 min

• Fluid Consumption: ~1 L per 10 min at high output

• Power Consumption: 1500 W (100–120 VAC)

• Control: DMX‑512 compatible

• Connectors: 3‑pin and 5‑pin XLR DMX in/out

• Display/Control Interface: Digital LCD menu

• Noise Level: Low noise for performance environments

• Dimensions: Approx. 25.4″ × 11.9″ × 6.6″

• Weight: Approx. 34 lb (15.5 kg)
