High End Systems DF-5000 Dataflash 5000 Strobe Fixture, 52,000 Lumens

SKU DF-5000
Barcode 2530A1000
Sale price
$2,400
Regular price
$3,000
You save
20%
High End Systems DF-5000 Dataflash 5000 Strobe Fixture, 52,000 Lumens

High End Systems DF-5000 Dataflash 5000 Strobe Fixture, 52,000 Lumens

$2,400
$3,000

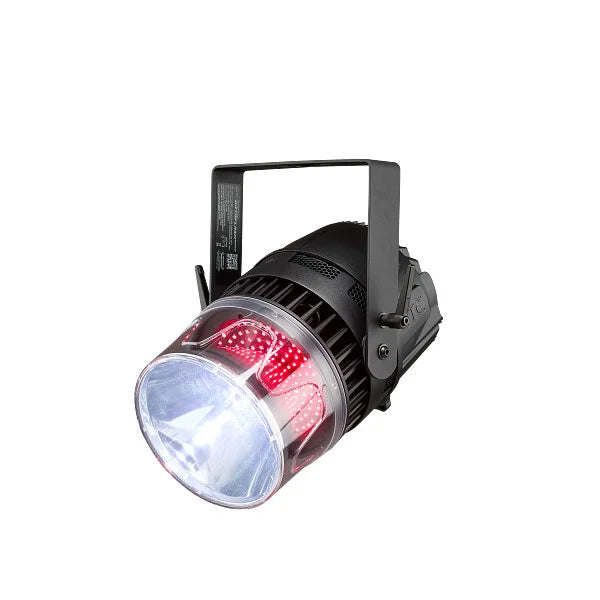

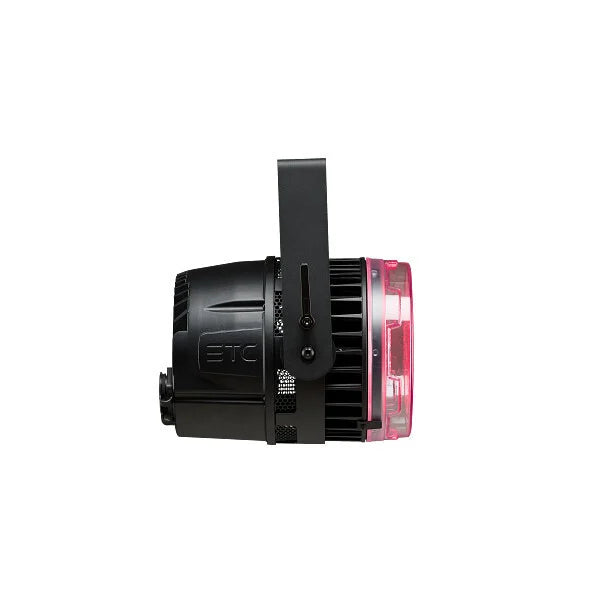

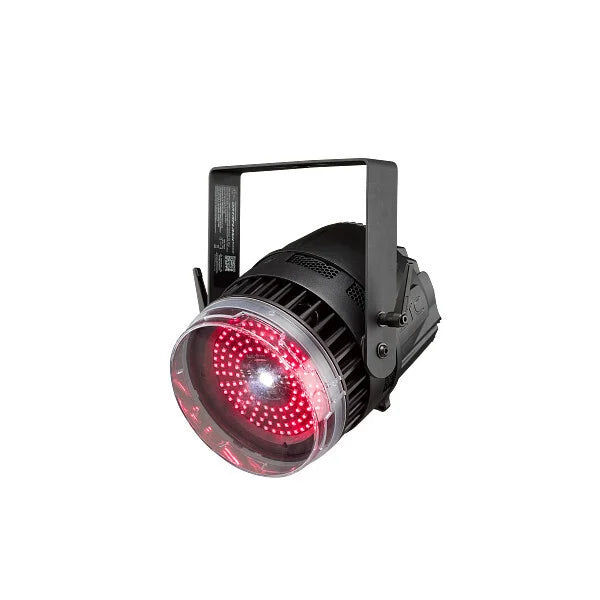

The High End Systems Dataflash 5000 (DF-5000) is a high-impact professional LED strobe and blinder fixture designed for concerts, festivals, theatres, and large-scale live productions. Despite its compact design, the fixture delivers over 52,000 lumens of intense output, enabling dramatic strobe bursts and powerful visual effects for high-energy moments on stage. It features a central dual-white LED engine with adjustable color temperature (3200 K–7500 K) surrounded by an RGB LED array for vivid color effects and pixel-mapped visuals.

The Dataflash 5000 includes two interchangeable dome accessories—a Reflector Dome for focused strobe output and an Eye Candy (EC) Dome for enhanced visual effects. With IP65 weather protection, the fixture is built for both indoor and outdoor productions, making it ideal for touring events and festival stages. Advanced control features such as DMX, RDM, pixel-segment control, and multiple strobe macros give lighting designers precise creative control for dynamic lighting moments.

Features

  • High-output LED strobe fixture delivering over 52,000 lumens for powerful visual impact.

  • Dual-white central LED engine with adjustable color temperature from 3200 K to 7500 K.

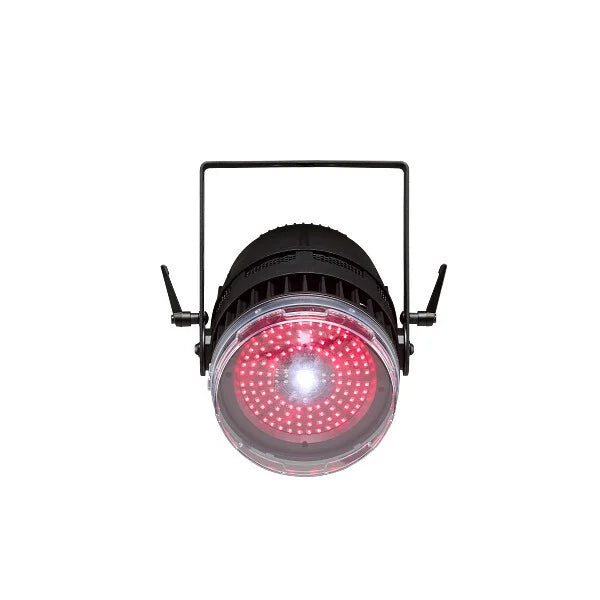

  • 120 RGB LEDs surrounding the central engine for vibrant color effects.

  • Eight-segment pixel control for advanced pixel-mapping and dynamic effects.

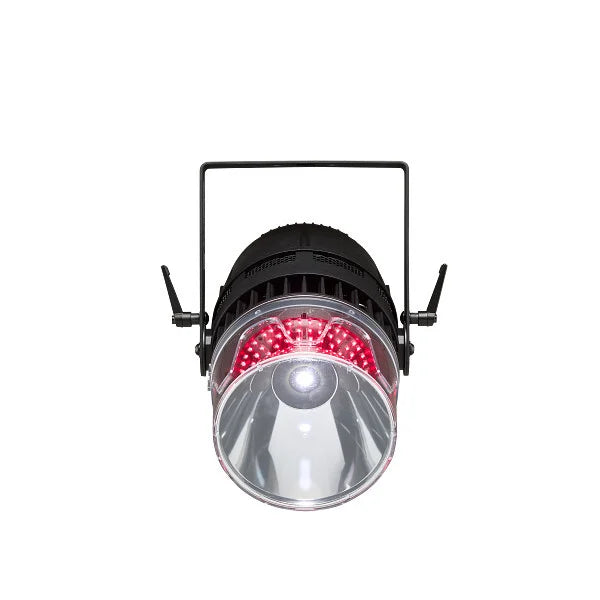

  • Includes Reflector Dome for focused strobes and EC Dome for creative visual textures.

  • IP65 weatherproof rating suitable for indoor and outdoor productions.

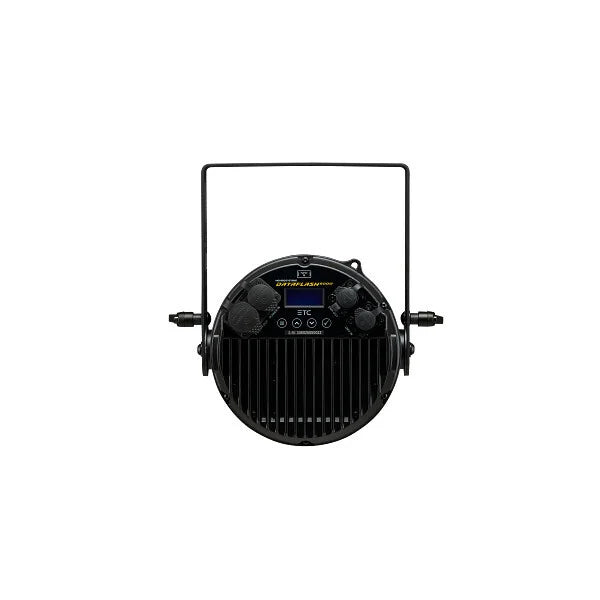

  • Back-lit display with four-button navigation for quick local setup.

  • Extensive strobe macros and effects for creative lighting design.

  • Built for concert touring, festivals, theatres, and broadcast productions.

Specifications

Light Source

  • LED Engine (Center): Dual white LED COB

  • LED Engine (Effects): 120 custom RGB LEDs

  • Maximum Output: 52,000 lumens

  • LED Life: 50,000 hours (typical)

  • Efficacy: ~52 lm/W

Color

  • Color Mixing: RGB segmented control

  • Color Temperature: 3200 K – 7500 K variable white

Optical

  • Beam (Reflector Dome): 60° central strobe/blinder

  • Beam (EC Dome): 120° wide distribution

  • Aperture Size: 216 mm

  • Flicker Control: 2.4 kHz – 16.6 kHz

Control

  • Protocol: DMX-512 (RS-485)

  • RDM Support: Yes

  • Channel Modes: 7, 19, or 40 channels

  • Pixel Control: 8 segments

  • Local Control: Display with 4-button navigation

  • NFC configuration support

Electrical

  • Voltage: 100–240 V AC, 50/60 Hz

  • Power Consumption: 1000 W

  • Connectors: Seetronic X-Series IP65 or powerCON TRUE1 TOP

  • Max Current:

    • 9.54 A @ 100 V

    • 3.62 A @ 240 V

Physical

  • Construction: Aluminum body with acrylic dome

  • IP Rating: IP65 (dust and water resistant)

  • Weight: 7 kg (15.5 lb)

  • Mounting: Multi-orientation mounting with yoke

Included Accessories

  • Reflector Dome

  • EC Dome

  • IP65 fixture tail cable

  • Yoke mount

  • Safety cable
