The Prestige Series P-3600 AR G is a 3RU power conditioner/True RMS voltage regulator that offers a one-of-a-kind power management solution for A/V professionals around the globe. The P-3600 AR G ensures stable 120V power delivery from any input voltage source between 100V to 127V or 208V to 240V.
The unit provides connected 120V equipment with stable voltage, power protection, and AC line filtration, ideal for use with 120V A/V gear when traveling to countries with 100V, 220V, 230V, or 240V services.
The predecessor to the P-3600 AR G, the AR-PRO, has been an indispensable product for many professional users. The updated model features True RMS Regulation Technology (utilizing an ultra-low-noise toroidal isolation transformer/autoformer, high-current switching TRIACs, and micro-processing control) to step-down or step-up input voltages. It also offers exclusive LiFT/SMP/EVS technologies for professional-level protection and linear AC noise filtration.
These features, along with the P-3600 AR G’s 30A output capacity and wide input voltage capture range, make it a unique solution among other portable power conditioner/voltage regulators and a reliable, application-specific alternative to typical step-up/step-down transformers.
Technical Specifications
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 amps
AC Input: L-14 Male Twistlock Inlet (Twistlock Cable-Mount Connector Included)
Line Voltage: 120 (Volts)
Number of Outlets: 11
Number of Isolated Banks: 0

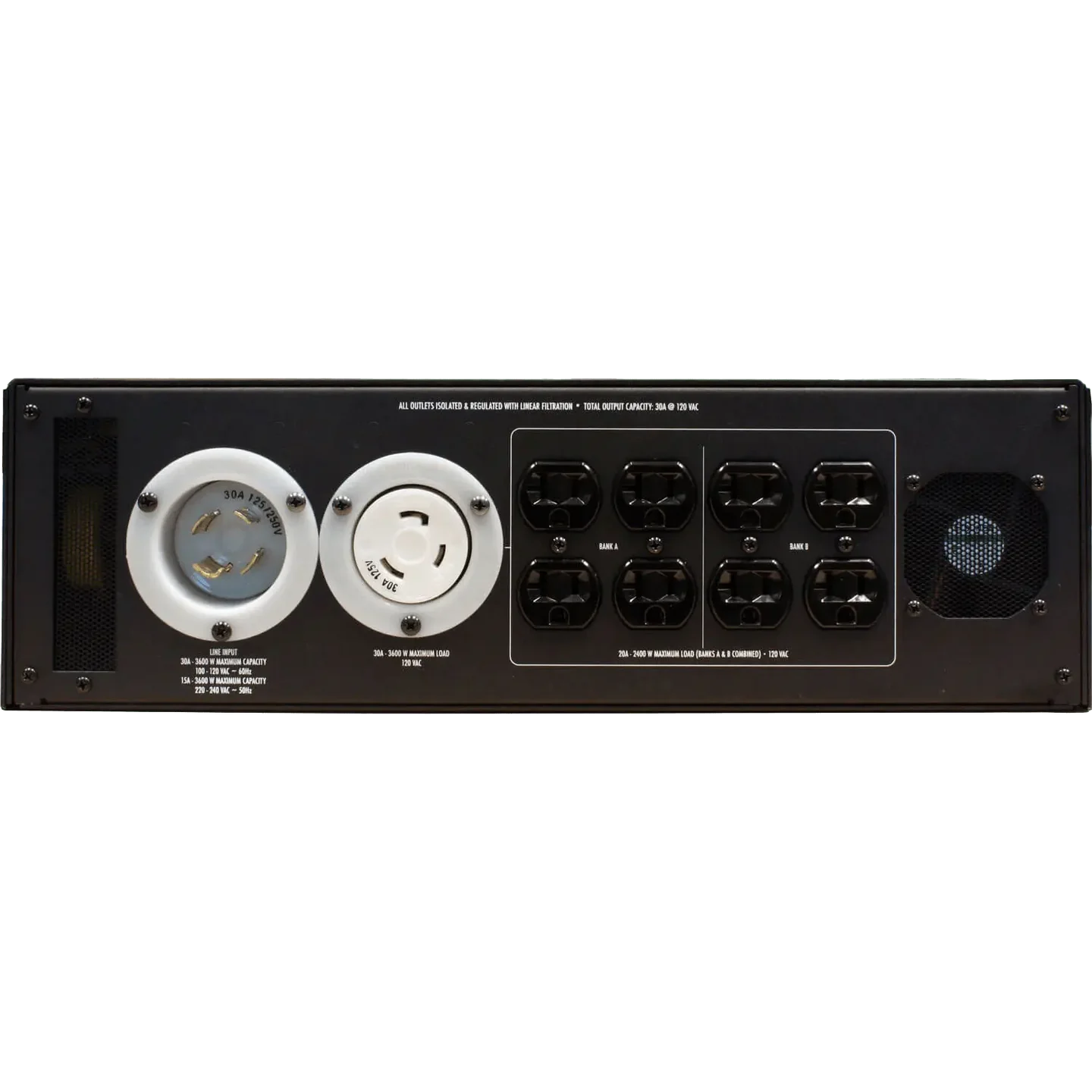

Outlet Descriptions: All 11 outlets regulated, protected, and filtered. Rear panel: (8) 20 amp outlets and (1) 30 amp outlet. 2 front panel 20 amp convenience outlets
Rack Mountable: Yes
Rack Ears Included: Yes

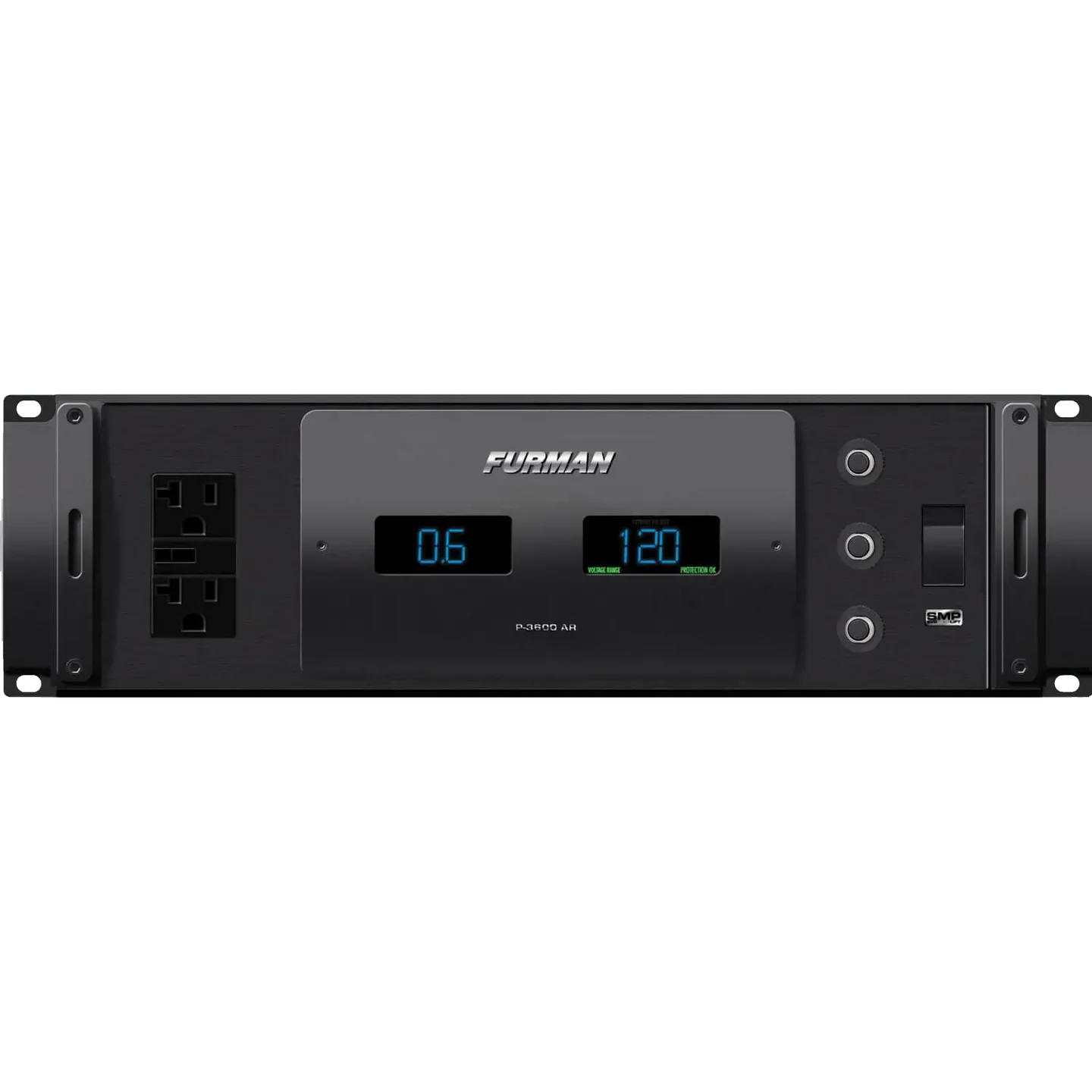

Front Panel Meter(s): LED voltmeter displays incoming line voltage, LED ammeter displays output current draw
Front Media Light(s): No
Control: Front panel On/Off switch, Outlet bank reset buttons
Voltage Regulation: Regulation capture range: (LOW) 88-133 VAC @ 50/60Hz, (HIGH) 170-265 VAC @ 50/60Hz
Compliance: cTUVus
USB Charging: N/A
Low Voltage Trigger: N/A
AC Power Cord: L-14 male twistlock inlet (twistlock cable-mount connector included)
Dimensions: 19" W x 14.25" D x 5.25" H
Weight: 98 lbs
AC Protection Technology: Global True RMS Voltage Regulation, Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination
Over-Voltage Shutoff: 145 VAC Nominal (120VAC Input), 275 VAC Nominal (240VAC Input)
Maximum Current Rating: 30 Amps
Initial Clamping Level: 191V Peak @ 3,000 Amps
Filtration Technology: LiFT
Filtration Rating: 10 dB @ 10kHz, 40 dB @ 100kHz, 55 dB @ 500kHz
Signal Line Protection: No
UPC: 654061028215
