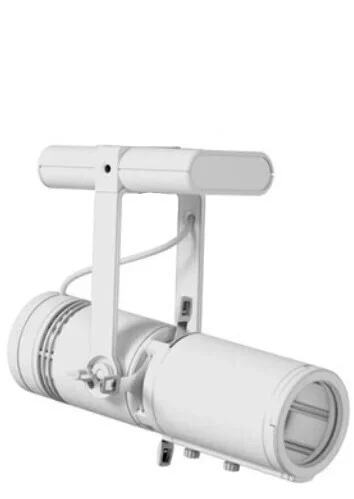

ETC Irideon FPZ Fixture Irideon FPZ Fixture (80+ CRI) 4000k

The ETC Irideon FPZ Fixture (80+ CRI, 4000K, DMX control, Portable) blends the acclaimed Source Four Mini LED platform with sophisticated industrial design to deliver elegant, high-quality lighting for museums, lobbies, retail environments, and theatres. Producing over 800 lumens—33% brighter than the Source Four Mini LED—the fixture features precision zoom optics, lockable three-plane shutters, and flexible dimming control via DMX or a local knob on the DataTrack adapter. Its compact, portable design allows easy installation while maintaining exceptional beam quality and versatility.

Applications

• Museums

• Retail stores

• Restaurants

• Hospitality and lobbies

• Theatres

Features

• Rugged die-cast aluminum fixture body

• 25–50° zoom optics for versatile beam shaping

• Uniquely efficient optical system

• Lockable three-plane shutters for precise beam control

• DMX control with built-in intensity trim

• DMX in/out via RJ45 ports on included driver box

• Optional accessory kit for Unistrut mounting

• 6’ power cable with NEMA 5-15P connector

• DMX or locally dimmed operation

• Front magnetic media holder for 66 mm color media or diffusion

• Tool-free beam adjustment and thermally insulated knobs

Specifications

Source

• LED: Cree XLamp® MT-G2 EasyWhite® LED

• Max lumens: 904

• Lumens per watt: 45.2

• L70 rating: 35,000 hours

Color

• Options: 2700 K / 3000 K / 4000 K / 5000 K

• CRI: 80+

Optical

• Beam angle: 25°–50°

• Pattern projection: Yes, E-size (37.5 mm)

• Camera flicker control: 1.2 kHz standard, 25 kHz DMX version

Control

• Protocols: DMX (Portable, Track, Canopy), 0–10 V (Canopy only), DALI (Canopy only)

• RDM configuration: Yes (DMX only)

• Local control: Yes, via rotary pots

Electrical

• Voltage: 100–120 V / 230–240 V (Portable/Track), 100–277 V (Canopy)

• Power cord length: 190 cm (75 in)

• Wattage: 20 W typical / 24 W max

• Inrush: DMX 120 V – 11 A, 240 V – 24 A, 277 V – 28 A

Thermal

• Operating temperature: 0°–40° C (32°–104° F)

• BTU/hour: 68.24 typical / 81.88 max


Physical

• Materials: Die-cast aluminum (A380 grade)

• Color options: Black, white, silver, custom

• Mounting: Track, Portable, Canopy

• IP rating: IP20

• Weight: Track 1.93 kg, Portable 2.55 kg, Canopy 2.58 kg

• Included accessories (portable): Steel yoke, C-clamp (not with CE version)

Warranty

• Fixture: 5 years

• LED array: 10 years
