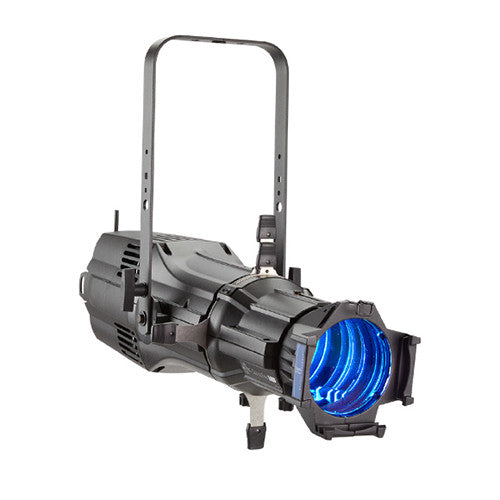

ETC CSSPOTVXTMVS ColorSource Spot VXT ETL with Shutter Barrel with Multiverse - Black

The ETC ColorSource Spot VXT ETL with Shutter Barrel and built‑in Multiverse wireless delivers rugged, high‑output LED performance for both indoor and outdoor applications. Engineered with a five‑color LED array that produces rich, saturated color and soft pastels from a single fixture, this profile spot is ideal for theatres, performance venues, architectural lighting, exhibition spaces and events requiring reliable, weather‑ready illumination. Its IP65‑rated housing protects against dust and water, making it suitable for outdoor use without compromising performance. Wireless DMX/RDM via Multiverse and NFC configuration simplify setup and control, while compatibility with existing Source Four lens tubes and accessories enhances flexibility in lighting design.

Features

• Five‑color LED array (red, green, blue, indigo, and lime) for broad colour mixing and vibrancy

• IP65‑rated housing for outdoor protection

• Multiverse wireless DMX/RDM with NFC configuration

• Compatible with Source Four lens tubes and accessories

• powerCON® TRUE1® TOP connectors and DMX/RDM in/thru (5‑pin XLR)

• Optically calibrated LEDs with LED droop compensation

• Tour‑ready aluminium housing and included hanging yoke

• 15‑bit virtual dimming engine for smooth fades and colour control

Specifications

Light Source

• LEDs: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs

• Maximum output: ~8,896 lumens

• LED lifespan: ~54,000 hours

Color System

• Five‑colour mixing: red, green, blue, indigo, lime

• Calibrated array with no red shift

Optical

• Beam angle: 5–90° with swappable lens tubes

• Compatible with fixed‑field lens tubes when using shutter barrel

• Gate size: 80 mm

Control & Connectivity

• Protocols: DMX512, RDM and Multiverse wireless

• NFC configuration via mobile device

• 15‑bit virtual dimming engine

• Onboard presets and sequences supported

Electrical

• Input voltage: 100–240 VAC, 50/60 Hz

• Power consumption: ~236–241 W

• powerCON TRUE1 TOP power in and thru

Physical

• Housing: IP65‑rated, tour‑ready aluminium

• Mounting: Hanging yoke included

• Shutter barrel installed (fixed lens configuration)

• Colour: White

• Weight: ~8.6 kg (19 lb)

Environmental & Compliance

• Suitable for outdoor venues and adverse environments (IP65)

• Meets CE, UKCA and cULus standards

• Typical warranty: 5 years on fixture; 10 years on LED array
