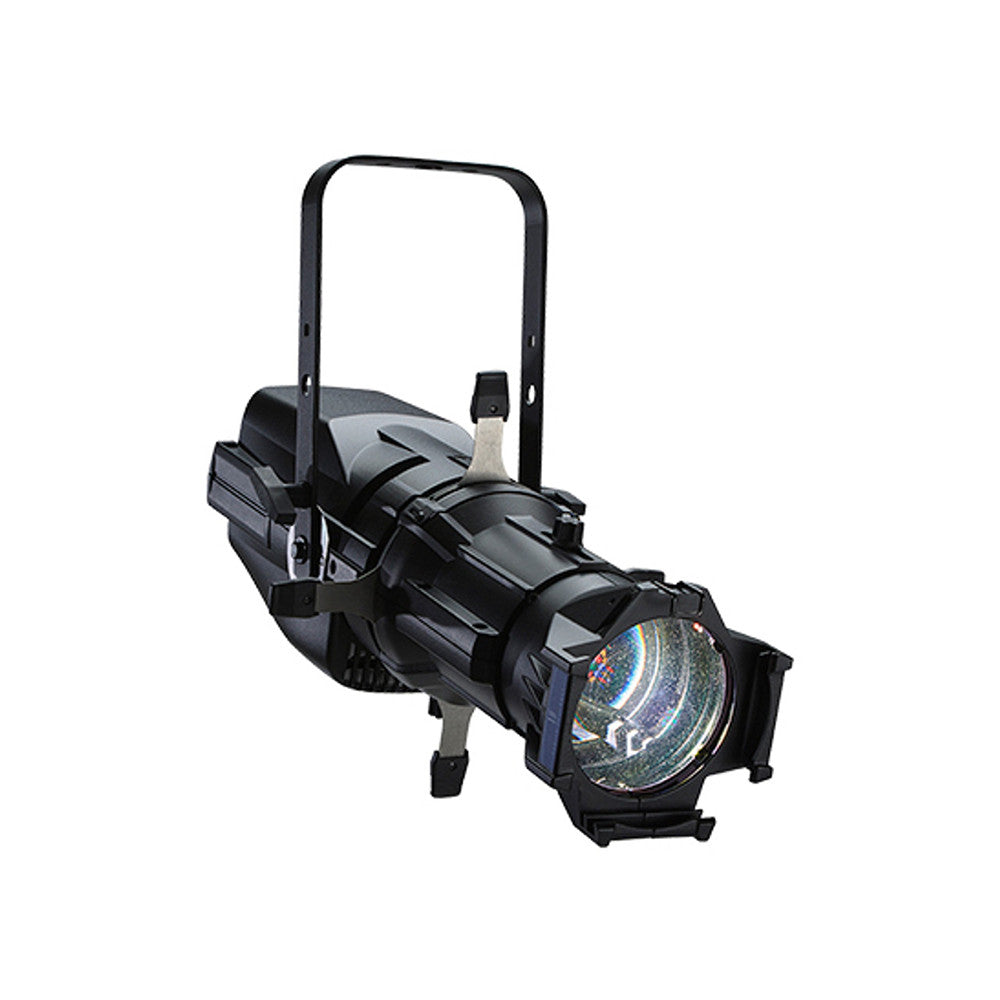

ETC CSSPOTVMV ColorSource Spot V, ETL, light engine only, with Multiverse, black

The ETC ColorSource Spot V light engine delivers powerful, professional-grade LED performance in a compact and versatile fixture designed for modern stage and event lighting. Equipped with advanced Multiverse wireless DMX/RDM technology and NFC configuration, it allows seamless setup and control without complex wiring. Its five-color LED array produces rich, vibrant colors and smooth, consistent output, making it ideal for theatres, studios, and live productions. Built with a durable, tour-ready metal housing and precise optical calibration, this fixture ensures reliability and accuracy in demanding environments. Designed as a light engine, it can be paired with various adapters to transform into a Fresnel or cyc light, offering maximum flexibility for lighting professionals.

Features

• Five-color LED array (RGB indigo lime)

• Multiverse wireless DMX/RDM control

• NFC configuration via mobile app

• Simple seven-segment user interface

• DMX/RDM in and thru (5-pin XLR)

• powerCON TRUE1 TOP power connection

• LED droop compensation technology

• Optically calibrated for consistent output

• Durable, tour-ready metal housing

• Compatible with Fresnel and CYC adapters

Specifications

Light Source

• 60 Lumileds LUXEON LEDs

• Max output: 9,498 lumens

• Efficacy: 48 lumens per watt

• LED lifespan (L70): 54,000 hours

Color System

• Colors: Red, Green, Blue, Indigo, Lime

• Calibrated color mixing

• No red shift

Optical

• Beam angle: 5°–90° (with lens tubes)

• Pattern projection supported

• Gate size: 80 mm

Control

• Protocols: DMX512 / RDM

• Wireless: Multiverse DMX/RDM

• UI: 7-segment display, 3-button interface

• Onboard presets: 12

• Onboard sequences: 5

Wireless

• Frequency: 2.4–2.48 GHz

• Range: up to 500 m line-of-sight

• Broadcast power: 100 mW

Electrical

• Voltage: 100–240V AC, 50/60 Hz

• Power consumption: ~197W

• Power connection: powerCON TRUE1 TOP

Physical

• Housing: Die-cast metal

• IP rating: IP20

• Weight: approx. 5.9–7 kg (without lens)

• Mounting: Yoke included

Environmental

• Operating temperature: 0°C to 40°C

• Cooling: Fan-cooled system
