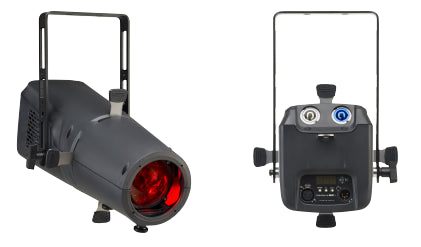

ETC CSSPOTJR2550-1 ColorSource Spot jr, Original, white, ETL

The ETC ColorSource Spot jr (Original) in white is a compact, professional LED spot luminaire that brings rich, vibrant colour mixing and smooth zoom control to small stages, studios, event spaces, and rental applications. Featuring a calibrated four‑colour LED array, it delivers up to 5,700 lumens of bright output from a lightweight, easy‑to‑hang enclosure, giving designers a powerful option for front and side lighting in tight spaces. The built‑in 25°–50° zoom adapts effortlessly between narrow highlights and broad washes, while intuitive onboard DMX/RDM control and a simple seven‑segment interface make setup and adjustment straightforward. With reliable thermal management and ETC’s colour integrity technology, the colours you choose in rehearsal stay true on stage — plus industry‑leading warranties offer long‑term confidence.

Features

• Calibrated four‑colour RGB+lime LED array for rich colour mixing and accurate pastels

• Built‑in 25°–50° zoom for flexible beam shaping without lenses

• Simple seven‑segment user interface with easy navigation

• DMX512/RDM in and thru (5‑pin XLR) for standard lighting control

• powerCON® TRUE1 power in and thru for robust power connectivity

• Optically calibrated LEDs with droop compensation for consistent colour over time

• Portable and lightweight design (~5.4 kg / 12 lb) for easy rigging and transport

• Pattern/gobo projection capable (M‑size)

Specifications

Light Source

• LEDs: 52 Lumileds LUXEON® C LEDs

• Max output: ~5,708 lumens

• Max lumens per watt: ~44.8

• L70 LED lifespan: > 54,000 hours

Colour & Optics

• Colour system: Red, Green, Blue, Lime (Original array)

• Calibrated LED array, no red shift

• Beam angle: Built‑in zoom 25°–50°

• Aperture size: ~6.25″–14″

• Gobo/pattern projection support: M‑size (66 mm OD, 48 mm ID)

• Camera flicker control: 1,200 Hz default / 25,000 Hz via RDM

Control

• Protocols: DMX512, RDM

• User interface: Seven‑segment display with three‑button navigation

• Onboard presets: Yes (12)

• Onboard sequences: Yes (5)

• Virtual dimming: 15‑bit

Electrical

• Voltage: 100–240 VAC, 50/60 Hz

• Power connection: powerCON TRUE1 in and thru

• Typical power consumption: ~162–166 W

• Inrush: 35 A @ 120 V / 49 A @ 240 V (first half cycle)

Physical

• Housing: ABS plastic, white finish

• IP rating: IP20 (indoor)

• Weight: ~5.4 kg (12 lb)

• Mounting: Yoke included

Environmental

• Operating temperature: 0 °C–40 °C (32 °F–104 °F)
